Make fragments

The first step of the scene reconstruction system is to create fragments from short RGBD sequences.

Input arguments

The script runs with python run_system.py [config] --make. In [config], ["path_dataset"] should have subfolders image and depth to store the color images and depth images respectively. We assume the color images and the depth images are synchronized and registered. In [config], the optional argument ["path_intrinsic"] specifies the path to a json file that stores the camera intrinsic matrix (See Read camera intrinsic for details). If it is not given, the PrimeSense factory setting is used instead.

Register RGBD image pairs

46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76

                    o3d.pipelines.odometry.RGBDOdometryJacobianFromHybridTerm(),
                    option)
                return [success, trans, info]
        return [False, np.identity(4), np.identity(6)]
    else:
        odo_init = np.identity(4)
        [success, trans, info] = o3d.pipelines.odometry.compute_rgbd_odometry(
            source_rgbd_image, target_rgbd_image, intrinsic, odo_init,
            o3d.pipelines.odometry.RGBDOdometryJacobianFromHybridTerm(), option)
        return [success, trans, info]


def make_posegraph_for_fragment(path_dataset, sid, eid, color_files,
                                depth_files, fragment_id, n_fragments,
                                intrinsic, with_opencv, config):
    o3d.utility.set_verbosity_level(o3d.utility.VerbosityLevel.Error)
    pose_graph = o3d.pipelines.registration.PoseGraph()
    trans_odometry = np.identity(4)
    pose_graph.nodes.append(
        o3d.pipelines.registration.PoseGraphNode(trans_odometry))
    for s in range(sid, eid):
        for t in range(s + 1, eid):
            # odometry
            if t == s + 1:
                print(
                    "Fragment %03d / %03d :: RGBD matching between frame : %d and %d"
                    % (fragment_id, n_fragments - 1, s, t))
                [success, trans,
                 info] = register_one_rgbd_pair(s, t, color_files, depth_files,
                                                intrinsic, with_opencv, config)

The function reads a pair of RGBD images and registers the source_rgbd_image to the target_rgbd_image. The Open3D function compute_rgbd_odometry is called to align the RGBD images. For adjacent RGBD images, an identity matrix is used as the initialization. For non-adjacent RGBD images, wide baseline matching is used as the initialization. In particular, the function pose_estimation computes OpenCV ORB feature to match sparse features over wide baseline images, then performs 5-point RANSAC to estimate a rough alignment, which is used as the initialization of compute_rgbd_odometry.

Multiway registration

 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123

                trans_odometry = np.dot(trans, trans_odometry)
                trans_odometry_inv = np.linalg.inv(trans_odometry)
                pose_graph.nodes.append(
                    o3d.pipelines.registration.PoseGraphNode(
                        trans_odometry_inv))
                pose_graph.edges.append(
                    o3d.pipelines.registration.PoseGraphEdge(s - sid,
                                                             t - sid,
                                                             trans,
                                                             info,
                                                             uncertain=False))

            # keyframe loop closure
            if s % config['n_keyframes_per_n_frame'] == 0 \
                    and t % config['n_keyframes_per_n_frame'] == 0:
                print(
                    "Fragment %03d / %03d :: RGBD matching between frame : %d and %d"
                    % (fragment_id, n_fragments - 1, s, t))
                [success, trans,
                 info] = register_one_rgbd_pair(s, t, color_files, depth_files,
                                                intrinsic, with_opencv, config)
                if success:
                    pose_graph.edges.append(
                        o3d.pipelines.registration.PoseGraphEdge(
                            s - sid, t - sid, trans, info, uncertain=True))
    o3d.io.write_pose_graph(
        join(path_dataset, config["template_fragment_posegraph"] % fragment_id),
        pose_graph)


def integrate_rgb_frames_for_fragment(color_files, depth_files, fragment_id,
                                      n_fragments, pose_graph_name, intrinsic,
                                      config):
    pose_graph = o3d.io.read_pose_graph(pose_graph_name)
    volume = o3d.pipelines.integration.ScalableTSDFVolume(
        voxel_length=config["tsdf_cubic_size"] / 512.0,
        sdf_trunc=0.04,
        color_type=o3d.pipelines.integration.TSDFVolumeColorType.RGB8)
    for i in range(len(pose_graph.nodes)):
        i_abs = fragment_id * config['n_frames_per_fragment'] + i
        print(
            "Fragment %03d / %03d :: integrate rgbd frame %d (%d of %d)." %
            (fragment_id, n_fragments - 1, i_abs, i + 1, len(pose_graph.nodes)))
        rgbd = read_rgbd_image(color_files[i_abs], depth_files[i_abs], False,
                               config)
        pose = pose_graph.nodes[i].pose
        volume.integrate(rgbd, intrinsic, np.linalg.inv(pose))

This script uses the technique demonstrated in Multiway registration. The function make_posegraph_for_fragment builds a pose graph for multiway registration of all RGBD images in this sequence. Each graph node represents an RGBD image and its pose which transforms the geometry to the global fragment space. For efficiency, only key frames are used.

Once a pose graph is created, multiway registration is performed by calling the function optimize_posegraph_for_fragment.

51
52
53
54
55
56
57
58
59
60
61
62
63
    pose_graph = o3d.io.read_pose_graph(pose_graph_name)
            preference_loop_closure = \
            config["preference_loop_closure_registration"])


def optimize_posegraph_for_refined_scene(path_dataset, config):
    pose_graph_name = join(path_dataset, config["template_refined_posegraph"])
    pose_graph_optimized_name = join(
        path_dataset, config["template_refined_posegraph_optimized"])
    run_posegraph_optimization(pose_graph_name, pose_graph_optimized_name,
            max_correspondence_distance = config["voxel_size"] * 1.4,
            preference_loop_closure = \
            config["preference_loop_closure_registration"])

This function calls global_optimization to estimate poses of the RGBD images.

Make a fragment

124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146

    mesh.compute_vertex_normals()
    return mesh


def make_pointcloud_for_fragment(path_dataset, color_files, depth_files,
                                 fragment_id, n_fragments, intrinsic, config):
    mesh = integrate_rgb_frames_for_fragment(
        color_files, depth_files, fragment_id, n_fragments,
        join(path_dataset,
             config["template_fragment_posegraph_optimized"] % fragment_id),
        intrinsic, config)
    pcd = o3d.geometry.PointCloud()
    pcd.points = mesh.vertices
    pcd.colors = mesh.vertex_colors
    pcd_name = join(path_dataset,
                    config["template_fragment_pointcloud"] % fragment_id)
    o3d.io.write_point_cloud(pcd_name, pcd, False, True)


def process_single_fragment(fragment_id, color_files, depth_files, n_files,
                            n_fragments, config):
    if config["path_intrinsic"]:

Once the poses are estimates, RGBD integration is used to reconstruct a colored fragment from each RGBD sequence.

Batch processing

181
182
183
184
185

    else:
        for fragment_id in range(n_fragments):
            process_single_fragment(fragment_id, color_files, depth_files,
                                    n_files, n_fragments, config)

The main function calls each individual function explained above.

Results

Fragment 000 / 013 :: RGBD matching between frame : 0 and 1
Fragment 000 / 013 :: RGBD matching between frame : 0 and 5
Fragment 000 / 013 :: RGBD matching between frame : 0 and 10
Fragment 000 / 013 :: RGBD matching between frame : 0 and 15
Fragment 000 / 013 :: RGBD matching between frame : 0 and 20
:
Fragment 000 / 013 :: RGBD matching between frame : 95 and 96
Fragment 000 / 013 :: RGBD matching between frame : 96 and 97
Fragment 000 / 013 :: RGBD matching between frame : 97 and 98
Fragment 000 / 013 :: RGBD matching between frame : 98 and 99

The following is a log from optimize_posegraph_for_fragment.

[GlobalOptimizationLM] Optimizing PoseGraph having 100 nodes and 195 edges.
Line process weight : 389.309502
[Initial     ] residual : 3.223357e+05, lambda : 1.771814e+02
[Iteration 00] residual : 1.721845e+04, valid edges : 157, time : 0.022 sec.
[Iteration 01] residual : 1.350251e+04, valid edges : 168, time : 0.017 sec.
:
[Iteration 32] residual : 9.779118e+03, valid edges : 179, time : 0.013 sec.
Current_residual - new_residual < 1.000000e-06 * current_residual
[GlobalOptimizationLM] total time : 0.519 sec.
[GlobalOptimizationLM] Optimizing PoseGraph having 100 nodes and 179 edges.
Line process weight : 398.292104
[Initial     ] residual : 5.120047e+03, lambda : 2.565362e+02
[Iteration 00] residual : 5.064539e+03, valid edges : 179, time : 0.014 sec.
[Iteration 01] residual : 5.037665e+03, valid edges : 178, time : 0.015 sec.
:
[Iteration 11] residual : 5.017307e+03, valid edges : 177, time : 0.013 sec.
Current_residual - new_residual < 1.000000e-06 * current_residual
[GlobalOptimizationLM] total time : 0.197 sec.
CompensateReferencePoseGraphNode : reference : 0

The following is a log from integrate_rgb_frames_for_fragment.

Fragment 000 / 013 :: integrate rgbd frame 0 (1 of 100).
Fragment 000 / 013 :: integrate rgbd frame 1 (2 of 100).
Fragment 000 / 013 :: integrate rgbd frame 2 (3 of 100).
:
Fragment 000 / 013 :: integrate rgbd frame 97 (98 of 100).
Fragment 000 / 013 :: integrate rgbd frame 98 (99 of 100).
Fragment 000 / 013 :: integrate rgbd frame 99 (100 of 100).

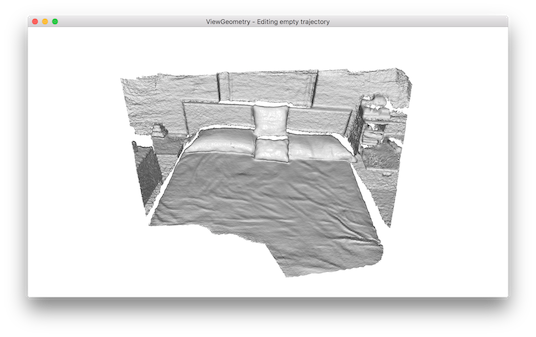

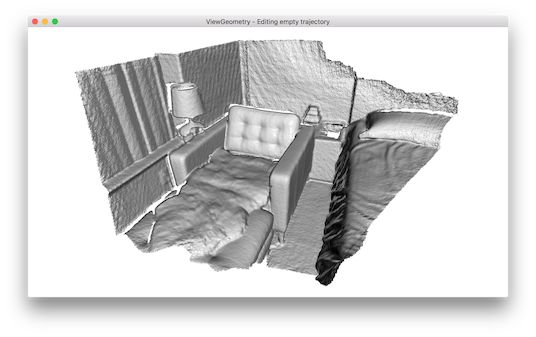

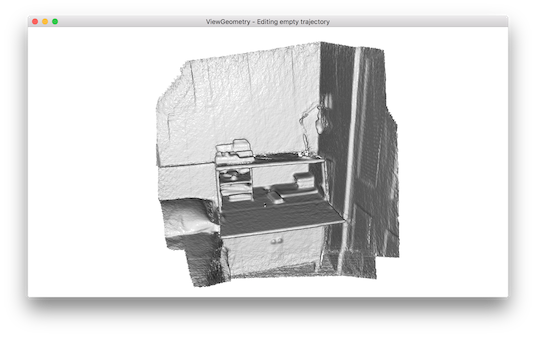

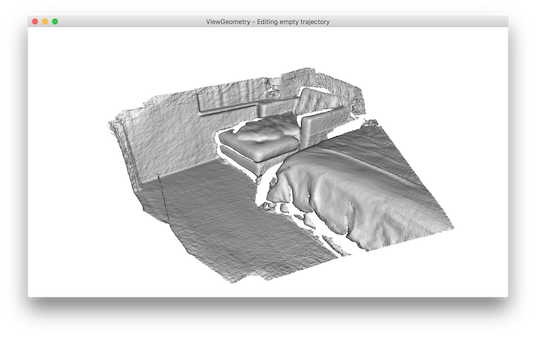

The following images show some of the fragments made by this script.

../../_images/fragment_0.png ../../_images/fragment_1.png ../../_images/fragment_2.png ../../_images/fragment_3.png
