Open3D (C++ API)  0.11.0
Public Member Functions | Protected Member Functions | Protected Attributes
open3d::visualization::glsl::PickingShader Class Referenceabstract

#include <PickingShader.h>

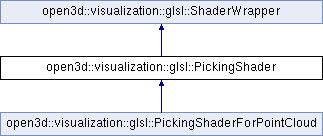

Inheritance diagram for open3d::visualization::glsl::PickingShader:
open3d::visualization::glsl::ShaderWrapper open3d::visualization::glsl::PickingShaderForPointCloud

Public Member Functions

 ~PickingShader () override

- Public Member Functions inherited from open3d::visualization::glsl::ShaderWrapper
virtual ~ShaderWrapper ()

 ShaderWrapper (const ShaderWrapper &)=delete

ShaderWrapper & operator= (const ShaderWrapper &)=delete

bool Render (const geometry::Geometry &geometry, const RenderOption &option, const ViewControl &view)

void InvalidateGeometry ()

const std::string & GetShaderName () const

void PrintShaderWarning (const std::string &message) const


Protected Member Functions

 PickingShader (const std::string &name)

bool Compile () final

void Release () final

bool BindGeometry (const geometry::Geometry &geometry, const RenderOption &option, const ViewControl &view) final

bool RenderGeometry (const geometry::Geometry &geometry, const RenderOption &option, const ViewControl &view) final

void UnbindGeometry () final

virtual bool PrepareRendering (const geometry::Geometry &geometry, const RenderOption &option, const ViewControl &view)=0

virtual bool PrepareBinding (const geometry::Geometry &geometry, const RenderOption &option, const ViewControl &view, std::vector< Eigen::Vector3f > &points, std::vector< float > &indices)=0

- Protected Member Functions inherited from open3d::visualization::glsl::ShaderWrapper
 ShaderWrapper (const std::string &name)

bool ValidateShader (GLuint shader_index)

bool ValidateProgram (GLuint program_index)

bool CompileShaders (const char *const vertex_shader_code, const char *const geometry_shader_code, const char *const fragment_shader_code)

void ReleaseProgram ()

void SetShaderName (const std::string &shader_name)


Protected Attributes

GLuint vertex_position_

GLuint vertex_position_buffer_

GLuint vertex_index_

GLuint vertex_index_buffer_

GLuint MVP_

- Protected Attributes inherited from open3d::visualization::glsl::ShaderWrapper
GLuint vertex_shader_

GLuint geometry_shader_

GLuint fragment_shader_

GLuint program_

GLenum draw_arrays_mode_ = GL_POINTS

GLsizei draw_arrays_size_ = 0

bool compiled_ = false

bool bound_ = false


Constructor & Destructor Documentation

◆ ~PickingShader()

open3d::visualization::glsl::PickingShader::~PickingShader ( )
inlineoverride

◆ PickingShader()

open3d::visualization::glsl::PickingShader::PickingShader ( const std::string &  name)
inlineprotected

Member Function Documentation

◆ BindGeometry()

bool open3d::visualization::glsl::PickingShader::BindGeometry ( const geometry::Geometry &  geometry,
const RenderOption &  option,
const ViewControl &  view
)
finalprotectedvirtual

Implements open3d::visualization::glsl::ShaderWrapper.

◆ Compile()

bool open3d::visualization::glsl::PickingShader::Compile ( )
finalprotectedvirtual

Function to compile shader In a derived class, this must be declared as final, and called from the constructor.

Implements open3d::visualization::glsl::ShaderWrapper.

◆ PrepareBinding()

virtual bool open3d::visualization::glsl::PickingShader::PrepareBinding ( const geometry::Geometry &  geometry,
const RenderOption &  option,
const ViewControl &  view,
std::vector< Eigen::Vector3f > &  points,
std::vector< float > &  indices
)
protectedpure virtual

Implemented in open3d::visualization::glsl::PickingShaderForPointCloud.

◆ PrepareRendering()

virtual bool open3d::visualization::glsl::PickingShader::PrepareRendering ( const geometry::Geometry &  geometry,
const RenderOption &  option,
const ViewControl &  view
)
protectedpure virtual

Implemented in open3d::visualization::glsl::PickingShaderForPointCloud.

◆ Release()

void open3d::visualization::glsl::PickingShader::Release ( )
finalprotectedvirtual

Function to release resource In a derived class, this must be declared as final, and called from the destructor.

Implements open3d::visualization::glsl::ShaderWrapper.

◆ RenderGeometry()

bool open3d::visualization::glsl::PickingShader::RenderGeometry ( const geometry::Geometry &  geometry,
const RenderOption &  option,
const ViewControl &  view
)
finalprotectedvirtual

Implements open3d::visualization::glsl::ShaderWrapper.

◆ UnbindGeometry()

void open3d::visualization::glsl::PickingShader::UnbindGeometry ( )
finalprotectedvirtual

Implements open3d::visualization::glsl::ShaderWrapper.

Field Documentation

◆ MVP_

GLuint open3d::visualization::glsl::PickingShader::MVP_
protected

◆ vertex_index_

GLuint open3d::visualization::glsl::PickingShader::vertex_index_
protected

◆ vertex_index_buffer_

GLuint open3d::visualization::glsl::PickingShader::vertex_index_buffer_
protected

◆ vertex_position_

GLuint open3d::visualization::glsl::PickingShader::vertex_position_
protected

◆ vertex_position_buffer_

GLuint open3d::visualization::glsl::PickingShader::vertex_position_buffer_
protected
The documentation for this class was generated from the following files:
