open3d::visualization::gui::RotationInteractor Class Reference

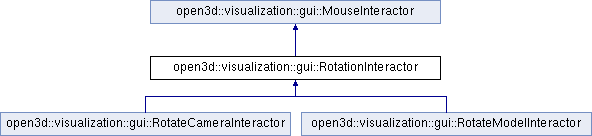

Inheritance diagram for open3d::visualization::gui::RotationInteractor:

Public Member Functions
rendering::MatrixInteractorLogic &	GetMatrixInteractor () override
void	SetCenterOfRotation (const Eigen::Vector3f &center)
void	Mouse (const MouseEvent &e) override
void	Key (const KeyEvent &e) override
Public Member Functions inherited from open3d::visualization::gui::MouseInteractor
virtual	~MouseInteractor ()=default
virtual bool	Tick (const TickEvent &e)

Protected Types
enum	State {   State::NONE, State::PAN, State::DOLLY, State::ROTATE_XY,   State::ROTATE_Z }

Protected Member Functions
void	SetInteractor (rendering::RotationInteractorLogic *r)

Protected Attributes
rendering::RotationInteractorLogic *	interactor_ = nullptr
int	mouse_down_x_ = 0
int	mouse_down_y_ = 0
State	state_ = State::NONE

Member Enumeration Documentation

State

enum open3d::visualization::gui::RotationInteractor::State

strongprotected

Enumerator
NONE
PAN
DOLLY
ROTATE_XY
ROTATE_Z

Member Function Documentation

GetMatrixInteractor()

rendering::MatrixInteractorLogic& open3d::visualization::gui::RotationInteractor::GetMatrixInteractor ( )

inlineoverridevirtual

Implements open3d::visualization::gui::MouseInteractor.

Key()

void open3d::visualization::gui::RotationInteractor::Key ( const KeyEvent &  e )

inlineoverridevirtual

Implements open3d::visualization::gui::MouseInteractor.

Mouse()

void open3d::visualization::gui::RotationInteractor::Mouse ( const MouseEvent &  e )

inlineoverridevirtual

Implements open3d::visualization::gui::MouseInteractor.

Reimplemented in open3d::visualization::gui::RotateCameraInteractor, and open3d::visualization::gui::RotateModelInteractor.

SetCenterOfRotation()

void open3d::visualization::gui::RotationInteractor::SetCenterOfRotation ( const Eigen::Vector3f &  center )

inline

SetInteractor()

void open3d::visualization::gui::RotationInteractor::SetInteractor ( rendering::RotationInteractorLogic *  r )

inlineprotected

Field Documentation

interactor_

rendering::RotationInteractorLogic* open3d::visualization::gui::RotationInteractor::interactor_ = nullptr

protected

mouse_down_x_

int open3d::visualization::gui::RotationInteractor::mouse_down_x_ = 0

protected

mouse_down_y_

int open3d::visualization::gui::RotationInteractor::mouse_down_y_ = 0

protected

state_

State open3d::visualization::gui::RotationInteractor::state_ = State::NONE

protected

---

The documentation for this class was generated from the following file:

• /home/ssheorey/Documents/Open3D/Code/Open3D/cpp/open3d/visualization/gui/SceneWidget.cpp (829c4e87 (Mon Oct 12 14:08:33 2020 -0700))
