open3d::visualization::glsl::ImageMaskShader Class Reference

#include <ImageMaskShader.h>

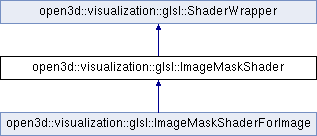

Inheritance diagram for open3d::visualization::glsl::ImageMaskShader:

Public Member Functions
	~ImageMaskShader () override
Public Member Functions inherited from open3d::visualization::glsl::ShaderWrapper
virtual	~ShaderWrapper ()
	ShaderWrapper (const ShaderWrapper &)=delete
ShaderWrapper &	operator= (const ShaderWrapper &)=delete
bool	Render (const geometry::Geometry &geometry, const RenderOption &option, const ViewControl &view)
void	InvalidateGeometry ()
const std::string &	GetShaderName () const
void	PrintShaderWarning (const std::string &message) const

Protected Member Functions
	ImageMaskShader (const std::string &name)
bool	Compile () final
void	Release () final
bool	BindGeometry (const geometry::Geometry &geometry, const RenderOption &option, const ViewControl &view) final
bool	RenderGeometry (const geometry::Geometry &geometry, const RenderOption &option, const ViewControl &view) final
void	UnbindGeometry () final
virtual bool	PrepareRendering (const geometry::Geometry &geometry, const RenderOption &option, const ViewControl &view)=0
virtual bool	PrepareBinding (const geometry::Geometry &geometry, const RenderOption &option, const ViewControl &view, geometry::Image &image)=0
Protected Member Functions inherited from open3d::visualization::glsl::ShaderWrapper
	ShaderWrapper (const std::string &name)
bool	ValidateShader (GLuint shader_index)
bool	ValidateProgram (GLuint program_index)
bool	CompileShaders (const char *const vertex_shader_code, const char *const geometry_shader_code, const char *const fragment_shader_code)
void	ReleaseProgram ()
void	SetShaderName (const std::string &shader_name)

Protected Attributes
GLuint	vertex_position_
GLuint	vertex_position_buffer_
GLuint	vertex_UV_
GLuint	vertex_UV_buffer_
GLuint	image_texture_
GLuint	image_texture_buffer_
GLuint	mask_color_
GLuint	mask_alpha_
gl_util::GLVector3f	mask_color_data_
GLfloat	mask_alpha_data_
Protected Attributes inherited from open3d::visualization::glsl::ShaderWrapper
GLuint	vertex_shader_ = 0
GLuint	geometry_shader_ = 0
GLuint	fragment_shader_ = 0
GLuint	program_ = 0
GLenum	draw_arrays_mode_ = GL_POINTS
GLsizei	draw_arrays_size_ = 0
bool	compiled_ = false
bool	bound_ = false

Constructor & Destructor Documentation

~ImageMaskShader()

open3d::visualization::glsl::ImageMaskShader::~ImageMaskShader ( )

inlineoverride

ImageMaskShader()

open3d::visualization::glsl::ImageMaskShader::ImageMaskShader ( const std::string &  name )

inlineprotected

Member Function Documentation

BindGeometry()

bool open3d::visualization::glsl::ImageMaskShader::BindGeometry ( const geometry::Geometry &  geometry, const RenderOption &  option, const ViewControl &  view  )

finalprotectedvirtual

Implements open3d::visualization::glsl::ShaderWrapper.

Compile()

bool open3d::visualization::glsl::ImageMaskShader::Compile ( )

finalprotectedvirtual

Function to compile shader In a derived class, this must be declared as final, and called from the constructor.

Implements open3d::visualization::glsl::ShaderWrapper.

PrepareBinding()

virtual bool open3d::visualization::glsl::ImageMaskShader::PrepareBinding ( const geometry::Geometry &  geometry, const RenderOption &  option, const ViewControl &  view, geometry::Image &  image  )

protectedpure virtual

Implemented in open3d::visualization::glsl::ImageMaskShaderForImage.

PrepareRendering()

virtual bool open3d::visualization::glsl::ImageMaskShader::PrepareRendering ( const geometry::Geometry &  geometry, const RenderOption &  option, const ViewControl &  view  )

protectedpure virtual

Implemented in open3d::visualization::glsl::ImageMaskShaderForImage.

Release()

void open3d::visualization::glsl::ImageMaskShader::Release ( )

finalprotectedvirtual

Function to release resource In a derived class, this must be declared as final, and called from the destructor.

Implements open3d::visualization::glsl::ShaderWrapper.

RenderGeometry()

bool open3d::visualization::glsl::ImageMaskShader::RenderGeometry ( const geometry::Geometry &  geometry, const RenderOption &  option, const ViewControl &  view  )

finalprotectedvirtual

Implements open3d::visualization::glsl::ShaderWrapper.

UnbindGeometry()

void open3d::visualization::glsl::ImageMaskShader::UnbindGeometry ( )

finalprotectedvirtual

Implements open3d::visualization::glsl::ShaderWrapper.

Field Documentation

image_texture_

GLuint open3d::visualization::glsl::ImageMaskShader::image_texture_

protected

image_texture_buffer_

GLuint open3d::visualization::glsl::ImageMaskShader::image_texture_buffer_

protected

mask_alpha_

GLuint open3d::visualization::glsl::ImageMaskShader::mask_alpha_

protected

mask_alpha_data_

GLfloat open3d::visualization::glsl::ImageMaskShader::mask_alpha_data_

protected

mask_color_

GLuint open3d::visualization::glsl::ImageMaskShader::mask_color_

protected

mask_color_data_

gl_util::GLVector3f open3d::visualization::glsl::ImageMaskShader::mask_color_data_

protected

vertex_position_

GLuint open3d::visualization::glsl::ImageMaskShader::vertex_position_

protected

vertex_position_buffer_

GLuint open3d::visualization::glsl::ImageMaskShader::vertex_position_buffer_

protected

vertex_UV_

GLuint open3d::visualization::glsl::ImageMaskShader::vertex_UV_

protected

vertex_UV_buffer_

GLuint open3d::visualization::glsl::ImageMaskShader::vertex_UV_buffer_

protected

---

The documentation for this class was generated from the following files:

• /home/runner/work/Open3D/Open3D/cpp/open3d/visualization/shader/ImageMaskShader.h (9238339 (Tue Mar 14 18:49:09 2023 -0700))
• /home/runner/work/Open3D/Open3D/cpp/open3d/visualization/shader/ImageMaskShader.cpp (9238339 (Tue Mar 14 18:49:09 2023 -0700))
