Customized visualization

The usage of Open3D convenient visualization functions draw_geometries and draw_geometries_with_custom_animation is straightforward. Everything can be done with the GUI. Press h inside the visualizer window to see helper information. Details see Visualization.

This tutorial focuses on more advanced functionalities to customize the behavior of the visualizer window. Please refer examples/Python/Advanced/customized_visualization.py to try the following examples.

Mimic draw_geometries() with Visualizer class

12
13
14
15
16
17
18
19
def custom_draw_geometry(pcd):
    # The following code achieves the same effect as:
    # draw_geometries([pcd])
    vis = Visualizer()
    vis.create_window()
    vis.add_geometry(pcd)
    vis.run()
    vis.destroy_window()

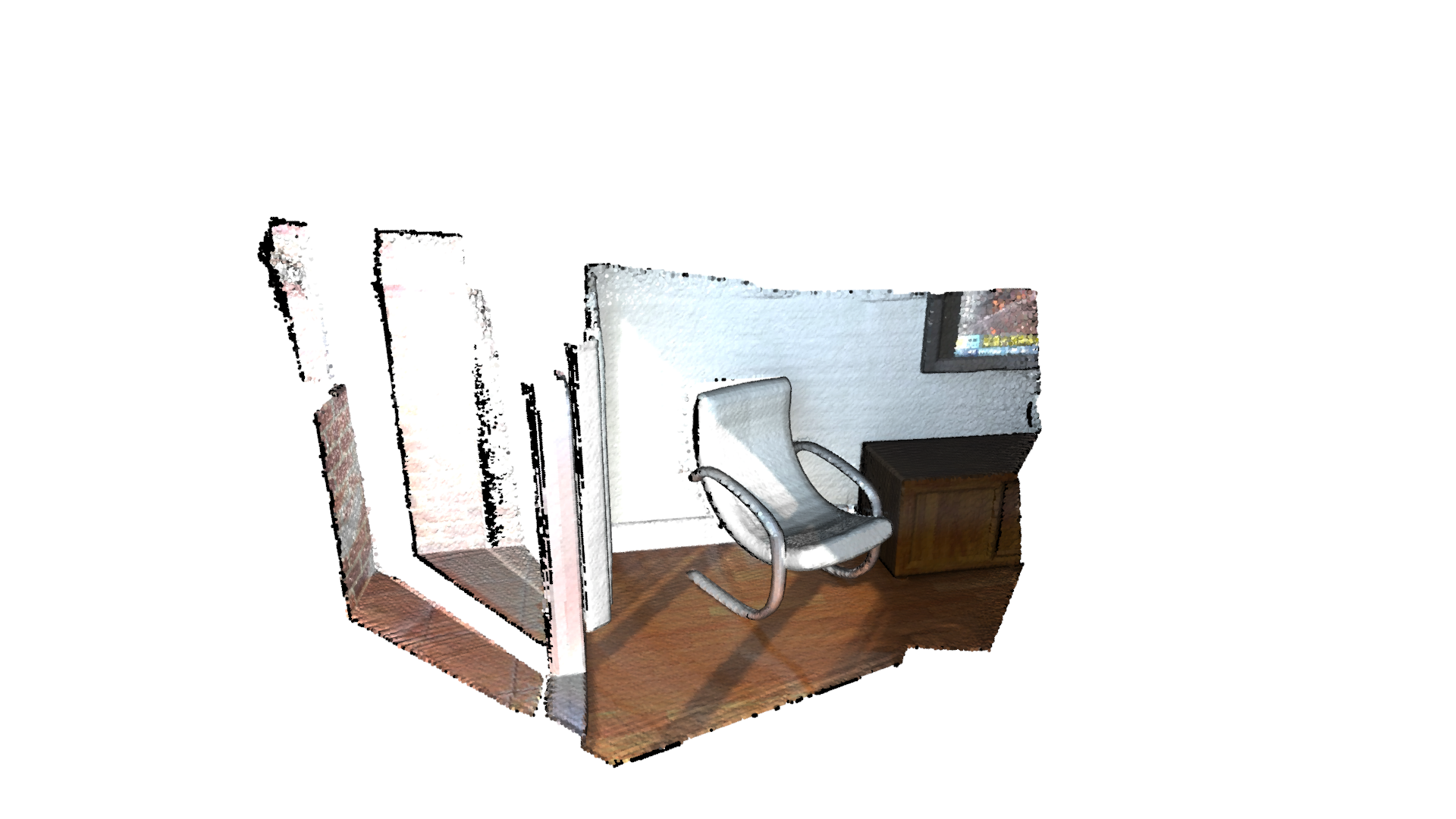

This function produces exactly the same functionality of the convenient function draw_geometries.

../../_images/custom.png

Class Visualizer has a couple of variables such as a ViewControl and a RenderOption. The following function reads a predefined RenderOption stored in a json file.

39
40
41
42
43
44
45
46
def custom_draw_geometry_load_option(pcd):
    vis = Visualizer()
    vis.create_window()
    vis.add_geometry(pcd)
    vis.get_render_option().load_from_json(
            "../../TestData/renderoption.json")
    vis.run()
    vis.destroy_window()

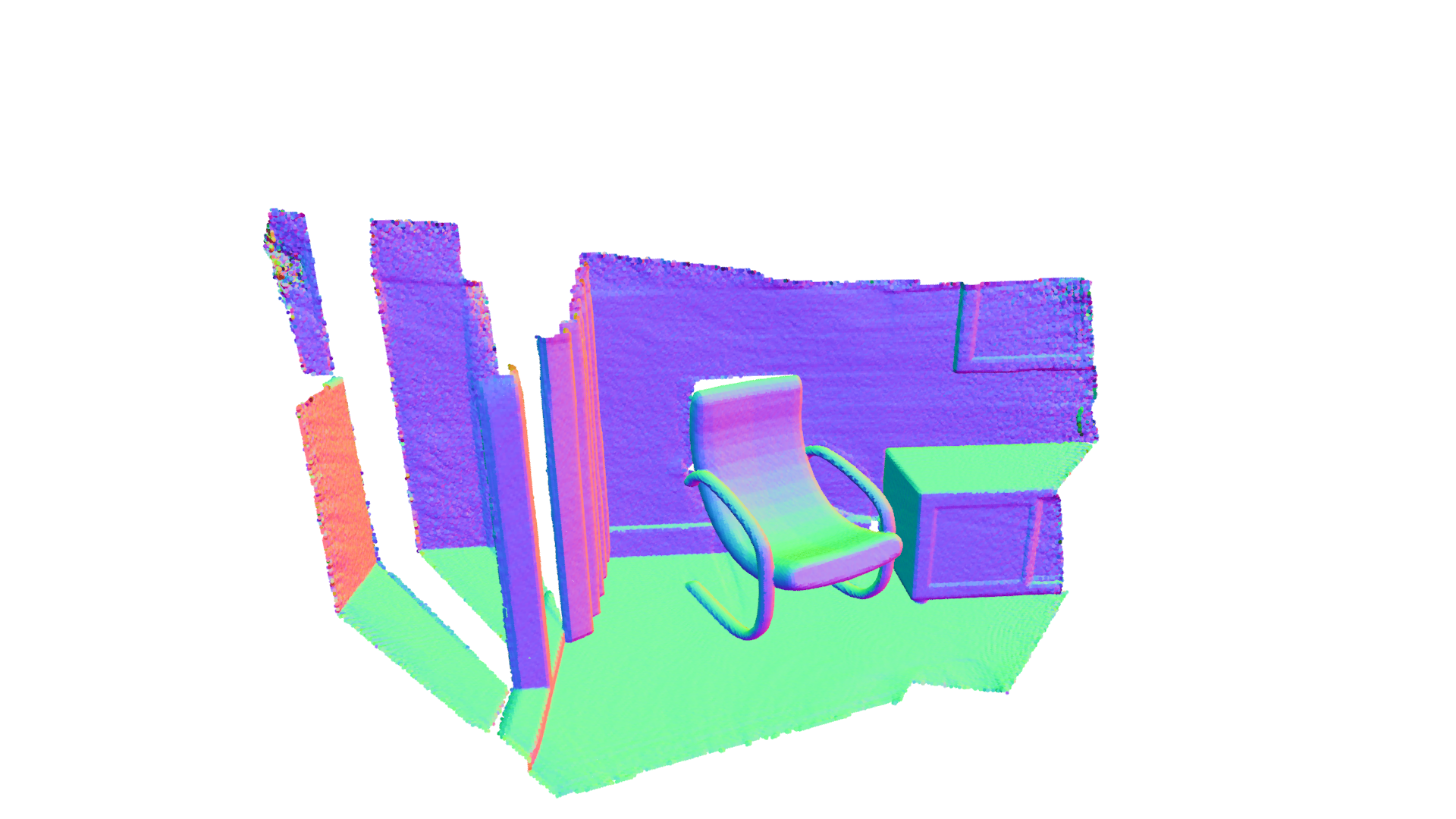

Outputs:

../../_images/normal.png

Change field of view

To change field of view of the camera, it is necessary to get an instance of visualizer control first. To modify modify field of view, use change_field_of_view.

21
22
23
24
25
26
27
28
29
30
def custom_draw_geometry_with_custom_fov(pcd, fov_step):
    vis = Visualizer()
    vis.create_window()
    vis.add_geometry(pcd)
    ctr = vis.get_view_control()
    print("Field of view (before changing) %.2f" % ctr.get_field_of_view())
    ctr.change_field_of_view(step = fov_step)
    print("Field of view (after changing) %.2f" % ctr.get_field_of_view())
    vis.run()
    vis.destroy_window()

The field of view can be set as [5,90] degree. Note that change_field_of_view adds specified FoV on the current FoV. By default, visualizer has 60 degrees of FoV. Calling the following code

custom_draw_geometry_with_custom_fov(pcd, 90.0)

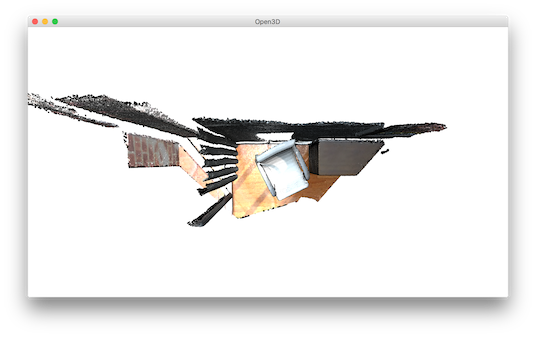

will add the specified 90 degrees to the default 60 degrees. As it exceeds maximum allowable FoV, this will set FoV as 90 degrees.

../../_images/fov_90.png

The following code

custom_draw_geometry_with_custom_fov(pcd, -90.0)

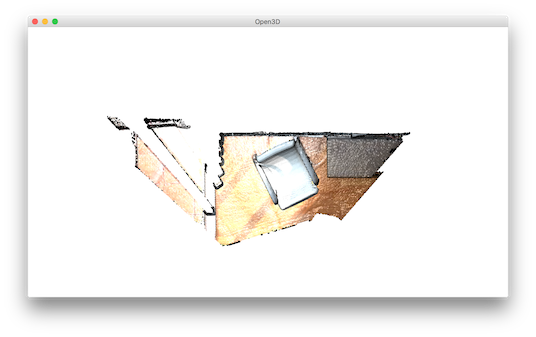

will make FoV as 5 degrees, because 60 - 90 = -30 is smaller than 5 degrees.

../../_images/fov_5.png

Use callback functions

32
33
34
35
36
37
def custom_draw_geometry_with_rotation(pcd):
    def rotate_view(vis):
        ctr = vis.get_view_control()
        ctr.rotate(10.0, 0.0)
        return False
    draw_geometries_with_animation_callback([pcd], rotate_view)

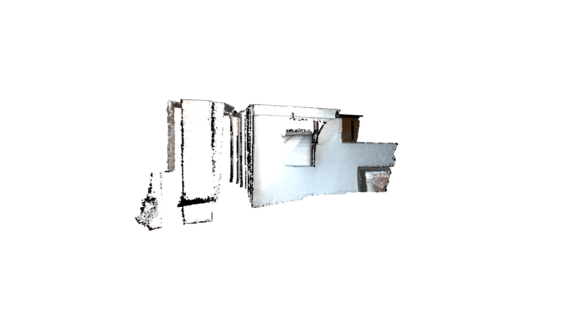

Function draw_geometries_with_animation_callback registers a Python callback function rotate_view as the idle function of the main loop. It rotates the view along the x-axis whenever the visualizer is idle. This defines an animation behavior.

../../_images/rotate_small.gif
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
def custom_draw_geometry_with_key_callback(pcd):
    def change_background_to_black(vis):
        opt = vis.get_render_option()
        opt.background_color = np.asarray([0, 0, 0])
        return False
    def load_render_option(vis):
        vis.get_render_option().load_from_json(
                "../../TestData/renderoption.json")
        return False
    def capture_depth(vis):
        depth = vis.capture_depth_float_buffer()
        plt.imshow(np.asarray(depth))
        plt.show()
        return False
    def capture_image(vis):
        image = vis.capture_screen_float_buffer()
        plt.imshow(np.asarray(image))
        plt.show()
        return False
    key_to_callback = {}
    key_to_callback[ord("K")] = change_background_to_black
    key_to_callback[ord("R")] = load_render_option
    key_to_callback[ord(",")] = capture_depth
    key_to_callback[ord(".")] = capture_image
    draw_geometries_with_key_callbacks([pcd], key_to_callback)

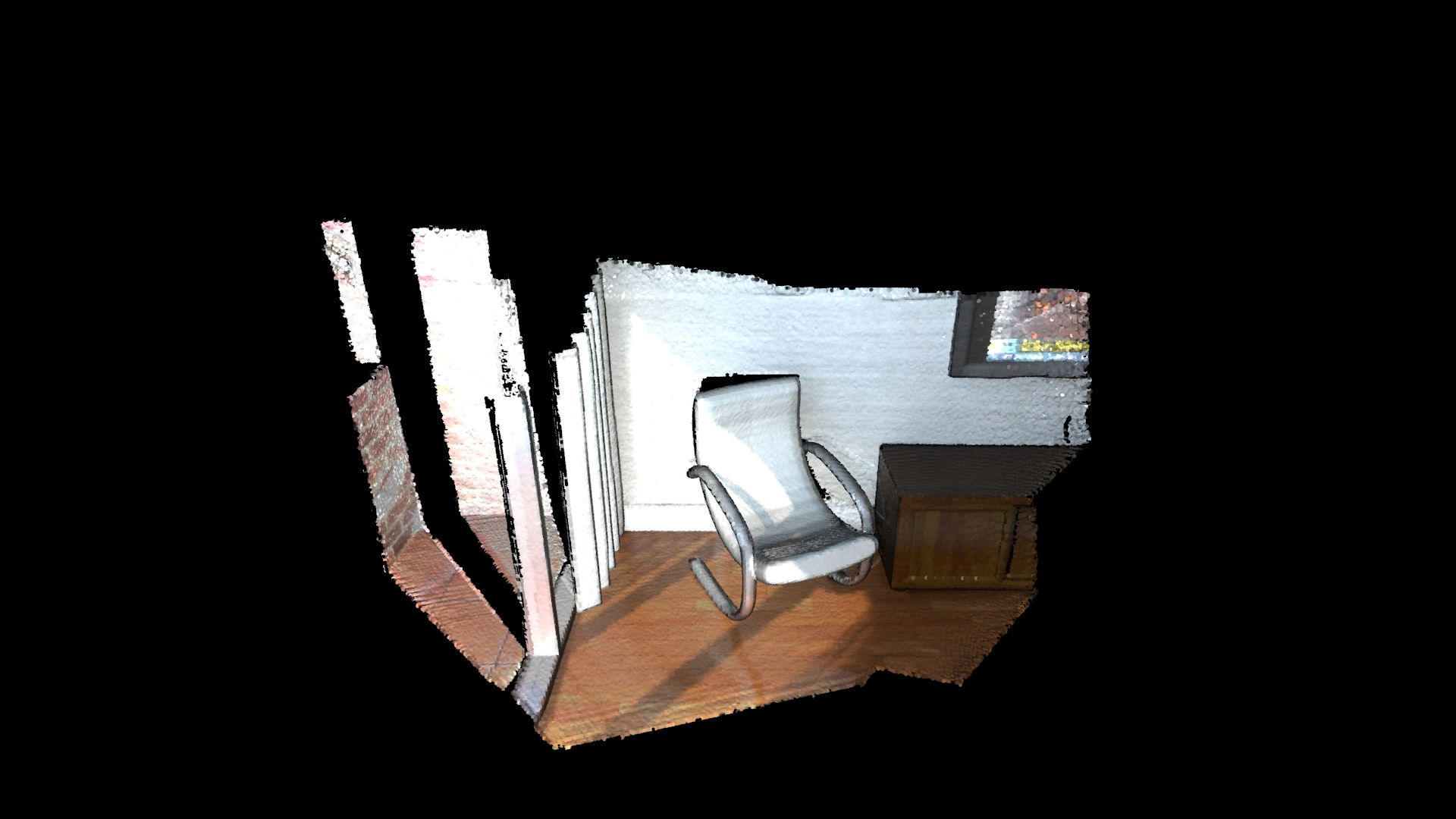

Callback functions can also be registered upon key press event. This script registered four keys. For example, pressing k changes the background color to black.

../../_images/key_k.png

Capture images in a customized animation

 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
def custom_draw_geometry_with_camera_trajectory(pcd):
    custom_draw_geometry_with_camera_trajectory.index = -1
    custom_draw_geometry_with_camera_trajectory.trajectory =\
            read_pinhole_camera_trajectory(
                    "../../TestData/camera_trajectory.json")
    custom_draw_geometry_with_camera_trajectory.vis = Visualizer()
    if not os.path.exists("../../TestData/image/"):
        os.makedirs("../../TestData/image/")
    if not os.path.exists("../../TestData/depth/"):
        os.makedirs("../../TestData/depth/")
    def move_forward(vis):
        # This function is called within the Visualizer::run() loop
        # The run loop calls the function, then re-render
        # So the sequence in this function is to:
        # 1. Capture frame
        # 2. index++, check ending criteria
        # 3. Set camera
        # 4. (Re-render)
        ctr = vis.get_view_control()
        glb = custom_draw_geometry_with_camera_trajectory
        if glb.index >= 0:
            print("Capture image {:05d}".format(glb.index))
            depth = vis.capture_depth_float_buffer(False)
            image = vis.capture_screen_float_buffer(False)
            plt.imsave("../../TestData/depth/{:05d}.png".format(glb.index),\
                    np.asarray(depth), dpi = 1)
            plt.imsave("../../TestData/image/{:05d}.png".format(glb.index),\
                    np.asarray(image), dpi = 1)
            #vis.capture_depth_image("depth/{:05d}.png".format(glb.index), False)
            #vis.capture_screen_image("image/{:05d}.png".format(glb.index), False)
        glb.index = glb.index + 1
        if glb.index < len(glb.trajectory.parameters):
            ctr.convert_from_pinhole_camera_parameters(glb.trajectory.parameters[glb.index])
        else:
            custom_draw_geometry_with_camera_trajectory.vis.\
                    register_animation_callback(None)
        return False
    vis = custom_draw_geometry_with_camera_trajectory.vis
    vis.create_window()
    vis.add_geometry(pcd)
    vis.get_render_option().load_from_json("../../TestData/renderoption.json")
    vis.register_animation_callback(move_forward)
    vis.run()
    vis.destroy_window()

This function reads a camera trajectory, then defines an animation function move_forward to travel through the camera trajectory. In this animation function, both color image and depth image are captured using Visualizer.capture_depth_float_buffer and Visualizer.capture_screen_float_buffer respectively. They are saved in files.

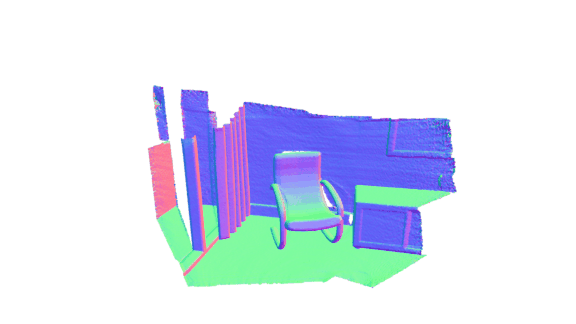

The captured image sequence:

../../_images/image_small.gif

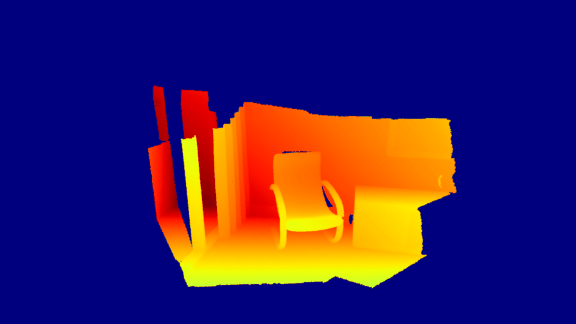

The captured depth sequence:

../../_images/depth_small.gif
