Color Map Optimization

Consider color mapping to the geometry reconstructed from depth cameras. As color and depth frames are not perfectly aligned, the texture mapping using color images is subject to results in blurred color map. Open3D provides color map optimization method proposed by [Zhou2014]. The following script shows an example of color map optimization.

Input

This code below reads color and depth image pairs and makes rgbd_image. Note that convert_rgb_to_intensity flag is False. This is to preserve 8-bit color channels instead of using single channel float type image.

It is always good practice to visualize RGBD image before applying it to color map optimization. debug_mode switch is for visualizing RGBD image.

[2]:
def sorted_alphanum(file_list_ordered):
    convert = lambda text: int(text) if text.isdigit() else text
    alphanum_key = lambda key: [convert(c) for c in re.split('([0-9]+)', key)]
    return sorted(file_list_ordered, key=alphanum_key)

def get_file_list(path, extension=None):
    if extension is None:
        file_list = [path + f for f in os.listdir(path) if os.path.isfile(join(path, f))]
    else:
        file_list = [
            path + f
            for f in os.listdir(path)
            if os.path.isfile(os.path.join(path, f)) and os.path.splitext(f)[1] == extension
        ]
    file_list = sorted_alphanum(file_list)
    return file_list
[3]:
path = o3dtut.download_fountain_dataset()
debug_mode = False

rgbd_images = []
depth_image_path = get_file_list(os.path.join(path, "depth/"),
                                 extension=".png")
color_image_path = get_file_list(os.path.join(path, "image/"),
                                 extension=".jpg")
assert (len(depth_image_path) == len(color_image_path))
for i in range(len(depth_image_path)):
    depth = o3d.io.read_image(os.path.join(depth_image_path[i]))
    color = o3d.io.read_image(os.path.join(color_image_path[i]))
    rgbd_image = o3d.geometry.RGBDImage.create_from_color_and_depth(
        color, depth, convert_rgb_to_intensity=False)
    if debug_mode:
        pcd = o3d.geometry.PointCloud.create_from_rgbd_image(
            rgbd_image,
            o3d.camera.PinholeCameraIntrinsic(
                o3d.camera.PinholeCameraIntrinsicParameters.
                PrimeSenseDefault))
        o3d.visualization.draw_geometries([pcd])
    rgbd_images.append(rgbd_image)
downloading fountain dataset
extract fountain dataset

The code below reads camera trajectory and mesh.

[4]:
camera = o3d.io.read_pinhole_camera_trajectory(
    os.path.join(path, "scene/key.log"))
mesh = o3d.io.read_triangle_mesh(
    os.path.join(path, "scene", "integrated.ply"))

To visualize how the camera poses are not good for color mapping, this code intentionally set the iteration number as 0, which means no optimization. color_map_optimization paints a mesh using corresponding RGBD images and camera poses. Without optimization, the texture map is blurred.

[5]:
# Before full optimization, let's just visualize texture map
# with given geometry, RGBD images, and camera poses.
option = o3d.color_map.ColorMapOptimizationOption()
option.maximum_iteration = 0
with o3d.utility.VerbosityContextManager(o3d.utility.VerbosityLevel.Debug) as cm:
    o3d.color_map.color_map_optimization(mesh, rgbd_images, camera, option)
[6]:
o3d.visualization.draw_geometries([mesh], zoom=0.5399,
                                  front=[0.0665, -0.1107, -0.9916],
                                  lookat=[0.7353, 0.6537, 1.0521],
                                  up=[0.0136, -0.9936, 0.1118])

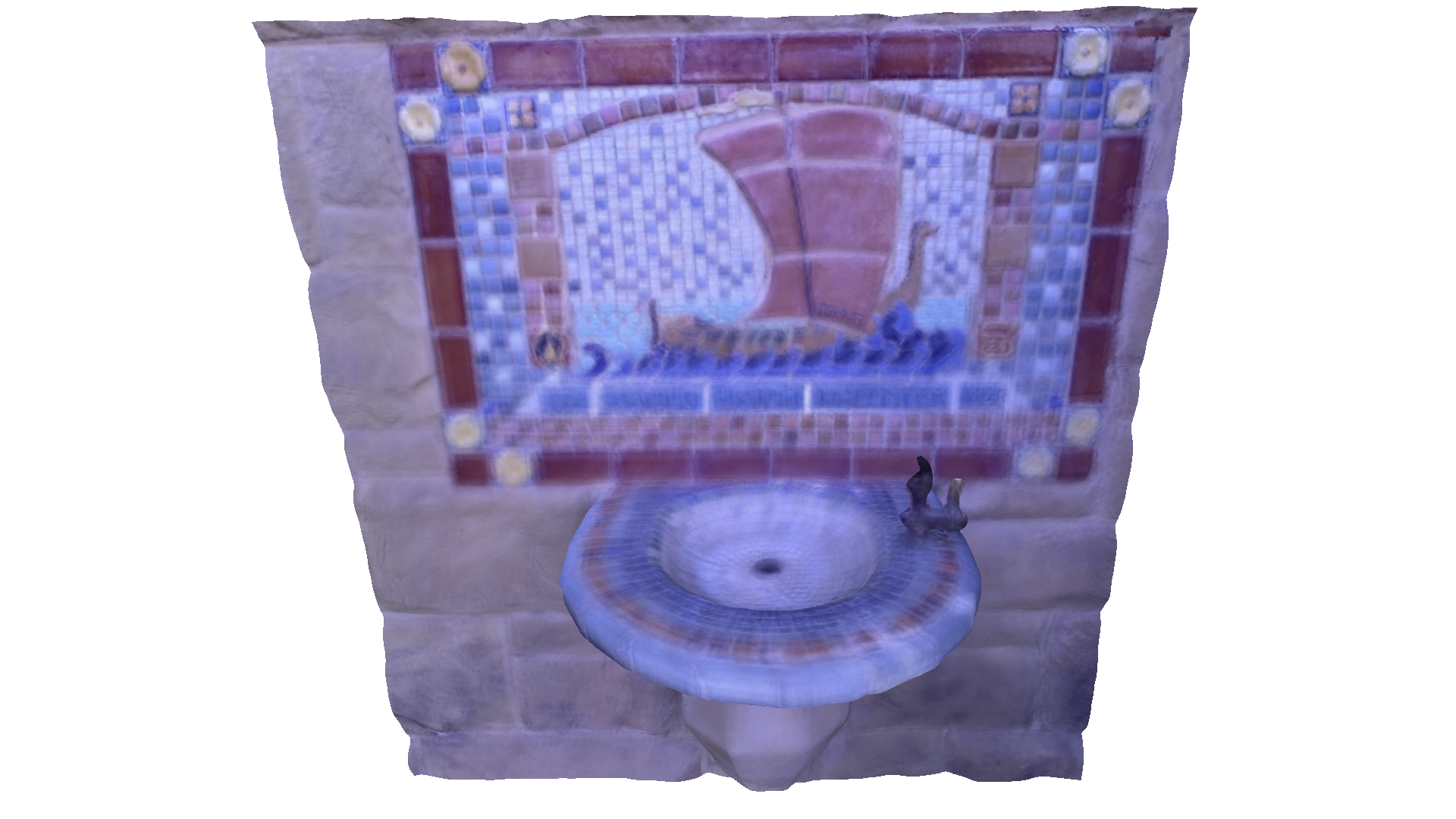

../../_images/tutorial_Advanced_color_map_optimization_9_0.png

Rigid Optimization

The next step is to optimize camera poses to get a sharp color map.

The code below sets maximum_iteration = 300 for actual iterations.

[7]:
# Optimize texture and save the mesh as texture_mapped.ply
# This is implementation of following paper
# Q.-Y. Zhou and V. Koltun,
# Color Map Optimization for 3D Reconstruction with Consumer Depth Cameras,
# SIGGRAPH 2014
option.maximum_iteration = 10 if is_travis else 300
option.non_rigid_camera_coordinate = False
with o3d.utility.VerbosityContextManager(o3d.utility.VerbosityLevel.Debug) as cm:
    o3d.color_map.color_map_optimization(mesh, rgbd_images, camera, option)
[8]:
o3d.visualization.draw_geometries([mesh], zoom=0.5399,
                                  front=[0.0665, -0.1107, -0.9916],
                                  lookat=[0.7353, 0.6537, 1.0521],
                                  up=[0.0136, -0.9936, 0.1118])

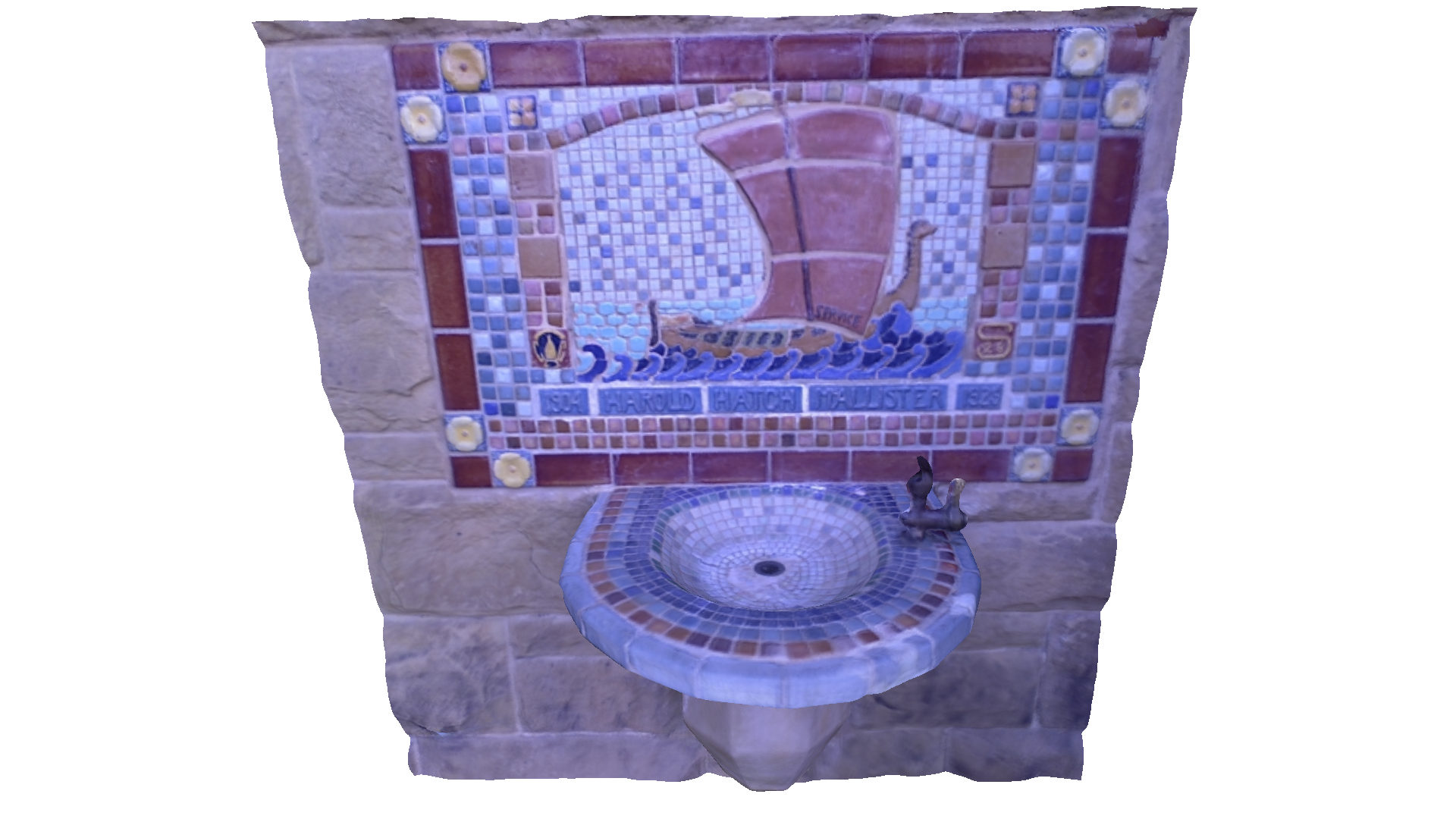

../../_images/tutorial_Advanced_color_map_optimization_12_0.png

The residual error implies inconsistency of image intensities. Lower residual leads better color map quality. By default, ColorMapOptimizationOption enables rigid optimization. It optimizes 6-dimentional pose of every cameras.

Non-rigid Optimization

For better alignment quality, there is an option for non-rigid optimization. To enable, simply add change option.non_rigid_camera_coordinate to True before calling color_map_optimization. Besides 6-dimentional camera poses, non-rigid optimization even consider local image warping represented by anchor points. This adds even more flexibility and leads higher quality color mapping. The residual error is smaller than the case of rigid optimization.

[9]:
option.maximum_iteration = 10 if is_travis else 300
option.non_rigid_camera_coordinate = True
with o3d.utility.VerbosityContextManager(o3d.utility.VerbosityLevel.Debug) as cm:
    o3d.color_map.color_map_optimization(mesh, rgbd_images, camera, option)
[10]:
o3d.visualization.draw_geometries([mesh], zoom=0.5399,
                                  front=[0.0665, -0.1107, -0.9916],
                                  lookat=[0.7353, 0.6537, 1.0521],
                                  up=[0.0136, -0.9936, 0.1118])
../../_images/tutorial_Advanced_color_map_optimization_16_0.png
