open3d::geometry::Geometry2D Class Reference

The base geometry class for 2D geometries. More...

#include <Geometry2D.h>

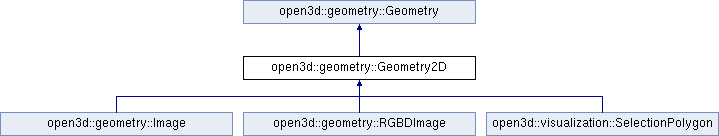

Inheritance diagram for open3d::geometry::Geometry2D:

Public Member Functions
	~Geometry2D () override
Geometry &	Clear () override=0
	Clear all elements in the geometry. More...
bool	IsEmpty () const override=0
	Returns true iff the geometry is empty. More...
virtual Eigen::Vector2d	GetMinBound () const =0
	Returns min bounds for geometry coordinates. More...
virtual Eigen::Vector2d	GetMaxBound () const =0
	Returns max bounds for geometry coordinates. More...
Public Member Functions inherited from open3d::geometry::Geometry
virtual	~Geometry ()
GeometryType	GetGeometryType () const
	Returns one of registered geometry types. More...
int	Dimension () const
	Returns whether the geometry is 2D or 3D. More...
std::string	GetName () const
void	SetName (const std::string &name)

Protected Member Functions
	Geometry2D (GeometryType type)
	Parameterized Constructor. More...
Protected Member Functions inherited from open3d::geometry::Geometry
	Geometry (GeometryType type, int dimension)
	Parameterized Constructor. More...

Additional Inherited Members
Public Types inherited from open3d::geometry::Geometry
enum	GeometryType {   GeometryType::Unspecified = 0, GeometryType::PointCloud = 1, GeometryType::VoxelGrid = 2, GeometryType::Octree = 3,   GeometryType::LineSet = 4, GeometryType::MeshBase = 5, GeometryType::TriangleMesh = 6, GeometryType::HalfEdgeTriangleMesh = 7,   GeometryType::Image = 8, GeometryType::RGBDImage = 9, GeometryType::TetraMesh = 10, GeometryType::OrientedBoundingBox = 11,   GeometryType::AxisAlignedBoundingBox = 12 }
	Specifies possible geometry types. More...

Detailed Description

The base geometry class for 2D geometries.

Main class for 2D geometries, Derives all data from Geometry Base class.

Constructor & Destructor Documentation

~Geometry2D()

open3d::geometry::Geometry2D::~Geometry2D ( )

inlineoverride

Geometry2D()

open3d::geometry::Geometry2D::Geometry2D ( GeometryType  type )

inlineprotected

Parameterized Constructor.

Parameters

type	type of object based on GeometryType

Member Function Documentation

Clear()

Geometry& open3d::geometry::Geometry2D::Clear ( )

overridepure virtual

Clear all elements in the geometry.

Implements open3d::geometry::Geometry.

Implemented in open3d::geometry::Image, open3d::visualization::SelectionPolygon, and open3d::geometry::RGBDImage.

GetMaxBound()

virtual Eigen::Vector2d open3d::geometry::Geometry2D::GetMaxBound ( ) const

pure virtual

Returns max bounds for geometry coordinates.

Implemented in open3d::geometry::Image, open3d::visualization::SelectionPolygon, and open3d::geometry::RGBDImage.

GetMinBound()

virtual Eigen::Vector2d open3d::geometry::Geometry2D::GetMinBound ( ) const

pure virtual

Returns min bounds for geometry coordinates.

Implemented in open3d::geometry::Image, open3d::visualization::SelectionPolygon, and open3d::geometry::RGBDImage.

IsEmpty()

bool open3d::geometry::Geometry2D::IsEmpty ( ) const

overridepure virtual

Returns true iff the geometry is empty.

Implements open3d::geometry::Geometry.

Implemented in open3d::geometry::Image, open3d::visualization::SelectionPolygon, and open3d::geometry::RGBDImage.

---

The documentation for this class was generated from the following file:

• /home/ssheorey/Documents/Open3D/Code/Open3D/cpp/open3d/geometry/Geometry2D.h (5935abc1 (Thu Jun 18 01:37:59 2020 -0700))
