open3d::visualization::gui::Widget Class Reference

#include <Widget.h>

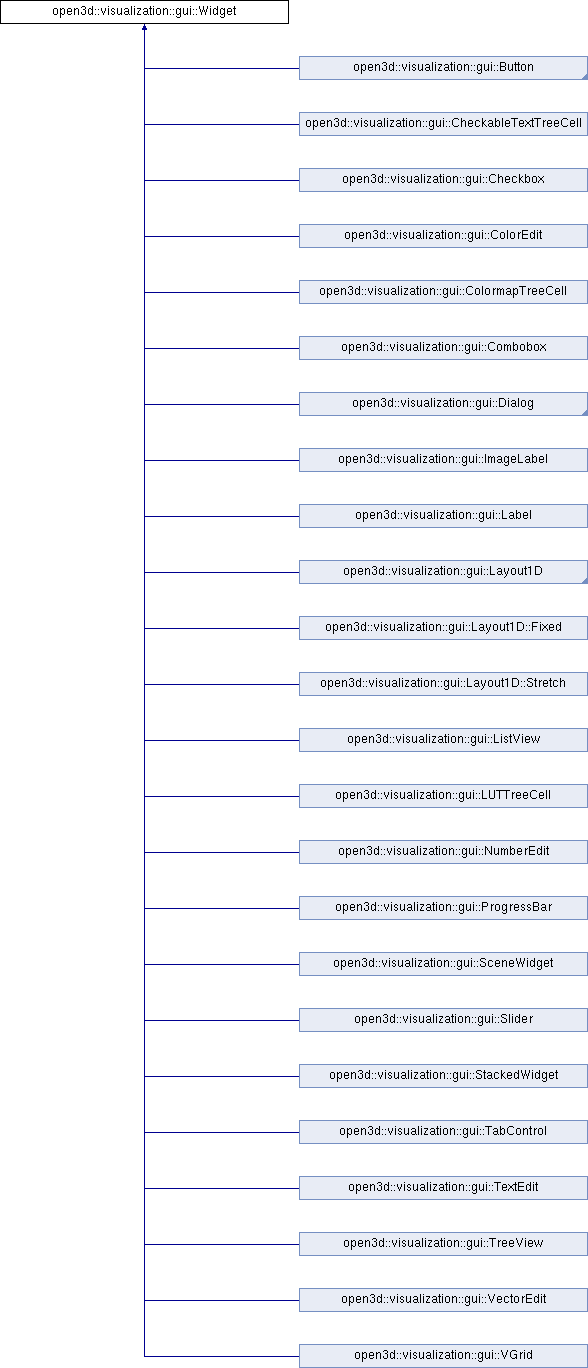

Inheritance diagram for open3d::visualization::gui::Widget:

Data Structures
struct	Impl

Public Types
enum	DrawResult { DrawResult::NONE, DrawResult::REDRAW, DrawResult::RELAYOUT }
enum	EventResult { EventResult::IGNORED, EventResult::CONSUMED, EventResult::DISCARD }

Public Member Functions
	Widget ()
	Widget (const std::vector< std::shared_ptr< Widget >> &children)
virtual	~Widget ()
void	AddChild (std::shared_ptr< Widget > child)
const std::vector< std::shared_ptr< Widget > >	GetChildren () const
const Rect &	GetFrame () const
	Returns the frame size in pixels. More...
virtual void	SetFrame (const Rect &f)
const Color &	GetBackgroundColor () const
bool	IsDefaultBackgroundColor () const
void	SetBackgroundColor (const Color &color)
bool	IsVisible () const
virtual void	SetVisible (bool vis)
bool	IsEnabled () const
virtual void	SetEnabled (bool enabled)
virtual Size	CalcPreferredSize (const Theme &theme) const
virtual void	Layout (const Theme &theme)
virtual DrawResult	Draw (const DrawContext &context)
virtual EventResult	Mouse (const MouseEvent &e)
virtual EventResult	Key (const KeyEvent &e)
virtual DrawResult	Tick (const TickEvent &e)

Static Public Attributes
static constexpr int	DIM_GROW = 10000

Protected Member Functions
void	DrawImGuiPushEnabledState ()
void	DrawImGuiPopEnabledState ()

Friends
class	Window

Member Enumeration Documentation

DrawResult

enum open3d::visualization::gui::Widget::DrawResult

strong

Enumerator
NONE
REDRAW
RELAYOUT

EventResult

enum open3d::visualization::gui::Widget::EventResult

strong

Enumerator
IGNORED
CONSUMED
DISCARD

Constructor & Destructor Documentation

Widget() [1/2]

open3d::visualization::gui::Widget::Widget

(

)

Widget() [2/2]

open3d::visualization::gui::Widget::Widget ( const std::vector< std::shared_ptr< Widget >> &  children )

explicit

~Widget()

open3d::visualization::gui::Widget::~Widget ( )

virtual

Member Function Documentation

AddChild()

void open3d::visualization::gui::Widget::AddChild

(

std::shared_ptr< Widget >

child

)

CalcPreferredSize()

Size open3d::visualization::gui::Widget::CalcPreferredSize ( const Theme &  theme ) const

virtual

Reimplemented in open3d::visualization::gui::VGrid, open3d::visualization::gui::CollapsableVert, open3d::visualization::gui::TreeView, open3d::visualization::gui::Layout1D::Fixed, open3d::visualization::gui::ColormapTreeCell, open3d::visualization::gui::Layout1D, open3d::visualization::gui::LUTTreeCell, open3d::visualization::gui::Combobox, open3d::visualization::gui::Button, open3d::visualization::gui::FileDialog, open3d::visualization::gui::NumberEdit, open3d::visualization::gui::ImageLabel, open3d::visualization::gui::Slider, open3d::visualization::gui::CheckableTextTreeCell, open3d::visualization::gui::ListView, open3d::visualization::gui::TextEdit, open3d::visualization::gui::VectorEdit, open3d::visualization::gui::Label, open3d::visualization::gui::StackedWidget, open3d::visualization::gui::ColorEdit, open3d::visualization::gui::TabControl, open3d::visualization::gui::Checkbox, open3d::visualization::gui::Dialog, open3d::visualization::gui::ProgressBar, and open3d::visualization::SmallButton.

Draw()

Widget::DrawResult open3d::visualization::gui::Widget::Draw ( const DrawContext &  context )

virtual

Draws the widget. If this is a Dear ImGUI widget, this is where the actual event processing happens. Return NONE if no action needs to be taken, REDRAW if the widget needs to be redrawn (e.g. its value changed), and RELAYOUT if the widget wishes to change size.

Reimplemented in open3d::visualization::gui::CollapsableVert, open3d::visualization::gui::TreeView, open3d::visualization::gui::SceneWidget, open3d::visualization::gui::Combobox, open3d::visualization::gui::Button, open3d::visualization::gui::ImageLabel, open3d::visualization::gui::NumberEdit, open3d::visualization::gui::Slider, open3d::visualization::gui::ListView, open3d::visualization::gui::TextEdit, open3d::visualization::gui::VectorEdit, open3d::visualization::gui::StackedWidget, open3d::visualization::gui::Label, open3d::visualization::gui::ColorEdit, open3d::visualization::gui::TabControl, open3d::visualization::gui::Checkbox, open3d::visualization::gui::Dialog, and open3d::visualization::gui::ProgressBar.

DrawImGuiPopEnabledState()

void open3d::visualization::gui::Widget::DrawImGuiPopEnabledState ( )

protected

DrawImGuiPushEnabledState()

void open3d::visualization::gui::Widget::DrawImGuiPushEnabledState ( )

protected

GetBackgroundColor()

const Color & open3d::visualization::gui::Widget::GetBackgroundColor

(

)

const

GetChildren()

const std::vector< std::shared_ptr< Widget > > open3d::visualization::gui::Widget::GetChildren

(

)

const

GetFrame()

const Rect & open3d::visualization::gui::Widget::GetFrame

(

)

const

Returns the frame size in pixels.

IsDefaultBackgroundColor()

bool open3d::visualization::gui::Widget::IsDefaultBackgroundColor

(

)

const

IsEnabled()

bool open3d::visualization::gui::Widget::IsEnabled

(

)

const

IsVisible()

bool open3d::visualization::gui::Widget::IsVisible

(

)

const

Key()

Widget::EventResult open3d::visualization::gui::Widget::Key ( const KeyEvent &  e )

virtual

Widgets that use Dear ImGUI should not need to override this, as Dear ImGUI will take care of all the key handling during the Draw().

Reimplemented in open3d::visualization::gui::SceneWidget.

Layout()

void open3d::visualization::gui::Widget::Layout ( const Theme &  theme )

virtual

Reimplemented in open3d::visualization::gui::VGrid, open3d::visualization::gui::CollapsableVert, open3d::visualization::gui::TreeView, open3d::visualization::gui::SceneWidget, open3d::visualization::gui::ColormapTreeCell, open3d::visualization::gui::Layout1D, open3d::visualization::gui::LUTTreeCell, open3d::visualization::gui::ImageLabel, open3d::visualization::gui::CheckableTextTreeCell, open3d::visualization::gui::StackedWidget, open3d::visualization::gui::TabControl, and open3d::visualization::gui::Dialog.

Mouse()

Widget::EventResult open3d::visualization::gui::Widget::Mouse ( const MouseEvent &  e )

virtual

Widgets that use Dear ImGUI should not need to override this, as Dear ImGUI will take care of all the mouse handling during the Draw().

Reimplemented in open3d::visualization::gui::SceneWidget.

SetBackgroundColor()

void open3d::visualization::gui::Widget::SetBackgroundColor

(

const Color &

color

)

SetEnabled()

void open3d::visualization::gui::Widget::SetEnabled ( bool  enabled )

virtual

SetFrame()

void open3d::visualization::gui::Widget::SetFrame ( const Rect &  f )

virtual

The frame is in pixels. The size of a pixel varies on different and operatings sytems now frequently scale text sizes on high DPI monitors. Prefer using a Layout to using this function, but if you must use it, it is best to use a multiple of Window::GetTheme().fontSize, which represents 1em and is scaled according to the scaling factor of the window.

Reimplemented in open3d::visualization::gui::SceneWidget.

SetVisible()

void open3d::visualization::gui::Widget::SetVisible ( bool  vis )

virtual

Tick()

Widget::DrawResult open3d::visualization::gui::Widget::Tick ( const TickEvent &  e )

virtual

Tick events are sent regularly and allow for things like smoothly moving the camera based on keys that are pressed, or animations. Return DrawResult::REDRAW if you want to be redrawn.

Reimplemented in open3d::visualization::gui::SceneWidget.

Friends And Related Function Documentation

Window

friend class Window

friend

Field Documentation

DIM_GROW

constexpr int open3d::visualization::gui::Widget::DIM_GROW = 10000

static

---
