Lays out widgets vertically. More...

#include <Layout.h>

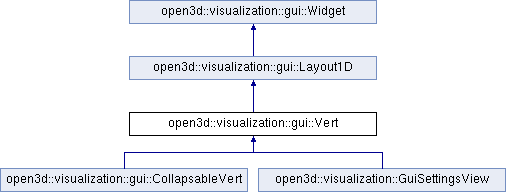

Inheritance diagram for open3d::visualization::gui::Vert:

Public Member Functions
	Vert ()

	Vert (int spacing, const Margins &margins=Margins())

	Vert (int spacing, const Margins &margins, const std::vector< std::shared_ptr< Widget >> &children)

virtual	~Vert ()

Public Member Functions inherited from open3d::visualization::gui::Layout1D
	Layout1D (Dir dir, int spacing, const Margins &margins, const std::vector< std::shared_ptr< Widget >> &children)

virtual	~Layout1D ()

int	GetSpacing () const

const Margins &	GetMargins () const

void	SetSpacing (int spacing)

void	SetMargins (const Margins &margins)

Size	CalcPreferredSize (const Theme &theme) const override

void	Layout (const Theme &theme) override

void	AddFixed (int size)
	Adds a fixed number of pixels after the previously added widget. More...

void	AddStretch ()

Public Member Functions inherited from open3d::visualization::gui::Widget
	Widget ()

	Widget (const std::vector< std::shared_ptr< Widget >> &children)

virtual	~Widget ()

void	AddChild (std::shared_ptr< Widget > child)

const std::vector< std::shared_ptr< Widget > >	GetChildren () const

const Rect &	GetFrame () const
	Returns the frame size in pixels. More...

virtual void	SetFrame (const Rect &f)

const Color &	GetBackgroundColor () const

bool	IsDefaultBackgroundColor () const

void	SetBackgroundColor (const Color &color)

bool	IsVisible () const

virtual void	SetVisible (bool vis)

bool	IsEnabled () const

virtual void	SetEnabled (bool enabled)

virtual DrawResult	Draw (const DrawContext &context)

virtual EventResult	Mouse (const MouseEvent &e)

virtual EventResult	Key (const KeyEvent &e)

virtual DrawResult	Tick (const TickEvent &e)

Static Public Member Functions
static std::shared_ptr< Layout1D::Fixed >	MakeFixed (int size)

static std::shared_ptr< Layout1D::Stretch >	MakeStretch ()

Static Public Member Functions inherited from open3d::visualization::gui::Layout1D
static void	debug_PrintPreferredSizes (Layout1D *layout, const Theme &theme, int depth=0)

Additional Inherited Members
Public Types inherited from open3d::visualization::gui::Layout1D
enum	Dir { VERT, HORIZ }

Public Types inherited from open3d::visualization::gui::Widget
enum	DrawResult { DrawResult::NONE, DrawResult::REDRAW, DrawResult::RELAYOUT }

enum	EventResult { EventResult::IGNORED, EventResult::CONSUMED, EventResult::DISCARD }

Static Public Attributes inherited from open3d::visualization::gui::Widget
static constexpr int	DIM_GROW = 10000

Protected Member Functions inherited from open3d::visualization::gui::Layout1D
Margins &	GetMutableMargins ()

Protected Member Functions inherited from open3d::visualization::gui::Widget
void	DrawImGuiPushEnabledState ()

void	DrawImGuiPopEnabledState ()

Detailed Description

Lays out widgets vertically.

Constructor & Destructor Documentation

◆ Vert() [1/3]

open3d::visualization::gui::Vert::Vert ( )

◆ Vert() [2/3]

open3d::visualization::gui::Vert::Vert	(	int	spacing,
		const Margins &	margins = `Margins()`
	)

Spacing is in pixels; see the comment in Margin(). 1em is typically a good value for spacing.

◆ Vert() [3/3]

open3d::visualization::gui::Vert::Vert	(	int	spacing,
		const Margins &	margins,
		const std::vector< std::shared_ptr< Widget >> &	children
	)

◆ ~Vert()

open3d::visualization::gui::Vert::~Vert ( )

virtual

Member Function Documentation

◆ MakeFixed()

std::shared_ptr< Layout1D::Fixed > open3d::visualization::gui::Vert::MakeFixed ( int size )

static

◆ MakeStretch()

std::shared_ptr< Layout1D::Stretch > open3d::visualization::gui::Vert::MakeStretch ( )
