open3d::visualization::gui::Layout1D Class Reference

#include <Layout.h>

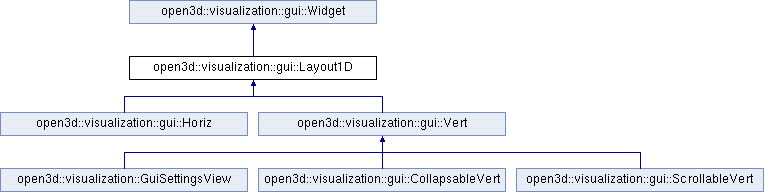

Inheritance diagram for open3d::visualization::gui::Layout1D:

Data Structures
class	Fixed
struct	Impl
class	Stretch

Public Types
enum	Dir { VERT , HORIZ }
Public Types inherited from open3d::visualization::gui::Widget
enum class	DrawResult { NONE , REDRAW , RELAYOUT }
enum class	EventResult { IGNORED , CONSUMED , DISCARD }

Public Member Functions
	Layout1D (Dir dir, int spacing, const Margins &margins, const std::vector< std::shared_ptr< Widget >> &children)
virtual	~Layout1D ()
int	GetSpacing () const
const Margins &	GetMargins () const
void	SetSpacing (int spacing)
void	SetMargins (const Margins &margins)
Size	CalcPreferredSize (const LayoutContext &context, const Constraints &constraints) const override
void	Layout (const LayoutContext &context) override
void	AddFixed (int size)
	Adds a fixed number of pixels after the previously added widget. More...
void	AddStretch ()
Public Member Functions inherited from open3d::visualization::gui::Widget
	Widget ()
	Widget (const std::vector< std::shared_ptr< Widget >> &children)
virtual	~Widget ()
virtual void	AddChild (std::shared_ptr< Widget > child)
virtual const std::vector< std::shared_ptr< Widget > >	GetChildren () const
virtual const Rect &	GetFrame () const
	Returns the frame size in pixels. More...
virtual void	SetFrame (const Rect &f)
virtual const Color &	GetBackgroundColor () const
virtual bool	IsDefaultBackgroundColor () const
virtual void	SetBackgroundColor (const Color &color)
virtual bool	IsVisible () const
virtual void	SetVisible (bool vis)
virtual bool	IsEnabled () const
virtual void	SetEnabled (bool enabled)
virtual void	SetTooltip (const char *text)
virtual const char *	GetTooltip () const
virtual Size	CalcMinimumSize (const LayoutContext &context) const
virtual DrawResult	Draw (const DrawContext &context)
virtual EventResult	Mouse (const MouseEvent &e)
virtual EventResult	Key (const KeyEvent &e)
virtual DrawResult	Tick (const TickEvent &e)

Static Public Member Functions
static void	debug_PrintPreferredSizes (Layout1D *layout, const LayoutContext &context, const Constraints &constraints, int depth=0)

Protected Member Functions
int	GetMinorAxisPreferredSize () const
void	SetMinorAxisPreferredSize (int size)
Margins &	GetMutableMargins ()
std::vector< std::shared_ptr< Widget > >	GetVisibleChildren () const
Protected Member Functions inherited from open3d::visualization::gui::Widget
void	DrawImGuiPushEnabledState ()
void	DrawImGuiPopEnabledState ()
void	DrawImGuiTooltip ()

Additional Inherited Members
Static Public Attributes inherited from open3d::visualization::gui::Widget
static constexpr int	DIM_GROW = 10000

Detailed Description

Lays out widgets either horizontally or vertically. Base class for Vert and Horiz.

Member Enumeration Documentation

Dir

enum open3d::visualization::gui::Layout1D::Dir

Enumerator
VERT
HORIZ

Constructor & Destructor Documentation

Layout1D()

open3d::visualization::gui::Layout1D::Layout1D	(	Dir	dir,
		int	spacing,
		const Margins &	margins,
		const std::vector< std::shared_ptr< Widget >> &	children
	)

Spacing is in pixels; see the comment in Margin(). 1em is typically a good value for spacing.

~Layout1D()

open3d::visualization::gui::Layout1D::~Layout1D ( )

virtual

Member Function Documentation

AddFixed()

void open3d::visualization::gui::Layout1D::AddFixed

(

int

size

)

Adds a fixed number of pixels after the previously added widget.

AddStretch()

void open3d::visualization::gui::Layout1D::AddStretch

(

)

Adds a virtual widget that takes up as much space as possible. This is useful for centering widgets: { stretch, w1, w2, stretch } or for aligning widgets to one side or the other: { stretch, ok, cancel }.

CalcPreferredSize()

Size open3d::visualization::gui::Layout1D::CalcPreferredSize ( const LayoutContext &  context, const Constraints &  constraints  ) const

overridevirtual

Reimplemented from open3d::visualization::gui::Widget.

Reimplemented in open3d::visualization::gui::CollapsableVert.

debug_PrintPreferredSizes()

void open3d::visualization::gui::Layout1D::debug_PrintPreferredSizes ( Layout1D *  layout, const LayoutContext &  context, const Constraints &  constraints, int  depth = 0  )

static

GetMargins()

const Margins & open3d::visualization::gui::Layout1D::GetMargins

(

)

const

GetMinorAxisPreferredSize()

int open3d::visualization::gui::Layout1D::GetMinorAxisPreferredSize ( ) const

protected

GetMutableMargins()

Margins & open3d::visualization::gui::Layout1D::GetMutableMargins ( )

protected

GetSpacing()

int open3d::visualization::gui::Layout1D::GetSpacing

(

)

const

GetVisibleChildren()

std::vector< std::shared_ptr< Widget > > open3d::visualization::gui::Layout1D::GetVisibleChildren ( ) const

protected

Layout()

void open3d::visualization::gui::Layout1D::Layout ( const LayoutContext &  context )

overridevirtual

Reimplemented from open3d::visualization::gui::Widget.

Reimplemented in open3d::visualization::gui::CollapsableVert.

SetMargins()

void open3d::visualization::gui::Layout1D::SetMargins

(

const Margins &

margins

)

Sets margins. Need to signal a relayout after calling (unless it is before a layout that will happen, such as before adding as a child).

SetMinorAxisPreferredSize()

void open3d::visualization::gui::Layout1D::SetMinorAxisPreferredSize ( int  size )

protected

SetSpacing()

void open3d::visualization::gui::Layout1D::SetSpacing

(

int

spacing

)

Sets spacing. Need to signal a relayout after calling (unless it is before a layout that will happen, such as before adding as a child).

---

The documentation for this class was generated from the following files:

• /home/runner/work/Open3D/Open3D/cpp/open3d/visualization/gui/Layout.h (9238339 (Tue Mar 14 18:49:09 2023 -0700))
• /home/runner/work/Open3D/Open3D/cpp/open3d/visualization/gui/Layout.cpp (9238339 (Tue Mar 14 18:49:09 2023 -0700))
