open3d::t::geometry::TriangleMesh Class Reference

A triangle mesh contains vertices and triangles. More...

#include <TriangleMesh.h>

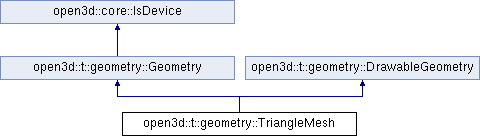

Inheritance diagram for open3d::t::geometry::TriangleMesh:

Public Member Functions
	TriangleMesh (const core::Device &device=core::Device("CPU:0"))
	TriangleMesh (const core::Tensor &vertex_positions, const core::Tensor &triangle_indices)
virtual	~TriangleMesh () override
std::string	ToString () const
	Text description. More...
TriangleMesh	To (const core::Device &device, bool copy=false) const
TriangleMesh	Clone () const
	Returns copy of the triangle mesh on the same device. More...
const TensorMap &	GetVertexAttr () const
	Getter for vertex_attr_ TensorMap. Used in Pybind. More...
TensorMap &	GetVertexAttr ()
	Getter for vertex_attr_ TensorMap. More...
core::Tensor &	GetVertexAttr (const std::string &key)
core::Tensor &	GetVertexPositions ()
core::Tensor &	GetVertexColors ()
core::Tensor &	GetVertexNormals ()
const TensorMap &	GetTriangleAttr () const
	Getter for triangle_attr_ TensorMap. Used in Pybind. More...
TensorMap &	GetTriangleAttr ()
	Getter for triangle_attr_ TensorMap. More...
core::Tensor &	GetTriangleAttr (const std::string &key)
core::Tensor &	GetTriangleIndices ()
core::Tensor &	GetTriangleNormals ()
core::Tensor &	GetTriangleColors ()
const core::Tensor &	GetVertexAttr (const std::string &key) const
void	RemoveVertexAttr (const std::string &key)
const core::Tensor &	GetVertexPositions () const
const core::Tensor &	GetVertexColors () const
const core::Tensor &	GetVertexNormals () const
const core::Tensor &	GetTriangleAttr (const std::string &key) const
void	RemoveTriangleAttr (const std::string &key)
const core::Tensor &	GetTriangleIndices () const
const core::Tensor &	GetTriangleNormals () const
const core::Tensor &	GetTriangleColors () const
void	SetVertexAttr (const std::string &key, const core::Tensor &value)
void	SetVertexPositions (const core::Tensor &value)
void	SetVertexColors (const core::Tensor &value)
void	SetVertexNormals (const core::Tensor &value)
void	SetTriangleAttr (const std::string &key, const core::Tensor &value)
void	SetTriangleIndices (const core::Tensor &value)
	Set the value of the "indices" attribute in triangle_attr_. More...
void	SetTriangleNormals (const core::Tensor &value)
void	SetTriangleColors (const core::Tensor &value)
bool	HasVertexAttr (const std::string &key) const
bool	HasVertexPositions () const
bool	HasVertexColors () const
bool	HasVertexNormals () const
bool	HasTriangleAttr (const std::string &key) const
bool	HasTriangleIndices () const
bool	HasTriangleNormals () const
bool	HasTriangleColors () const
TriangleMesh &	Clear () override
	Clear all data in the trianglemesh. More...
bool	IsEmpty () const override
	Returns !HasVertexPositions(), triangles are ignored. More...
core::Tensor	GetMinBound () const
core::Tensor	GetMaxBound () const
core::Tensor	GetCenter () const
TriangleMesh &	Transform (const core::Tensor &transformation)
	Transforms the VertexPositions, VertexNormals and TriangleNormals (if exist) of the TriangleMesh. More...
TriangleMesh &	Translate (const core::Tensor &translation, bool relative=true)
	Translates the VertexPositions of the TriangleMesh. More...
TriangleMesh &	Scale (double scale, const core::Tensor &center)
	Scales the VertexPositions of the TriangleMesh. More...
TriangleMesh &	Rotate (const core::Tensor &R, const core::Tensor &center)
	Rotates the VertexPositions, VertexNormals and TriangleNormals (if exists). More...
TriangleMesh &	NormalizeNormals ()
	Normalize both triangle normals and vertex normals to length 1. More...
TriangleMesh &	ComputeTriangleNormals (bool normalized=true)
	Function to compute triangle normals, usually called before rendering. More...
TriangleMesh &	ComputeVertexNormals (bool normalized=true)
	Function to compute vertex normals, usually called before rendering. More...
double	GetSurfaceArea () const
	Function that computes the surface area of the mesh, i.e. the sum of the individual triangle surfaces. More...
TriangleMesh	ClipPlane (const core::Tensor &point, const core::Tensor &normal) const
	Clip mesh with a plane. This method clips the triangle mesh with the specified plane. Parts of the mesh on the positive side of the plane will be kept and triangles intersected by the plane will be cut. More...
LineSet	SlicePlane (const core::Tensor &point, const core::Tensor &normal, const std::vector< double > contour_values={0.0}) const
	Extract contour slices given a plane. This method extracts slices as LineSet from the mesh at specific contour values defined by the specified plane. More...
core::Device	GetDevice () const override
	Returns the device of the geometry. More...
open3d::geometry::TriangleMesh	ToLegacy () const
	Convert to a legacy Open3D TriangleMesh. More...
TriangleMesh	ComputeConvexHull (bool joggle_inputs=false) const
TriangleMesh	SimplifyQuadricDecimation (double target_reduction, bool preserve_volume=true) const
TriangleMesh	BooleanUnion (const TriangleMesh &mesh, double tolerance=1e-6) const
TriangleMesh	BooleanIntersection (const TriangleMesh &mesh, double tolerance=1e-6) const
TriangleMesh	BooleanDifference (const TriangleMesh &mesh, double tolerance=1e-6) const
AxisAlignedBoundingBox	GetAxisAlignedBoundingBox () const
	Create an axis-aligned bounding box from vertex attribute "positions". More...
OrientedBoundingBox	GetOrientedBoundingBox () const
	Create an oriented bounding box from vertex attribute "positions". More...
TriangleMesh	FillHoles (double hole_size=1e6) const
std::tuple< float, int, int >	ComputeUVAtlas (size_t size=512, float gutter=1.0f, float max_stretch=1.f/6, int parallel_partitions=1, int nthreads=0)
std::unordered_map< std::string, core::Tensor >	BakeVertexAttrTextures (int size, const std::unordered_set< std::string > &vertex_attr={}, double margin=2., double fill=0., bool update_material=true)
std::unordered_map< std::string, core::Tensor >	BakeTriangleAttrTextures (int size, const std::unordered_set< std::string > &triangle_attr={}, double margin=2., double fill=0., bool update_material=true)
TriangleMesh	ExtrudeRotation (double angle, const core::Tensor &axis, int resolution=16, double translation=0.0, bool capping=true) const
TriangleMesh	ExtrudeLinear (const core::Tensor &vector, double scale=1.0, bool capping=true) const
int	PCAPartition (int max_faces)
TriangleMesh	SelectFacesByMask (const core::Tensor &mask) const
TriangleMesh	SelectByIndex (const core::Tensor &indices) const
Public Member Functions inherited from open3d::t::geometry::Geometry
virtual	~Geometry ()
GeometryType	GetGeometryType () const
	Returns one of registered geometry types. More...
int	Dimension () const
	Returns whether the geometry is 2D or 3D. More...
std::string	GetName () const
void	SetName (const std::string &name)
Public Member Functions inherited from open3d::core::IsDevice
	IsDevice ()=default
virtual	~IsDevice ()=default
bool	IsCPU () const
bool	IsCUDA () const
Public Member Functions inherited from open3d::t::geometry::DrawableGeometry
	DrawableGeometry ()
	~DrawableGeometry ()
bool	HasMaterial () const
	Check if a material has been applied to this Geometry with SetMaterial. More...
visualization::rendering::Material &	GetMaterial ()
	Get material associated with this Geometry. More...
const visualization::rendering::Material &	GetMaterial () const
	Get const reference to material associated with this Geometry. More...
void	SetMaterial (const visualization::rendering::Material &material)
	Set the material properties associate with this Geometry. More...

Static Public Member Functions
static TriangleMesh	CreateBox (double width=1.0, double height=1.0, double depth=1.0, core::Dtype float_dtype=core::Float32, core::Dtype int_dtype=core::Int64, const core::Device &device=core::Device("CPU:0"))
static TriangleMesh	CreateSphere (double radius=1.0, int resolution=20, core::Dtype float_dtype=core::Float32, core::Dtype int_dtype=core::Int64, const core::Device &device=core::Device("CPU:0"))
static TriangleMesh	CreateTetrahedron (double radius=1.0, core::Dtype float_dtype=core::Float32, core::Dtype int_dtype=core::Int64, const core::Device &device=core::Device("CPU:0"))
static TriangleMesh	CreateOctahedron (double radius=1.0, core::Dtype float_dtype=core::Float32, core::Dtype int_dtype=core::Int64, const core::Device &device=core::Device("CPU:0"))
static TriangleMesh	CreateIcosahedron (double radius=1.0, core::Dtype float_dtype=core::Float32, core::Dtype int_dtype=core::Int64, const core::Device &device=core::Device("CPU:0"))
static TriangleMesh	CreateCylinder (double radius=1.0, double height=2.0, int resolution=20, int split=4, core::Dtype float_dtype=core::Float32, core::Dtype int_dtype=core::Int64, const core::Device &device=core::Device("CPU:0"))
static TriangleMesh	CreateCone (double radius=1.0, double height=2.0, int resolution=20, int split=1, core::Dtype float_dtype=core::Float32, core::Dtype int_dtype=core::Int64, const core::Device &device=core::Device("CPU:0"))
static TriangleMesh	CreateTorus (double torus_radius=1.0, double tube_radius=0.5, int radial_resolution=30, int tubular_resolution=20, core::Dtype float_dtype=core::Float32, core::Dtype int_dtype=core::Int64, const core::Device &device=core::Device("CPU:0"))
static TriangleMesh	CreateArrow (double cylinder_radius=1.0, double cone_radius=1.5, double cylinder_height=5.0, double cone_height=4.0, int resolution=20, int cylinder_split=4, int cone_split=1, core::Dtype float_dtype=core::Float32, core::Dtype int_dtype=core::Int64, const core::Device &device=core::Device("CPU:0"))
static TriangleMesh	CreateCoordinateFrame (double size=1.0, const Eigen::Vector3d &origin=Eigen::Vector3d(0.0, 0.0, 0.0), core::Dtype float_dtype=core::Float32, core::Dtype int_dtype=core::Int64, const core::Device &device=core::Device("CPU:0"))
static TriangleMesh	CreateMobius (int length_split=70, int width_split=15, int twists=1, double radius=1, double flatness=1, double width=1, double scale=1, core::Dtype float_dtype=core::Float32, core::Dtype int_dtype=core::Int64, const core::Device &device=core::Device("CPU:0"))
static TriangleMesh	CreateText (const std::string &text, double depth=0.0, core::Dtype float_dtype=core::Float32, core::Dtype int_dtype=core::Int64, const core::Device &device=core::Device("CPU:0"))
static geometry::TriangleMesh	FromLegacy (const open3d::geometry::TriangleMesh &mesh_legacy, core::Dtype float_dtype=core::Float32, core::Dtype int_dtype=core::Int64, const core::Device &device=core::Device("CPU:0"))

Protected Attributes
core::Device	device_ = core::Device("CPU:0")
TensorMap	vertex_attr_
TensorMap	triangle_attr_

Additional Inherited Members
Public Types inherited from open3d::t::geometry::Geometry
enum class	GeometryType {   Unspecified = 0 , PointCloud = 1 , VoxelGrid = 2 , Octree = 3 ,   LineSet = 4 , MeshBase = 5 , TriangleMesh = 6 , HalfEdgeTriangleMesh = 7 ,   Image = 8 , RGBDImage = 9 , TetraMesh = 10 , OrientedBoundingBox = 11 ,   AxisAlignedBoundingBox = 12 }
	Specifies possible geometry types. More...
Protected Member Functions inherited from open3d::t::geometry::Geometry
	Geometry (GeometryType type, int dimension)
	Parameterized Constructor. More...

Detailed Description

A triangle mesh contains vertices and triangles.

The triangle mesh class stores the attribute data in key-value maps. There are two maps: the vertex attributes map, and the triangle attribute map.

• Default attribute: vertex_attr_["positions"], triangle_attr_["indices"]
  • Vertex positions
    • TriangleMesh::GetVertexPositions()
    • TriangleMesh::SetVertexPositions(const Tensor& vertex_positions)
    • TriangleMesh::HasVertexPositions()
    • Value tensor must have shape {num_vertices, 3}.
  • Triangle indices
    • TriangleMesh::GetTriangleIndices()
    • TriangleMesh::SetTriangleIndices(const Tensor& triangle_indices)
    • TriangleMesh::HasTriangleIndices()
    • Value tensor must have shape {num_triangles, 3}.
  • Created by default, required for all triangle meshes.
  • The device of vertex positions and triangle indices must be the same. They determine the device of the trianglemesh.
• Common attributes: vertex_attr_["normals"], vertex_attr_["colors"] triangle_attr_["normals"], triangle_attr_["colors"]
  • Vertex normals
    • TriangleMesh::GetVertexNormals()
    • TriangleMesh::SetVertexNormals(const Tensor& vertex_normals)
    • TriangleMesh::HasVertexNormals()
    • Value tensor must have shape {num_vertices, 3}.
    • Value tensor can have any dtype.
  • Vertex colors
    • TriangleMesh::GetVertexColors()
    • TriangleMesh::SetVertexColors(const Tensor& vertex_colors)
    • TriangleMesh::HasVertexColors()
    • Value tensor must have shape {num_vertices, 3}.
    • Value tensor can have any dtype.
  • Triangle normals
    • TriangleMesh::GetTriangleNormals()
    • TriangleMesh::SetTriangleNormals(const Tensor& triangle_normals)
    • TriangleMesh::HasTriangleNormals()
    • Value tensor must have shape {num_triangles, 3}.
    • Value tensor can have any dtype.
  • Triangle colors
    • TriangleMesh::GetTriangleColors()
    • TriangleMesh::SetTriangleColors(const Tensor& triangle_colors)
    • TriangleMesh::HasTriangleColors()
    • Value tensor must have shape {num_triangles, 3}.
    • Value tensor can have any dtype.
  • Not created by default.
  • For all attributes above, the device must be consistent with the device of the triangle mesh.
• Custom attributes: e.g. vetex_attr_["labels"], triangle_attr_["labels"]
  • Use generalized helper functions, e.g.:
    • TriangleMesh::GetVertexAttr(const std::string& key)
    • TriangleMesh::SetVertexAttr(const std::string& key, const Tensor& value)
    • TriangleMesh::HasVertexAttr(const std::string& key)
    • TriangleMesh::GetTriangleAttr(const std::string& key)
    • TriangleMesh::SetTriangleAttr(const std::string& key, const Tensor& value)
    • TriangleMesh::HasTriangleAttr(const std::string& key)
  • Not created by default. Users can add their own custom attributes.
  • Value tensor must be on the same device as the triangle mesh.

Note that the we can also use the generalized helper functions for the default and common attributes.

Constructor & Destructor Documentation

TriangleMesh() [1/2]

open3d::t::geometry::TriangleMesh::TriangleMesh

(

const core::Device &

device = core::Device("CPU:0")

)

Construct an empty trianglemesh on the provided device.

Parameters

device

The device on which to initialize the trianglemesh (default: 'CPU:0').

TriangleMesh() [2/2]

open3d::t::geometry::TriangleMesh::TriangleMesh	(	const core::Tensor &	vertex_positions,
		const core::Tensor &	triangle_indices
	)

Construct a trianglemesh from vertices and triangles.

The input tensors will be directly used as the underlying storage of the triangle mesh (no memory copy). The device for vertex_positions must be consistent with triangle_indices.

Parameters

vertex_positions	A tensor with element shape {3}.
triangle_indices	A tensor with element shape {3}.

~TriangleMesh()

virtual open3d::t::geometry::TriangleMesh::~TriangleMesh ( )

inlineoverridevirtual

Member Function Documentation

BakeTriangleAttrTextures()

std::unordered_map< std::string, core::Tensor > open3d::t::geometry::TriangleMesh::BakeTriangleAttrTextures	(	int	size,
		const std::unordered_set< std::string > &	triangle_attr = {},
		double	margin = 2.,
		double	fill = 0.,
		bool	update_material = true
	)

Bake triangle attributes into textures.

This function assumes a triangle attribute with name 'texture_uvs'.

This function always uses the CPU device.

Parameters

size	The width and height of the texture in pixels. Only square textures are supported.
vertex_attr	The vertex attributes for which textures should be generated.
margin	The margin in pixels. The recommended value is 2. The margin are additional pixels around the UV islands to avoid discontinuities.
fill	The value used for filling texels outside the UV islands.
update_material	If true updates the material of the mesh. Baking a vertex attribute with the name 'albedo' will become the albedo texture in the material. Existing textures in the material will be overwritten.

Returns

A dictionary of textures.

BakeVertexAttrTextures()

std::unordered_map< std::string, core::Tensor > open3d::t::geometry::TriangleMesh::BakeVertexAttrTextures	(	int	size,
		const std::unordered_set< std::string > &	vertex_attr = {},
		double	margin = 2.,
		double	fill = 0.,
		bool	update_material = true
	)

Bake vertex attributes into textures.

This function assumes a triangle attribute with name 'texture_uvs'. Only float type attributes can be baked to textures.

This function always uses the CPU device.

Parameters

size	The width and height of the texture in pixels. Only square textures are supported.
vertex_attr	The vertex attributes for which textures should be generated.
margin	The margin in pixels. The recommended value is 2. The margin are additional pixels around the UV islands to avoid discontinuities.
fill	The value used for filling texels outside the UV islands.
update_material	If true updates the material of the mesh. Baking a vertex attribute with the name 'albedo' will become the albedo texture in the material. Existing textures in the material will be overwritten.

Returns

A dictionary of textures.

BooleanDifference()

TriangleMesh open3d::t::geometry::TriangleMesh::BooleanDifference	(	const TriangleMesh &	mesh,
		double	tolerance = 1e-6
	)		const

Computes the mesh that encompasses the volume after subtracting the volume of the second operand. Both meshes should be manifold.

This function always uses the CPU device.

Parameters

mesh	This is the second operand for the boolean operation.
tolerance	Threshold which determines when point distances are considered to be 0.

Returns

The mesh describing the difference volume.

BooleanIntersection()

TriangleMesh open3d::t::geometry::TriangleMesh::BooleanIntersection	(	const TriangleMesh &	mesh,
		double	tolerance = 1e-6
	)		const

Computes the mesh that encompasses the intersection of the volumes of two meshes. Both meshes should be manifold.

This function always uses the CPU device.

Parameters

mesh	This is the second operand for the boolean operation.
tolerance	Threshold which determines when point distances are considered to be 0.

Returns

The mesh describing the intersection volume.

BooleanUnion()

TriangleMesh open3d::t::geometry::TriangleMesh::BooleanUnion	(	const TriangleMesh &	mesh,
		double	tolerance = 1e-6
	)		const

Computes the mesh that encompasses the union of the volumes of two meshes. Both meshes should be manifold.

This function always uses the CPU device.

Parameters

mesh	This is the second operand for the boolean operation.
tolerance	Threshold which determines when point distances are considered to be 0.

Returns

The mesh describing the union volume.

Clear()

TriangleMesh& open3d::t::geometry::TriangleMesh::Clear ( )

inlineoverridevirtual

Clear all data in the trianglemesh.

Implements open3d::t::geometry::Geometry.

ClipPlane()

TriangleMesh open3d::t::geometry::TriangleMesh::ClipPlane	(	const core::Tensor &	point,
		const core::Tensor &	normal
	)		const

Clip mesh with a plane. This method clips the triangle mesh with the specified plane. Parts of the mesh on the positive side of the plane will be kept and triangles intersected by the plane will be cut.

Parameters

point	A point on the plane as [Tensor of dim {3}].
normal	The normal of the plane as [Tensor of dim {3}]. The normal points to the positive side of the plane for which the geometry will be kept.

Returns

New triangle mesh clipped with the plane.

Clone()

TriangleMesh open3d::t::geometry::TriangleMesh::Clone ( ) const

inline

Returns copy of the triangle mesh on the same device.

ComputeConvexHull()

TriangleMesh open3d::t::geometry::TriangleMesh::ComputeConvexHull

(

bool

joggle_inputs = false

)

const

Compute the convex hull of the triangle mesh using qhull.

This runs on the CPU.

Parameters

joggle_inputs

(default False). Handle precision problems by randomly perturbing the input data. Set to True if perturbing the input iis acceptable but you need convex simplicial output. If False, neighboring facets may be merged in case of precision problems. See QHull docs for more details.

Returns

TriangleMesh representing the convexh hull. This contains an extra vertex property "point_map" that contains the index of the corresponding vertex in the original mesh.

ComputeTriangleNormals()

TriangleMesh & open3d::t::geometry::TriangleMesh::ComputeTriangleNormals

(

bool

normalized = true

)

Function to compute triangle normals, usually called before rendering.

ComputeUVAtlas()

std::tuple< float, int, int > open3d::t::geometry::TriangleMesh::ComputeUVAtlas	(	size_t	size = 512,
		float	gutter = 1.0f,
		float	max_stretch = 1.f / 6,
		int	parallel_partitions = 1,
		int	nthreads = 0
	)

Creates an UV atlas and adds it as triangle attr 'texture_uvs' to the mesh.

Input meshes must be manifold for this method to work.

The algorithm is based on:

• Zhou et al, "Iso-charts: Stretch-driven Mesh Parameterization using Spectral Analysis", Eurographics Symposium on Geometry Processing (2004)
• Sander et al. "Signal-Specialized Parametrization" Europgraphics 2002

This function always uses the CPU device.

Parameters

size	The target size of the texture (size x size). The uv coordinates will still be in the range [0..1] but parameters like gutter use pixels as units.
gutter	This is the space around the uv islands in pixels.
max_stretch	The maximum amount of stretching allowed. The parameter range is [0..1] with 0 meaning no stretch allowed.
parallel_partitions	The approximate number of partitions created before computing the UV atlas for parallelizing the computation. Parallelization can be enabled with values > 1. Note that parallelization increases the number of UV islands and can lead to results with lower quality.
nthreads	The number of threads used when parallel_partitions is > 1. Set to 0 for automatic number of thread detection.

Returns

Tuple with (max stretch, num_charts, num_partitions) storing the actual amount of stretch, the number of created charts, and the number of parallel partitions created.

ComputeVertexNormals()

TriangleMesh & open3d::t::geometry::TriangleMesh::ComputeVertexNormals

(

bool

normalized = true

)

Function to compute vertex normals, usually called before rendering.

CreateArrow()

TriangleMesh open3d::t::geometry::TriangleMesh::CreateArrow ( double  cylinder_radius = 1.0, double  cone_radius = 1.5, double  cylinder_height = 5.0, double  cone_height = 4.0, int  resolution = 20, int  cylinder_split = 4, int  cone_split = 1, core::Dtype  float_dtype = core::Float32, core::Dtype  int_dtype = core::Int64, const core::Device &  device = core::Device("CPU:0")  )

static

Create a arrow triangle mesh.

Parameters

cylinder_radius	defines the radius of the cylinder.
cone_radius	defines the radius of the cone.
cylinder_height	defines the height of the cylinder. The axis of cylinder is from (0, 0, 0) to (0, 0, cylinder_height).
cone_height	defines the height of the cone. The axis of the cone will be from (0, 0, cylinder_height) to (0, 0, cylinder_height + cone_height).
resolution	defines the resolution of the cone. The circle will be split into resolution segments.
cylinder_split	defines the number of segments along the cylinder_height direction.
cone_split	defines the number of segments along the cone_height direction.
float_dtype	Float32 or Float64, used to store floating point values, e.g. vertices, normals, colors.
int_dtype	Int32 or Int64, used to store index values, e.g. triangles.
device	The device where the resulting TriangleMesh resides in.

CreateBox()

TriangleMesh open3d::t::geometry::TriangleMesh::CreateBox ( double  width = 1.0, double  height = 1.0, double  depth = 1.0, core::Dtype  float_dtype = core::Float32, core::Dtype  int_dtype = core::Int64, const core::Device &  device = core::Device("CPU:0")  )

static

Create a box triangle mesh. One vertex of the box will be placed at the origin and the box aligns with the positive x, y, and z axes.

Parameters

width	is x-directional length.
height	is y-directional length.
depth	is z-directional length.
float_dtype	Float32 or Float64, used to store floating point values, e.g. vertices, normals, colors.
int_dtype	Int32 or Int64, used to store index values, e.g. triangles.
device	The device where the resulting TriangleMesh resides in.

CreateCone()

TriangleMesh open3d::t::geometry::TriangleMesh::CreateCone ( double  radius = 1.0, double  height = 2.0, int  resolution = 20, int  split = 1, core::Dtype  float_dtype = core::Float32, core::Dtype  int_dtype = core::Int64, const core::Device &  device = core::Device("CPU:0")  )

static

Create a cone triangle mesh.

Parameters

radius	defines the radius of the cone.
height	defines the height of the cone. The axis of the cone will be from (0, 0, 0) to (0, 0, height).
resolution	defines the resolution of the cone. The circle will be split into resolution segments.
split	defines the number of segments along the height direction.
float_dtype	Float32 or Float64, used to store floating point values, e.g. vertices, normals, colors.
int_dtype	Int32 or Int64, used to store index values, e.g. triangles.
device	The device where the resulting TriangleMesh resides in.

CreateCoordinateFrame()

TriangleMesh open3d::t::geometry::TriangleMesh::CreateCoordinateFrame ( double  size = 1.0, const Eigen::Vector3d &  origin = Eigen::Vector3d(0.0, 0.0, 0.0), core::Dtype  float_dtype = core::Float32, core::Dtype  int_dtype = core::Int64, const core::Device &  device = core::Device("CPU:0")  )

static

Create a coordinate frame mesh.

Parameters

size	defines the size of the coordinate frame.
origin	defines the origin of the coordinate frame.
float_dtype	Float32 or Float64, used to store floating point values, e.g. vertices, normals, colors.
int_dtype	Int32 or Int64, used to store index values, e.g. triangles.
device	The device where the resulting TriangleMesh resides in.

CreateCylinder()

TriangleMesh open3d::t::geometry::TriangleMesh::CreateCylinder ( double  radius = 1.0, double  height = 2.0, int  resolution = 20, int  split = 4, core::Dtype  float_dtype = core::Float32, core::Dtype  int_dtype = core::Int64, const core::Device &  device = core::Device("CPU:0")  )

static

Create a cylinder triangle mesh.

Parameters

radius	defines the radius of the cylinder.
height	defines the height of the cylinder. The axis of the cylinder will be from (0, 0, -height/2) to (0, 0, height/2).
resolution	defines the resolution of the cylinder. The circle will be split into resolution segments
split	defines the number of segments along the height direction.
float_dtype	Float32 or Float64, used to store floating point values, e.g. vertices, normals, colors.
int_dtype	Int32 or Int64, used to store index values, e.g. triangles.
device	The device where the resulting TriangleMesh resides in.

CreateIcosahedron()

TriangleMesh open3d::t::geometry::TriangleMesh::CreateIcosahedron ( double  radius = 1.0, core::Dtype  float_dtype = core::Float32, core::Dtype  int_dtype = core::Int64, const core::Device &  device = core::Device("CPU:0")  )

static

Create a icosahedron triangle mesh. The centroid of the mesh will be placed at (0, 0, 0) and the vertices have a distance of radius to the center.

Parameters

radius	defines the distance from centroid to mesh vetices.
float_dtype	Float32 or Float64, used to store floating point values, e.g. vertices, normals, colors.
int_dtype	Int32 or Int64, used to store index values, e.g. triangles.
device	The device where the resulting TriangleMesh resides in.

CreateMobius()

TriangleMesh open3d::t::geometry::TriangleMesh::CreateMobius ( int  length_split = 70, int  width_split = 15, int  twists = 1, double  radius = 1, double  flatness = 1, double  width = 1, double  scale = 1, core::Dtype  float_dtype = core::Float32, core::Dtype  int_dtype = core::Int64, const core::Device &  device = core::Device("CPU:0")  )

static

Create a Mobius strip.

Parameters

length_split	defines the number of segments along the Mobius strip.
width_split	defines the number of segments along the width of the Mobius strip.
twists	defines the number of twists of the strip.
radius	defines the radius of the Mobius strip.
flatness	controls the height of the strip.
width	controls the width of the Mobius strip.
scale	is used to scale the entire Mobius strip.
float_dtype	Float32 or Float64, used to store floating point values, e.g. vertices, normals, colors.
int_dtype	Int32 or Int64, used to store index values, e.g. triangles.
device	The device where the resulting TriangleMesh resides in.

CreateOctahedron()

TriangleMesh open3d::t::geometry::TriangleMesh::CreateOctahedron ( double  radius = 1.0, core::Dtype  float_dtype = core::Float32, core::Dtype  int_dtype = core::Int64, const core::Device &  device = core::Device("CPU:0")  )

static

Create a octahedron triangle mesh. The centroid of the mesh will be placed at (0, 0, 0) and the vertices have a distance of radius to the center.

Parameters

radius	defines the distance from centroid to mesh vetices.
float_dtype	Float32 or Float64, used to store floating point values, e.g. vertices, normals, colors.
int_dtype	Int32 or Int64, used to store index values, e.g. triangles.
device	The device where the resulting TriangleMesh resides in.

CreateSphere()

TriangleMesh open3d::t::geometry::TriangleMesh::CreateSphere ( double  radius = 1.0, int  resolution = 20, core::Dtype  float_dtype = core::Float32, core::Dtype  int_dtype = core::Int64, const core::Device &  device = core::Device("CPU:0")  )

static

Create a sphere triangle mesh. The sphere with radius will be centered at (0, 0, 0). Its axis is aligned with z-axis.

Parameters

radius	defines the radius of the sphere.
resolution	defines the resolution of the sphere. The longitudes will be split into resolution segments (i.e. there are resolution + 1 latitude lines including the north and south pole). The latitudes will be split into `2 * resolution segments (i.e. there are 2 * resolution longitude lines.)
float_dtype	Float32 or Float64, used to store floating point values, e.g. vertices, normals, colors.
int_dtype	Int32 or Int64, used to store index values, e.g. triangles.
device	The device where the resulting TriangleMesh resides in.

CreateTetrahedron()

TriangleMesh open3d::t::geometry::TriangleMesh::CreateTetrahedron ( double  radius = 1.0, core::Dtype  float_dtype = core::Float32, core::Dtype  int_dtype = core::Int64, const core::Device &  device = core::Device("CPU:0")  )

static

Create a tetrahedron triangle mesh. The centroid of the mesh will be placed at (0, 0, 0) and the vertices have a distance of radius to the center.

Parameters

radius	defines the distance from centroid to mesh vetices.
float_dtype	Float32 or Float64, used to store floating point values, e.g. vertices, normals, colors.
int_dtype	Int32 or Int64, used to store index values, e.g. triangles.
device	The device where the resulting TriangleMesh resides in.

CreateText()

TriangleMesh open3d::t::geometry::TriangleMesh::CreateText ( const std::string &  text, double  depth = 0.0, core::Dtype  float_dtype = core::Float32, core::Dtype  int_dtype = core::Int64, const core::Device &  device = core::Device("CPU:0")  )

static

Create a text triangle mesh.

Parameters

text	The text for generating the mesh. ASCII characters 32-126 are supported (includes alphanumeric characters and punctuation). In addition the line feed ' ' is supported to start a new line.
depth	The depth of the generated mesh. If depth is 0 then a flat mesh will be generated.
int_dtype	Int32 or Int64, used to store index values, e.g. triangles.
device	The device where the resulting TriangleMesh resides in.

CreateTorus()

TriangleMesh open3d::t::geometry::TriangleMesh::CreateTorus ( double  torus_radius = 1.0, double  tube_radius = 0.5, int  radial_resolution = 30, int  tubular_resolution = 20, core::Dtype  float_dtype = core::Float32, core::Dtype  int_dtype = core::Int64, const core::Device &  device = core::Device("CPU:0")  )

static

Create a torus triangle mesh.

Parameters

torus_radius	defines the radius from the center of the torus to the center of the tube.
tube_radius	defines the radius of the torus tube.
radial_resolution	defines the number of segments along the radial direction.
tubular_resolution	defines the number of segments along the tubular direction.
float_dtype	Float32 or Float64, used to store floating point values, e.g. vertices, normals, colors.
int_dtype	Int32 or Int64, used to store index values, e.g. triangles.
device	The device where the resulting TriangleMesh resides in.

ExtrudeLinear()

TriangleMesh open3d::t::geometry::TriangleMesh::ExtrudeLinear	(	const core::Tensor &	vector,
		double	scale = 1.0,
		bool	capping = true
	)		const

Sweeps the triangle mesh along a direction vector.

Parameters

vector	The direction vector.
scale	Scalar factor which essentially scales the direction vector.
capping	If true adds caps to the mesh.

Returns

A triangle mesh with the result of the sweep operation.

ExtrudeRotation()

TriangleMesh open3d::t::geometry::TriangleMesh::ExtrudeRotation	(	double	angle,
		const core::Tensor &	axis,
		int	resolution = 16,
		double	translation = 0.0,
		bool	capping = true
	)		const

Sweeps the triangle mesh rotationally about an axis.

Parameters

angle	The rotation angle in degree.
axis	The rotation axis.
resolution	The resolution defines the number of intermediate sweeps about the rotation axis.
translation	The translation along the rotation axis.
capping	If true adds caps to the mesh.

Returns

A triangle mesh with the result of the sweep operation.

FillHoles()

TriangleMesh open3d::t::geometry::TriangleMesh::FillHoles

(

double

hole_size = 1e6

)

const

Fill holes by triangulating boundary edges.

This function always uses the CPU device.

Parameters

hole_size

This is the approximate threshold for filling holes. The value describes the maximum radius of holes to be filled.

Returns

New mesh after filling holes.

FromLegacy()

geometry::TriangleMesh open3d::t::geometry::TriangleMesh::FromLegacy ( const open3d::geometry::TriangleMesh &  mesh_legacy, core::Dtype  float_dtype = core::Float32, core::Dtype  int_dtype = core::Int64, const core::Device &  device = core::Device("CPU:0")  )

static

Create a TriangleMesh from a legacy Open3D TriangleMesh.

Parameters

mesh_legacy	Legacy Open3D TriangleMesh.
float_dtype	Float32 or Float64, used to store floating point values, e.g. vertices, normals, colors.
int_dtype	Int32 or Int64, used to store index values, e.g. triangles.
device	The device where the resulting TriangleMesh resides in.

GetAxisAlignedBoundingBox()

AxisAlignedBoundingBox open3d::t::geometry::TriangleMesh::GetAxisAlignedBoundingBox

(

)

const

Create an axis-aligned bounding box from vertex attribute "positions".

GetCenter()

core::Tensor open3d::t::geometry::TriangleMesh::GetCenter ( ) const

inline

GetDevice()

core::Device open3d::t::geometry::TriangleMesh::GetDevice ( ) const

inlineoverridevirtual

Returns the device of the geometry.

Implements open3d::t::geometry::Geometry.

GetMaxBound()

core::Tensor open3d::t::geometry::TriangleMesh::GetMaxBound ( ) const

inline

GetMinBound()

core::Tensor open3d::t::geometry::TriangleMesh::GetMinBound ( ) const

inline

GetOrientedBoundingBox()

OrientedBoundingBox open3d::t::geometry::TriangleMesh::GetOrientedBoundingBox

(

)

const

Create an oriented bounding box from vertex attribute "positions".

GetSurfaceArea()

double open3d::t::geometry::TriangleMesh::GetSurfaceArea

(

)

const

Function that computes the surface area of the mesh, i.e. the sum of the individual triangle surfaces.

GetTriangleAttr() [1/4]

TensorMap& open3d::t::geometry::TriangleMesh::GetTriangleAttr ( )

inline

Getter for triangle_attr_ TensorMap.

GetTriangleAttr() [2/4]

const TensorMap& open3d::t::geometry::TriangleMesh::GetTriangleAttr ( ) const

inline

Getter for triangle_attr_ TensorMap. Used in Pybind.

GetTriangleAttr() [3/4]

core::Tensor& open3d::t::geometry::TriangleMesh::GetTriangleAttr ( const std::string &  key )

inline

Get triangle attributes in triangle_attr_. Throws exception if the attribute does not exist.

Parameters

key	Attribute name.

GetTriangleAttr() [4/4]

const core::Tensor& open3d::t::geometry::TriangleMesh::GetTriangleAttr ( const std::string &  key ) const

inline

Get triangle attributes in triangle_attr_. Throws exception if the attribute does not exist.

Parameters

key	Attribute name.

GetTriangleColors() [1/2]

core::Tensor& open3d::t::geometry::TriangleMesh::GetTriangleColors ( )

inline

Get the value of the "colors" attribute in triangle_attr_. Convenience function.

GetTriangleColors() [2/2]

const core::Tensor& open3d::t::geometry::TriangleMesh::GetTriangleColors ( ) const

inline

Get the value of the "colors" attribute in triangle_attr_. Convenience function.

GetTriangleIndices() [1/2]

core::Tensor& open3d::t::geometry::TriangleMesh::GetTriangleIndices ( )

inline

Get the value of the "indices" attribute in triangle_attr_. Convenience function.

GetTriangleIndices() [2/2]

const core::Tensor& open3d::t::geometry::TriangleMesh::GetTriangleIndices ( ) const

inline

Get the value of the "indices" attribute in triangle_attr_. Convenience function.

GetTriangleNormals() [1/2]

core::Tensor& open3d::t::geometry::TriangleMesh::GetTriangleNormals ( )

inline

Get the value of the "normals" attribute in triangle_attr_. Convenience function.

GetTriangleNormals() [2/2]

const core::Tensor& open3d::t::geometry::TriangleMesh::GetTriangleNormals ( ) const

inline

Get the value of the "normals" attribute in triangle_attr_. Convenience function.

GetVertexAttr() [1/4]

TensorMap& open3d::t::geometry::TriangleMesh::GetVertexAttr ( )

inline

Getter for vertex_attr_ TensorMap.

GetVertexAttr() [2/4]

const TensorMap& open3d::t::geometry::TriangleMesh::GetVertexAttr ( ) const

inline

Getter for vertex_attr_ TensorMap. Used in Pybind.

GetVertexAttr() [3/4]

core::Tensor& open3d::t::geometry::TriangleMesh::GetVertexAttr ( const std::string &  key )

inline

Get vertex attributes in vertex_attr_. Throws exception if the attribute does not exist.

Parameters

key	Attribute name.

GetVertexAttr() [4/4]

const core::Tensor& open3d::t::geometry::TriangleMesh::GetVertexAttr ( const std::string &  key ) const

inline

Get vertex attributes. Throws exception if the attribute does not exist.

Parameters

key	Attribute name.

GetVertexColors() [1/2]

core::Tensor& open3d::t::geometry::TriangleMesh::GetVertexColors ( )

inline

Get the value of the "colors" attribute in vertex_attr_. Convenience function.

GetVertexColors() [2/2]

const core::Tensor& open3d::t::geometry::TriangleMesh::GetVertexColors ( ) const

inline

Get the value of the "colors" attribute in vertex_attr_. Convenience function.

GetVertexNormals() [1/2]

core::Tensor& open3d::t::geometry::TriangleMesh::GetVertexNormals ( )

inline

Get the value of the "normals" attribute in vertex_attr_. Convenience function.

GetVertexNormals() [2/2]

const core::Tensor& open3d::t::geometry::TriangleMesh::GetVertexNormals ( ) const

inline

Get the value of the "normals" attribute in vertex_attr_. Convenience function.

GetVertexPositions() [1/2]

core::Tensor& open3d::t::geometry::TriangleMesh::GetVertexPositions ( )

inline

Get the value of the "positions" attribute in vertex_attr_. Convenience function.

GetVertexPositions() [2/2]

const core::Tensor& open3d::t::geometry::TriangleMesh::GetVertexPositions ( ) const

inline

Get the value of the "positions" attribute in vertex_attr_. Convenience function.

HasTriangleAttr()

bool open3d::t::geometry::TriangleMesh::HasTriangleAttr ( const std::string &  key ) const

inline

Returns true if all of the following are true in triangle_attr_: 1) attribute key exist 2) attribute's length as triangles' length 3) attribute's length > 0

HasTriangleColors()

bool open3d::t::geometry::TriangleMesh::HasTriangleColors ( ) const

inline

Returns true if all of the following are true in triangle_attr_: 1) attribute "colors" exist 2) attribute "colors"'s length as vertices' length 3) attribute "colors"'s length > 0 Convenience function.

HasTriangleIndices()

bool open3d::t::geometry::TriangleMesh::HasTriangleIndices ( ) const

inline

Check if the "indices" attribute's value in triangle_attr_ has length

0.

Convenience function.

HasTriangleNormals()

bool open3d::t::geometry::TriangleMesh::HasTriangleNormals ( ) const

inline

Returns true if all of the following are true in triangle_attr_: 1) attribute "normals" exist 2) attribute "normals"'s length as vertices' length 3) attribute "normals"'s length > 0 Convenience function.

HasVertexAttr()

bool open3d::t::geometry::TriangleMesh::HasVertexAttr ( const std::string &  key ) const

inline

Returns true if all of the following are true in vertex_attr_: 1) attribute key exist 2) attribute's length as vertices' length 3) attribute's length > 0

HasVertexColors()

bool open3d::t::geometry::TriangleMesh::HasVertexColors ( ) const

inline

Returns true if all of the following are true in vertex_attr_: 1) attribute "colors" exist 2) attribute "colors"'s length as vertices' length 3) attribute "colors"'s length > 0 Convenience function.

HasVertexNormals()

bool open3d::t::geometry::TriangleMesh::HasVertexNormals ( ) const

inline

Returns true if all of the following are true in vertex_attr_: 1) attribute "normals" exist 2) attribute "normals"'s length as vertices' length 3) attribute "normals"'s length > 0 Convenience function.

HasVertexPositions()

bool open3d::t::geometry::TriangleMesh::HasVertexPositions ( ) const

inline

Check if the "positions" attribute's value in vertex_attr_ has length > 0. Convenience function.

IsEmpty()

bool open3d::t::geometry::TriangleMesh::IsEmpty ( ) const

inlineoverridevirtual

Returns !HasVertexPositions(), triangles are ignored.

Implements open3d::t::geometry::Geometry.

NormalizeNormals()

TriangleMesh & open3d::t::geometry::TriangleMesh::NormalizeNormals

(

)

Normalize both triangle normals and vertex normals to length 1.

PCAPartition()

int open3d::t::geometry::TriangleMesh::PCAPartition

(

int

max_faces

)

Partition the mesh by recursively doing PCA. This function creates a new triangle attribute with the name "partition_ids".

Parameters

max_faces

The maximum allowed number of faces in a partition.

Returns

The number of partitions.

RemoveTriangleAttr()

void open3d::t::geometry::TriangleMesh::RemoveTriangleAttr ( const std::string &  key )

inline

Removes triangle attribute by key value. Primary attribute "indices" cannot be removed. Throws warning if attribute key does not exists.

Parameters

key	Attribute name.

RemoveVertexAttr()

void open3d::t::geometry::TriangleMesh::RemoveVertexAttr ( const std::string &  key )

inline

Removes vertex attribute by key value. Primary attribute "positions" cannot be removed. Throws warning if attribute key does not exists.

Parameters

key	Attribute name.

Rotate()

TriangleMesh & open3d::t::geometry::TriangleMesh::Rotate	(	const core::Tensor &	R,
		const core::Tensor &	center
	)

Rotates the VertexPositions, VertexNormals and TriangleNormals (if exists).

Parameters

R	Rotation [Tensor of dim {3,3}].
center	Center [Tensor of dim {3}] about which the TriangleMesh is to be scaled.

Returns

Rotated TriangleMesh

Scale()

TriangleMesh & open3d::t::geometry::TriangleMesh::Scale	(	double	scale,
		const core::Tensor &	center
	)

Scales the VertexPositions of the TriangleMesh.

Parameters

scale	Scale [double] of dimension
center	Center [Tensor of dim {3}] about which the TriangleMesh is to be scaled.

Returns

Scaled TriangleMesh

SelectByIndex()

TriangleMesh open3d::t::geometry::TriangleMesh::SelectByIndex

(

const core::Tensor &

indices

)

const

Returns a new mesh with the vertices selected by a vector of indices. If an item from the indices list exceeds the max vertex number of the mesh or has a negative value, it is ignored.

Parameters

indices

An integer list of indices. Duplicates are allowed, but ignored. Signed and unsigned integral types are allowed.

Returns

A new mesh with the selected vertices and faces built from the selected vertices. If the original mesh is empty, return an empty mesh.

SelectFacesByMask()

TriangleMesh open3d::t::geometry::TriangleMesh::SelectFacesByMask

(

const core::Tensor &

mask

)

const

Returns a new mesh with the faces selected by a boolean mask.

Parameters

mask	A boolean mask with the shape (N) with N as the number of faces in the mesh.

Returns

A new mesh with the selected faces. If the original mesh is empty, return an empty mesh.

SetTriangleAttr()

void open3d::t::geometry::TriangleMesh::SetTriangleAttr ( const std::string &  key, const core::Tensor &  value  )

inline

Set triangle attributes. If the attribute key already exists, its value will be overwritten, otherwise, the new key will be created.

Parameters

key	Attribute name.
value	A tensor.

SetTriangleColors()

void open3d::t::geometry::TriangleMesh::SetTriangleColors ( const core::Tensor &  value )

inline

Set the value of the "colors" attribute in triangle_attr_. This is a convenience function.

SetTriangleIndices()

void open3d::t::geometry::TriangleMesh::SetTriangleIndices ( const core::Tensor &  value )

inline

Set the value of the "indices" attribute in triangle_attr_.

SetTriangleNormals()

void open3d::t::geometry::TriangleMesh::SetTriangleNormals ( const core::Tensor &  value )

inline

Set the value of the "normals" attribute in triangle_attr_. This is a convenience function.

SetVertexAttr()

void open3d::t::geometry::TriangleMesh::SetVertexAttr ( const std::string &  key, const core::Tensor &  value  )

inline

Set vertex attributes. If the attribute key already exists, its value will be overwritten, otherwise, the new key will be created.

Parameters

key	Attribute name.
value	A tensor.

SetVertexColors()

void open3d::t::geometry::TriangleMesh::SetVertexColors ( const core::Tensor &  value )

inline

Set the value of the "colors" attribute in vertex_attr_. Convenience function.

SetVertexNormals()

void open3d::t::geometry::TriangleMesh::SetVertexNormals ( const core::Tensor &  value )

inline

Set the value of the "normals" attribute in vertex_attr_. This is a convenience function.

SetVertexPositions()

void open3d::t::geometry::TriangleMesh::SetVertexPositions ( const core::Tensor &  value )

inline

Set the value of the "positions" attribute in vertex_attr_. Convenience function.

SimplifyQuadricDecimation()

TriangleMesh open3d::t::geometry::TriangleMesh::SimplifyQuadricDecimation	(	double	target_reduction,
		bool	preserve_volume = true
	)		const

Function to simplify mesh using Quadric Error Metric Decimation by Garland and Heckbert.

This function always uses the CPU device.

Parameters

target_reduction	The factor of triangles to delete, i.e., setting this to 0.9 will return a mesh with about 10% of the original triangle count. It is not guaranteed that the target reduction factor will be reached.
preserve_volume	If set to true this enables volume preservation which reduces the error in triangle normal direction.

Returns

Simplified TriangleMesh.

SlicePlane()

LineSet open3d::t::geometry::TriangleMesh::SlicePlane	(	const core::Tensor &	point,
		const core::Tensor &	normal,
		const std::vector< double >	contour_values = {0.0}
	)		const

Extract contour slices given a plane. This method extracts slices as LineSet from the mesh at specific contour values defined by the specified plane.

Parameters

point	A point on the plane as [Tensor of dim {3}].
normal	The normal of the plane as [Tensor of dim {3}].
contour_values	Contour values at which slices will be generated. The value describes the signed distance to the plane.

Returns

LineSet with the extracted contours.

To()

TriangleMesh open3d::t::geometry::TriangleMesh::To	(	const core::Device &	device,
		bool	copy = false
	)		const

Transfer the triangle mesh to a specified device.

Parameters

device	The targeted device to convert to.
copy	If true, a new triangle mesh is always created; if false, the copy is avoided when the original triangle mesh is already on the targeted device.

ToLegacy()

open3d::geometry::TriangleMesh open3d::t::geometry::TriangleMesh::ToLegacy

(

)

const

Convert to a legacy Open3D TriangleMesh.

ToString()

std::string open3d::t::geometry::TriangleMesh::ToString

(

)

const

Text description.

Transform()

TriangleMesh & open3d::t::geometry::TriangleMesh::Transform

(

const core::Tensor &

transformation

)

Transforms the VertexPositions, VertexNormals and TriangleNormals (if exist) of the TriangleMesh.

Transformation matrix is a 4x4 matrix. T (4x4) = [[ R(3x3) t(3x1) ], [ O(1x3) s(1x1) ]] (s = 1 for Transformation without scaling)

It applies the following general transform to each positions and normals. |x'| | R(0,0) R(0,1) R(0,2) t(0)| |x| |y'| = | R(1,0) R(1,1) R(1,2) t(1)| @ |y| |z'| | R(2,0) R(2,1) R(2,2) t(2)| |z| |w'| | O(0,0) O(0,1) O(0,2) s | |1|

[x, y, z] = [x', y', z'] / w'

Parameters

transformation

Transformation [Tensor of dim {4,4}].

Returns

Transformed TriangleMesh

Translate()

TriangleMesh & open3d::t::geometry::TriangleMesh::Translate	(	const core::Tensor &	translation,
		bool	relative = true
	)

Translates the VertexPositions of the TriangleMesh.

Parameters

translation	translation tensor of dimension {3}
relative	if true (default): translates relative to Center

Returns

Translated TriangleMesh

Field Documentation

device_

core::Device open3d::t::geometry::TriangleMesh::device_ = core::Device("CPU:0")

protected

triangle_attr_

TensorMap open3d::t::geometry::TriangleMesh::triangle_attr_

protected

vertex_attr_

TensorMap open3d::t::geometry::TriangleMesh::vertex_attr_

protected

---

The documentation for this class was generated from the following files:

• /home/runner/work/Open3D/Open3D/cpp/open3d/t/geometry/TriangleMesh.h (b9e049c (Sun Dec 31 11:36:26 2023 -0800))
• /home/runner/work/Open3D/Open3D/cpp/open3d/t/geometry/TriangleMesh.cpp (b9e049c (Sun Dec 31 11:36:26 2023 -0800))
• /home/runner/work/Open3D/Open3D/cpp/open3d/t/geometry/TriangleMeshFactory.cpp (b9e049c (Sun Dec 31 11:36:26 2023 -0800))
