The base geometry class for 2D geometries. More...
#include <Geometry2D.h>
Public Member Functions | |
| ~Geometry2D () override | |
| Geometry & | Clear () override=0 |
| Clear all elements in the geometry. More... | |
| bool | IsEmpty () const override=0 |
Returns true iff the geometry is empty. More... | |
| virtual Eigen::Vector2d | GetMinBound () const =0 |
| Returns min bounds for geometry coordinates. More... | |
| virtual Eigen::Vector2d | GetMaxBound () const =0 |
| Returns max bounds for geometry coordinates. More... | |
 Public Member Functions inherited from open3d::geometry::Geometry | |
| virtual | ~Geometry () |
| GeometryType | GetGeometryType () const |
| Returns one of registered geometry types. More... | |
| int | Dimension () const |
| Returns whether the geometry is 2D or 3D. More... | |
| std::string | GetName () const |
| void | SetName (const std::string &name) |
Protected Member Functions | |
| Geometry2D (GeometryType type) | |
| Parameterized Constructor. More... | |
| Protected Member Functions inherited from open3d::geometry::Geometry | |
| Geometry (GeometryType type, int dimension) | |
| Parameterized Constructor. More... | |
Additional Inherited Members | |
| Public Types inherited from open3d::geometry::Geometry | |
| enum | GeometryType { GeometryType::Unspecified = 0, GeometryType::PointCloud = 1, GeometryType::VoxelGrid = 2, GeometryType::Octree = 3, GeometryType::LineSet = 4, GeometryType::MeshBase = 5, GeometryType::TriangleMesh = 6, GeometryType::HalfEdgeTriangleMesh = 7, GeometryType::Image = 8, GeometryType::RGBDImage = 9, GeometryType::TetraMesh = 10, GeometryType::OrientedBoundingBox = 11, GeometryType::AxisAlignedBoundingBox = 12 } |
| Specifies possible geometry types. More... | |
Detailed Description
The base geometry class for 2D geometries.

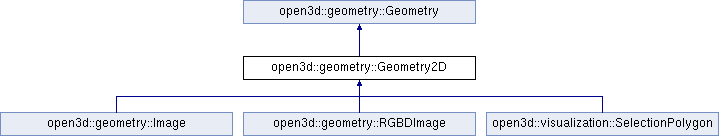

Main class for 2D geometries, Derives all data from Geometry Base class.
Constructor & Destructor Documentation
◆ ~Geometry2D()
|
inlineoverride |
◆ Geometry2D()
|
inlineprotected |
Parameterized Constructor.
- Parameters
-
type type of object based on GeometryType
Member Function Documentation
◆ Clear()
|
overridepure virtual |
Clear all elements in the geometry.
Implements open3d::geometry::Geometry.
Implemented in open3d::geometry::Image, open3d::visualization::SelectionPolygon, and open3d::geometry::RGBDImage.
◆ GetMaxBound()
|
pure virtual |
Returns max bounds for geometry coordinates.
Implemented in open3d::geometry::Image, open3d::visualization::SelectionPolygon, and open3d::geometry::RGBDImage.
◆ GetMinBound()
|
pure virtual |
Returns min bounds for geometry coordinates.
Implemented in open3d::geometry::Image, open3d::visualization::SelectionPolygon, and open3d::geometry::RGBDImage.
◆ IsEmpty()
|
overridepure virtual |
Returns true iff the geometry is empty.
Implements open3d::geometry::Geometry.
Implemented in open3d::geometry::Image, open3d::visualization::SelectionPolygon, and open3d::geometry::RGBDImage.
The documentation for this class was generated from the following file:
- /home/yixing/repo/Open3D/src/Open3D/Geometry/Geometry2D.h
