Transformation¶
The geometry types of Open3D have a number of transformation methods. In this tutorial we show how to use translate
, rotate
, scale
, and transform
.
Translate¶

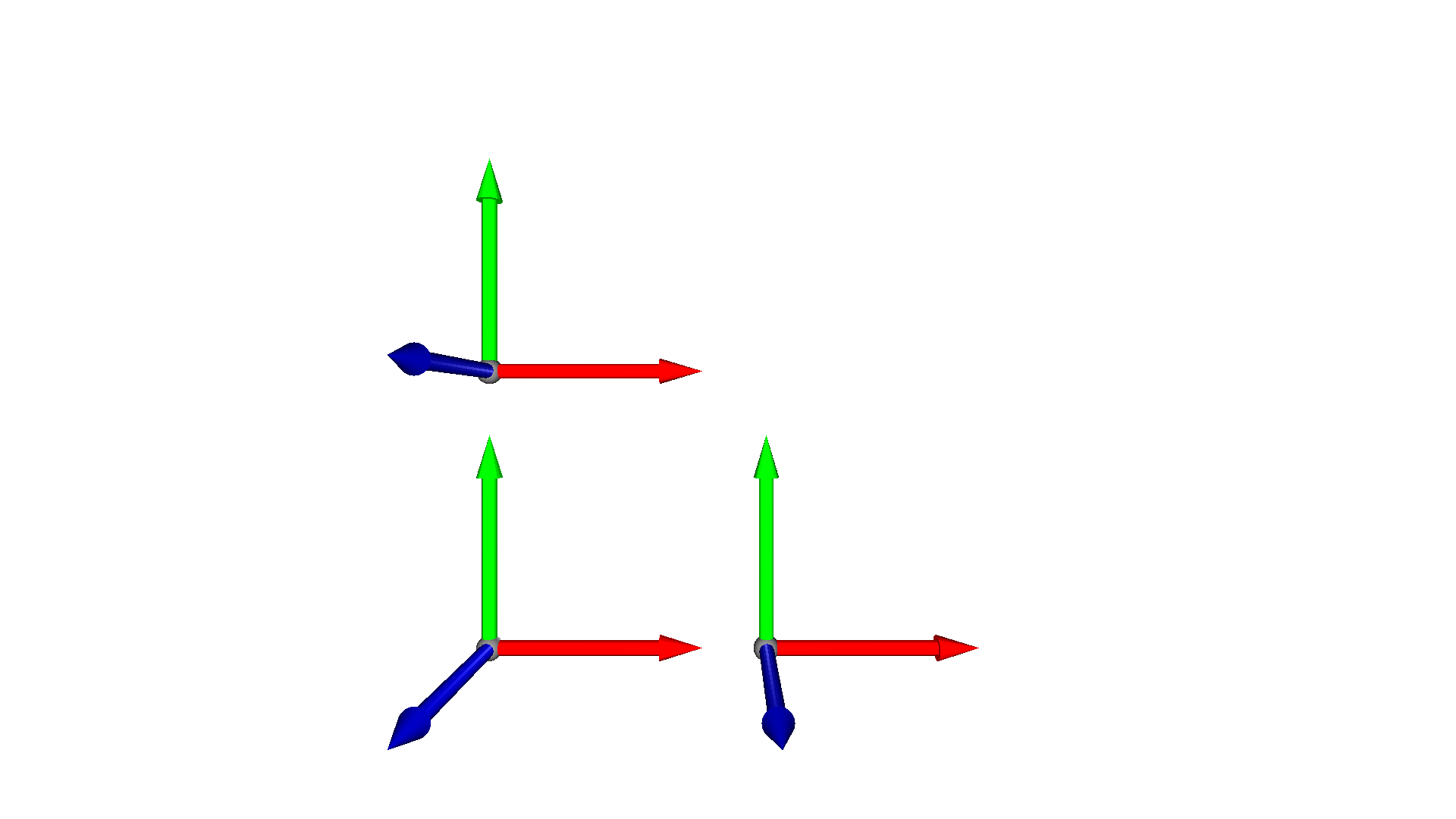

The first transformation method we want to look at is translate
. The translate method takes a single 3D vector \(t\) as input and translates all points/vertices of the geometry by this vector, \(v_t = v + t\). The code below shows how the mesh is translated once in the x-directon and once in the y-direction.
[2]:
mesh = o3d.geometry.TriangleMesh.create_coordinate_frame()
mesh_tx = copy.deepcopy(mesh).translate((1.3, 0, 0))
mesh_ty = copy.deepcopy(mesh).translate((0, 1.3, 0))
print(f'Center of mesh: {mesh.get_center()}')
print(f'Center of mesh tx: {mesh_tx.get_center()}')
print(f'Center of mesh ty: {mesh_ty.get_center()}')
o3d.visualization.draw_geometries([mesh, mesh_tx, mesh_ty])
Center of mesh: [0.05167549 0.05167549 0.05167549]
Center of mesh tx: [1.35167549 0.05167549 0.05167549]
Center of mesh ty: [0.05167549 1.35167549 0.05167549]
Note:
The method get_center
returns the mean of the TriangleMesh
vertices. That means that for a coordinate frame created at the origin [0,0,0]
, get_center
will return [0.05167549 0.05167549 0.05167549]
.

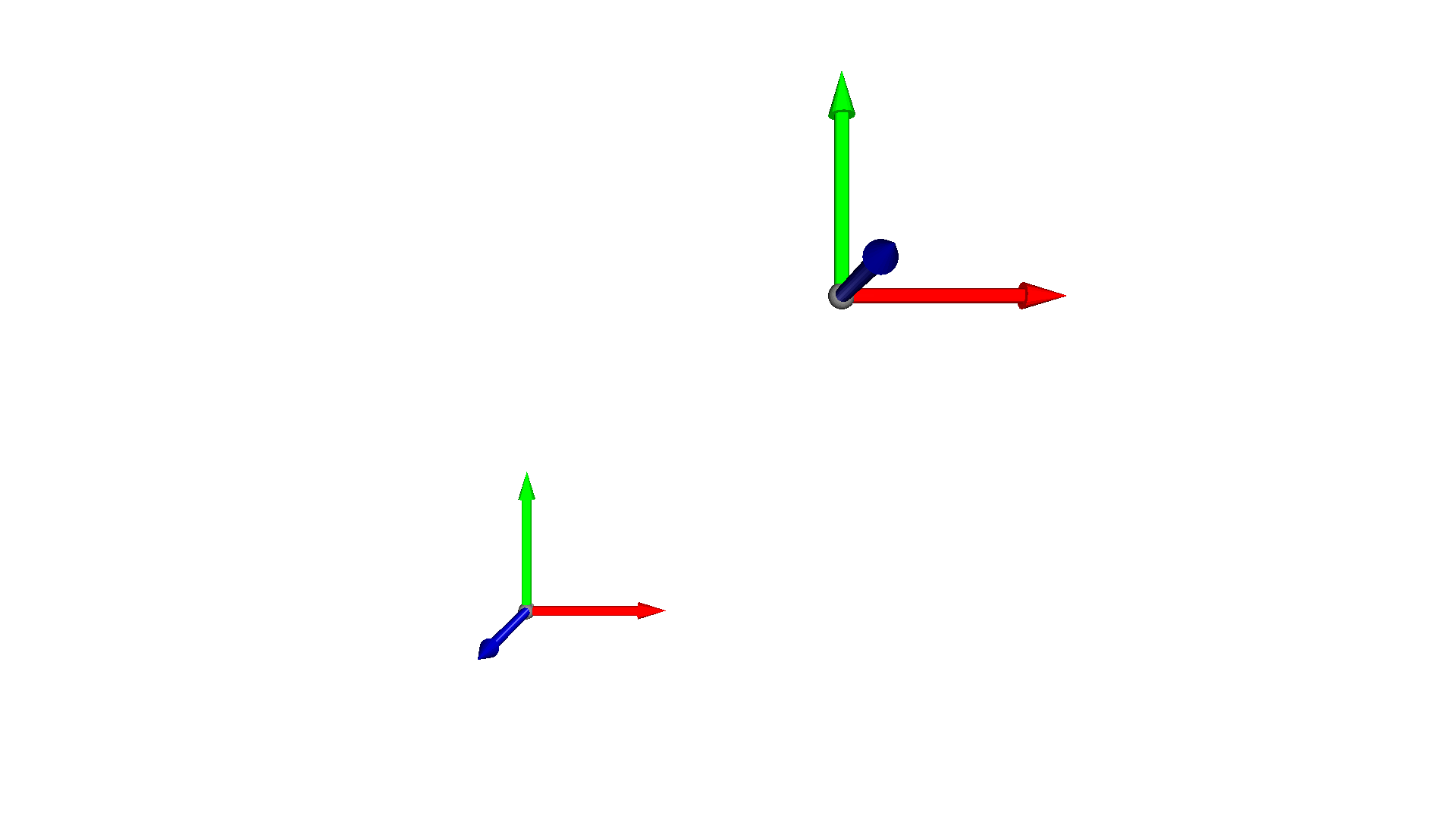

The method takes a second argument relative
that is by default set to True
. If set to False
, the center of the geometry is translated directly to the position specified in the first argument.
[3]:
mesh = o3d.geometry.TriangleMesh.create_coordinate_frame()
mesh_mv = copy.deepcopy(mesh).translate((2, 2, 2), relative=False)
print(f'Center of mesh: {mesh.get_center()}')
print(f'Center of translated mesh: {mesh_mv.get_center()}')
o3d.visualization.draw_geometries([mesh, mesh_mv])
Center of mesh: [0.05167549 0.05167549 0.05167549]
Center of translated mesh: [2. 2. 2.]
Rotation¶
The geometry types of Open3D can also be rotated with the method rotate
. It takes as first argument a rotation matrix R
. As rotations in 3D can be parametrized in a number of ways, Open3D provides convenience functions to convert from different parametrizations to rotation matrices:
Convert from Euler angles with
get_rotation_matrix_from_xyz
(wherexyz
can also be of the formyzx
,zxy
,xzy
,zyx
, andyxz
)Convert from Axis-angle representation with
get_rotation_matrix_from_axis_angle
Convert from Quaternions with
get_rotation_matrix_from_quaternion

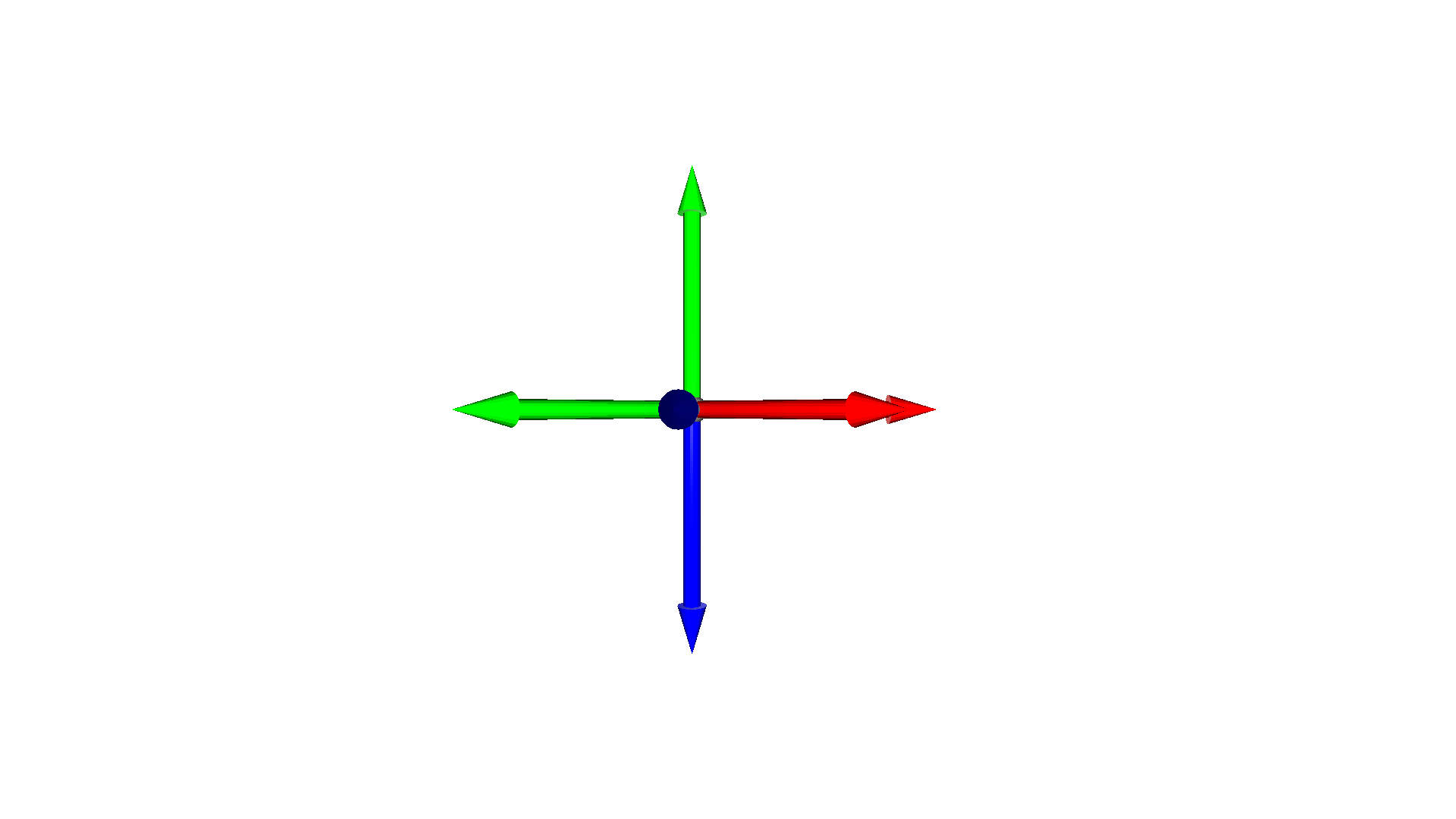

In the code below we rotate the mesh using Euler angles.
[4]:
mesh = o3d.geometry.TriangleMesh.create_coordinate_frame()
mesh_r = copy.deepcopy(mesh)
R = mesh.get_rotation_matrix_from_xyz((np.pi / 2, 0, np.pi / 4))
mesh_r.rotate(R, center=(0, 0, 0))
o3d.visualization.draw_geometries([mesh, mesh_r])

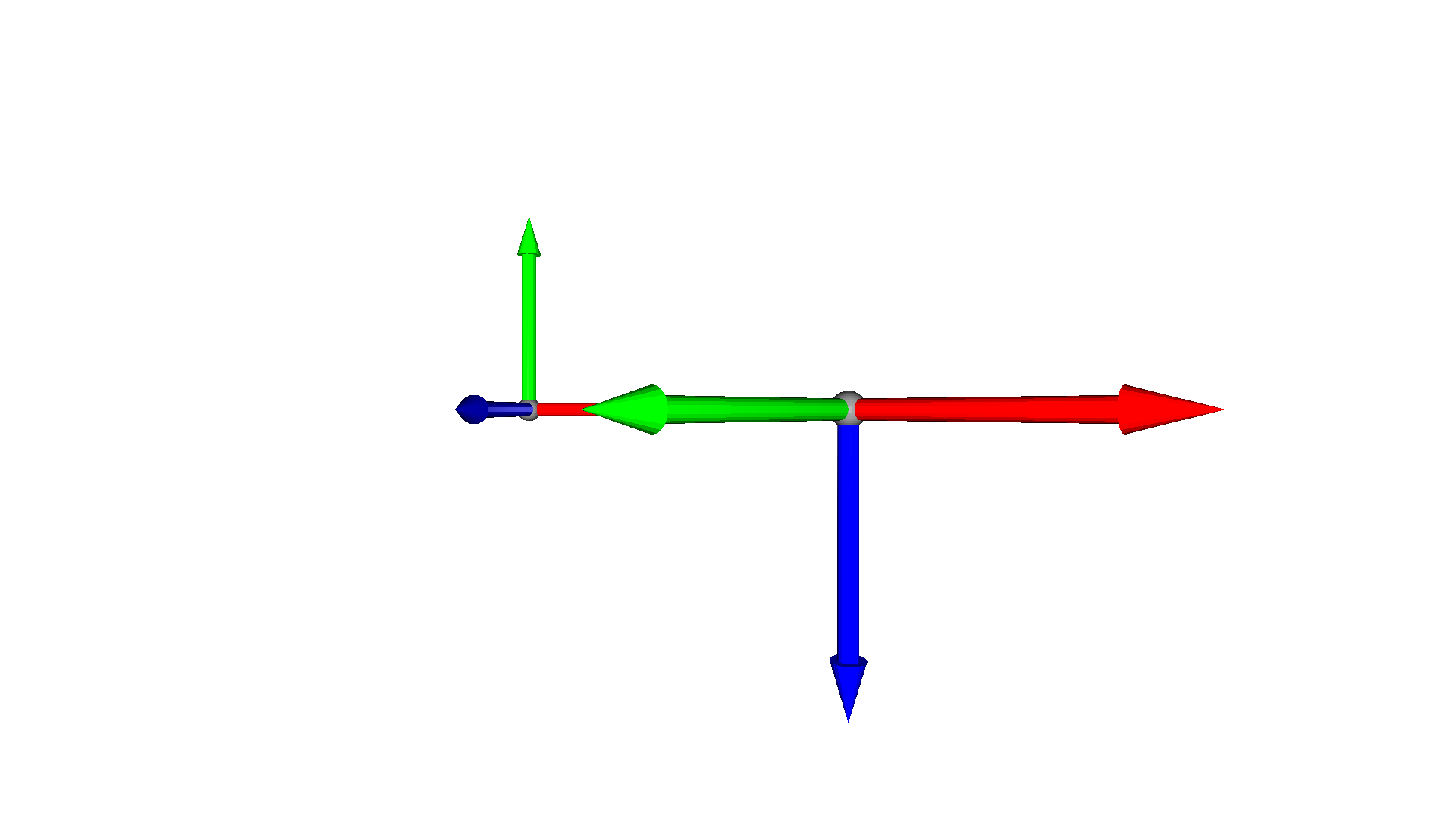

The function rotate
has a second argument center
that is by default set to True
. This indicates that the object is first centered prior to applying the rotation and then moved back to its previous center. If this argument is set to False
, then the rotation will be applied directly, such that the whole geometry is rotated around the coordinate center. This implies that the mesh center can be changed after the rotation.
[5]:
mesh = o3d.geometry.TriangleMesh.create_coordinate_frame()
mesh_r = copy.deepcopy(mesh).translate((2, 0, 0))
mesh_r.rotate(mesh.get_rotation_matrix_from_xyz((np.pi / 2, 0, np.pi / 4)),
center=(0, 0, 0))
o3d.visualization.draw_geometries([mesh, mesh_r])
Scale¶

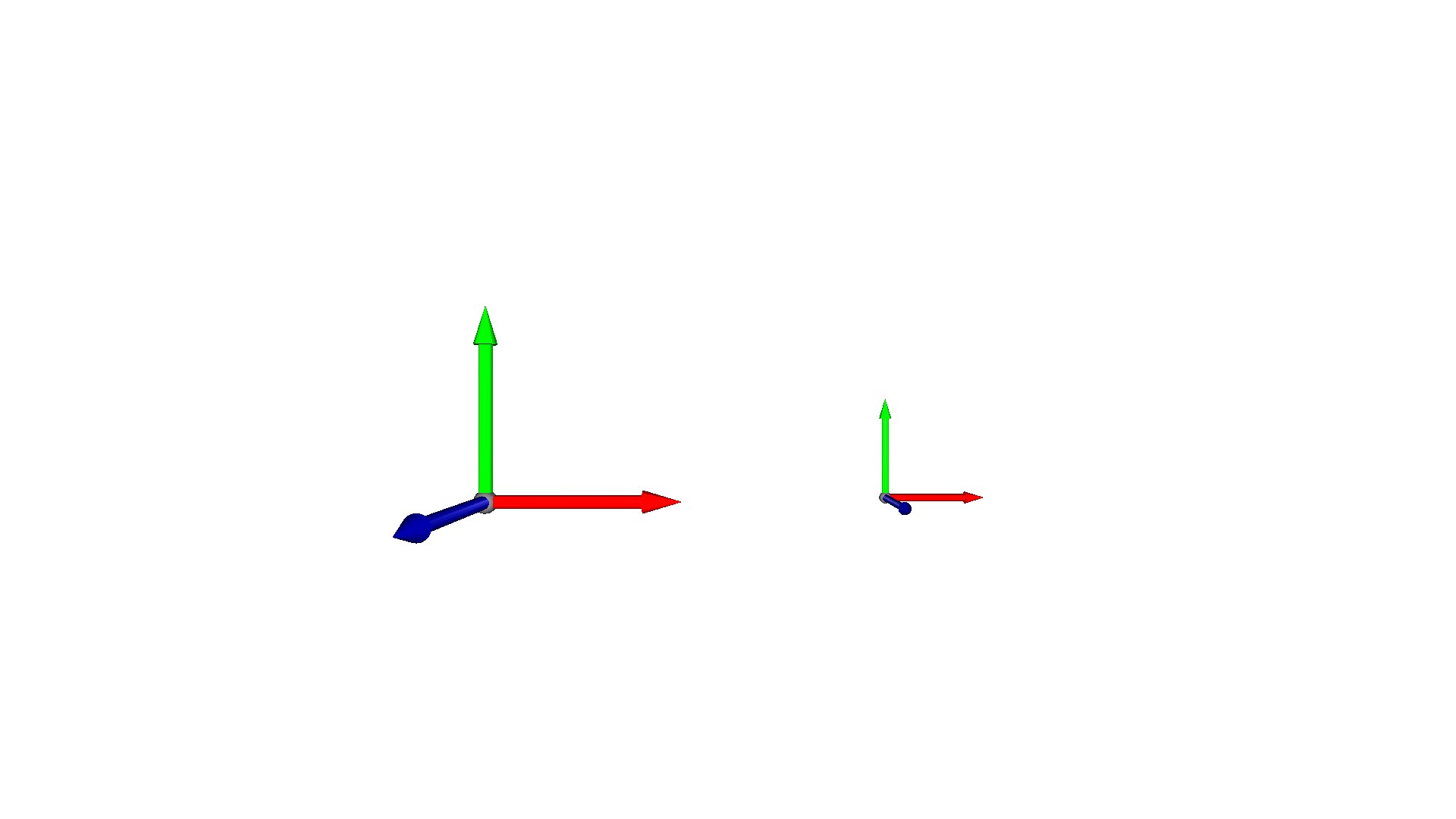

Vertices and points of Open3D geometry types can also be scaled using scale
, \(v_s = s \cdot v\).
[6]:
mesh = o3d.geometry.TriangleMesh.create_coordinate_frame()
mesh_s = copy.deepcopy(mesh).translate((2, 0, 0))
mesh_s.scale(0.5, center=mesh_s.get_center())
o3d.visualization.draw_geometries([mesh, mesh_s])

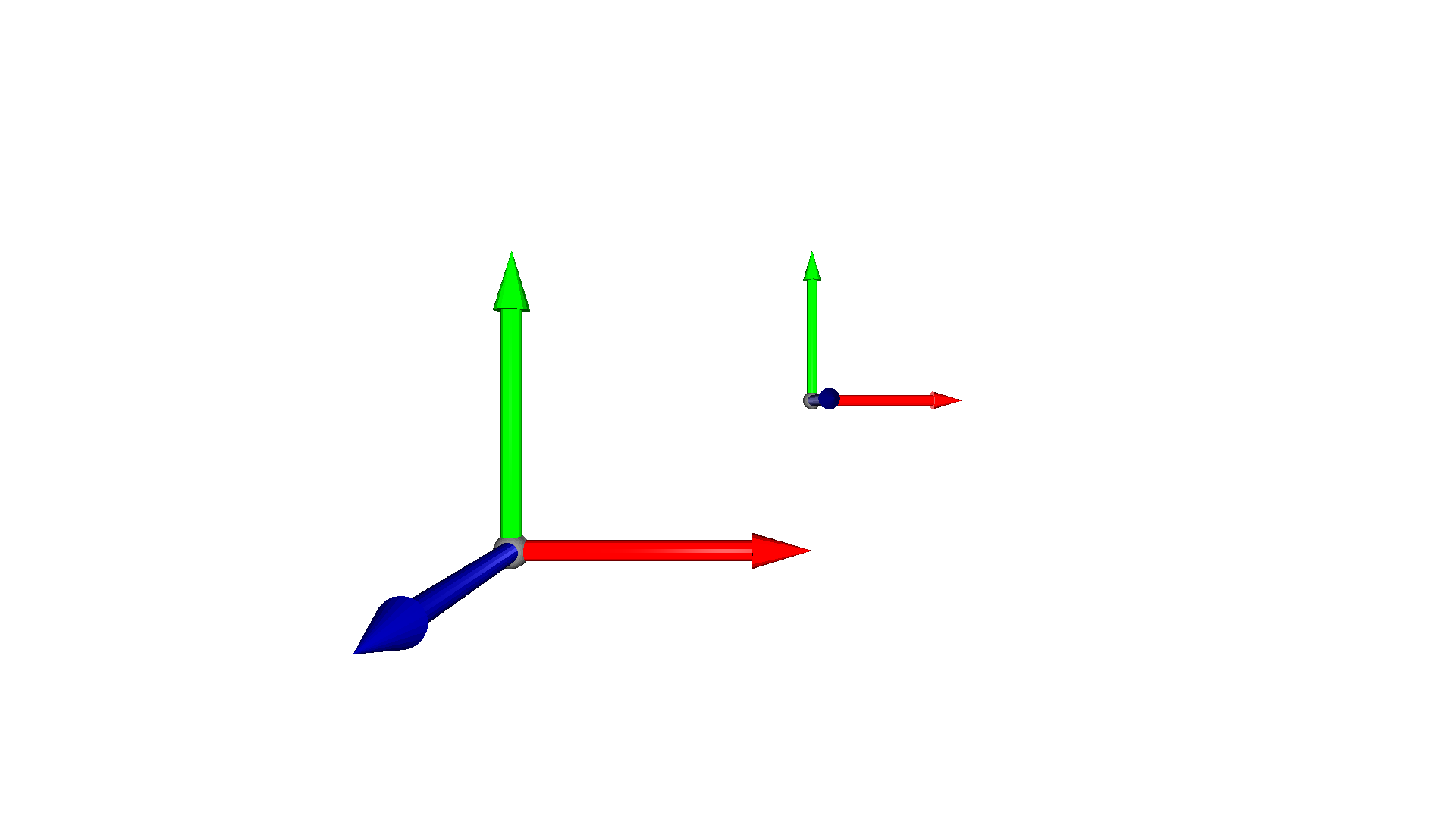

The scale
method also has a second argument center
that is set to True
by default. If it is set to False
, then the object is not centered prior to scaling such that the center of the object can move due to the scaling operation.
[7]:
mesh = o3d.geometry.TriangleMesh.create_coordinate_frame()
mesh_s = copy.deepcopy(mesh).translate((2, 1, 0))
mesh_s.scale(0.5, center=(0, 0, 0))
o3d.visualization.draw_geometries([mesh, mesh_s])
General transformation¶

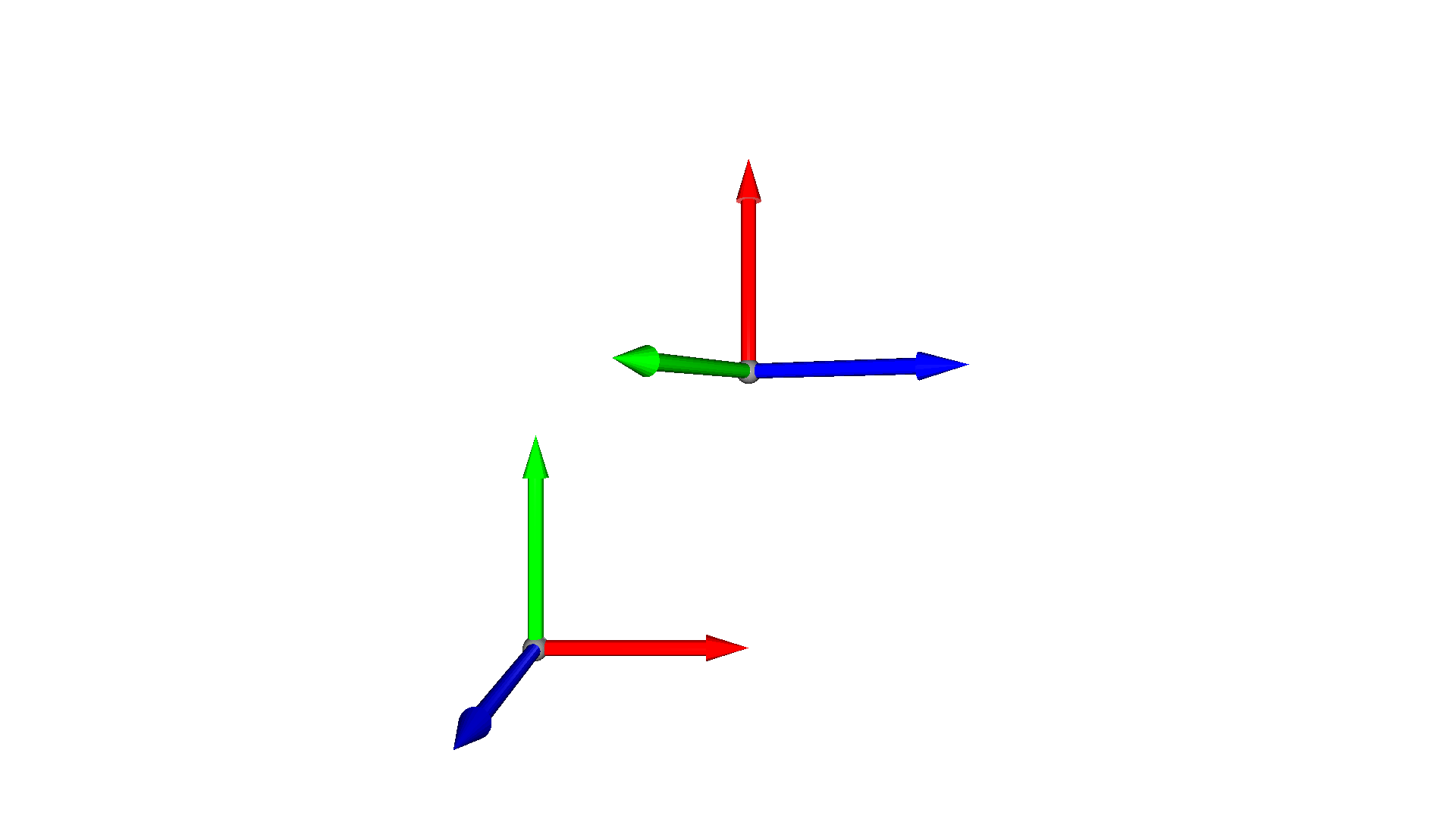

Open3D also supports a general transformation defined by a \(4\times4\) homogeneous transformation matrix using the method transform
.
[8]:
mesh = o3d.geometry.TriangleMesh.create_coordinate_frame()
T = np.eye(4)
T[:3, :3] = mesh.get_rotation_matrix_from_xyz((0, np.pi / 3, np.pi / 2))
T[0, 3] = 1
T[1, 3] = 1.3
print(T)
mesh_t = copy.deepcopy(mesh).transform(T)
o3d.visualization.draw_geometries([mesh, mesh_t])
[[ 3.06161700e-17 -5.00000000e-01 8.66025404e-01 1.00000000e+00]
[ 1.00000000e+00 6.12323400e-17 0.00000000e+00 1.30000000e+00]
[-5.30287619e-17 8.66025404e-01 5.00000000e-01 0.00000000e+00]
[ 0.00000000e+00 0.00000000e+00 0.00000000e+00 1.00000000e+00]]
