#include <Octree.h>

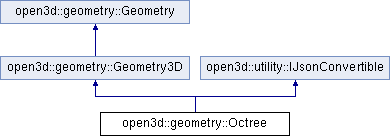

Inheritance diagram for open3d::geometry::Octree:

Public Member Functions
	Octree ()

	Octree (const size_t &max_depth)

	Octree (const size_t &max_depth, const Eigen::Vector3d &origin, const double &size)

	Octree (const Octree &src_octree)

	~Octree () override

Octree &	Clear () override
	Clear all elements in the geometry. More...

bool	IsEmpty () const override
	Returns `true` iff the geometry is empty. More...

Eigen::Vector3d	GetMinBound () const override
	Returns min bounds for geometry coordinates. More...

Eigen::Vector3d	GetMaxBound () const override
	Returns max bounds for geometry coordinates. More...

Eigen::Vector3d	GetCenter () const override
	Returns the center of the geometry coordinates. More...

AxisAlignedBoundingBox	GetAxisAlignedBoundingBox () const override
	Returns an axis-aligned bounding box of the geometry. More...

OrientedBoundingBox	GetOrientedBoundingBox () const override
	Returns an oriented bounding box of the geometry. More...

Octree &	Transform (const Eigen::Matrix4d &transformation) override
	Apply transformation (4x4 matrix) to the geometry coordinates. More...

Octree &	Translate (const Eigen::Vector3d &translation, bool relative=true) override
	Apply translation to the geometry coordinates. More...

Octree &	Scale (const double scale, bool center=true) override
	Apply scaling to the geometry coordinates. More...

Octree &	Rotate (const Eigen::Matrix3d &R, bool center=true) override
	Apply rotation to the geometry coordinates and normals. More...

bool	ConvertToJsonValue (Json::Value &value) const override

bool	ConvertFromJsonValue (const Json::Value &value) override

void	ConvertFromPointCloud (const geometry::PointCloud &point_cloud, double size_expand=0.01)

void	InsertPoint (const Eigen::Vector3d &point, const std::function< std::shared_ptr< OctreeLeafNode >()> &f_init, const std::function< void(std::shared_ptr< OctreeLeafNode >)> &f_update)
	Insert point. More...

void	Traverse (const std::function< void(const std::shared_ptr< OctreeNode > &, const std::shared_ptr< OctreeNodeInfo > &)> &f)

void	Traverse (const std::function< void(const std::shared_ptr< OctreeNode > &, const std::shared_ptr< OctreeNodeInfo > &)> &f) const

std::pair< std::shared_ptr< OctreeLeafNode >, std::shared_ptr< OctreeNodeInfo > >	LocateLeafNode (const Eigen::Vector3d &point) const

bool	operator== (const Octree &other) const
	Returns true if the Octree is completely the same, used for testing. More...

std::shared_ptr< geometry::VoxelGrid >	ToVoxelGrid () const
	Convert to voxel grid. More...

void	CreateFromVoxelGrid (const geometry::VoxelGrid &voxel_grid)
	Convert from voxel grid. More...

Public Member Functions inherited from open3d::geometry::Geometry3D
	~Geometry3D () override

Public Member Functions inherited from open3d::geometry::Geometry
virtual	~Geometry ()

GeometryType	GetGeometryType () const
	Returns one of registered geometry types. More...

int	Dimension () const
	Returns whether the geometry is 2D or 3D. More...

Public Member Functions inherited from open3d::utility::IJsonConvertible
virtual	~IJsonConvertible ()

Static Public Member Functions
static bool	IsPointInBound (const Eigen::Vector3d &point, const Eigen::Vector3d &origin, const double &size)

Static Public Member Functions inherited from open3d::geometry::Geometry3D
static Eigen::Matrix3d	GetRotationMatrixFromXYZ (const Eigen::Vector3d &rotation)
	Get Rotation Matrix from XYZ RotationType. More...

static Eigen::Matrix3d	GetRotationMatrixFromYZX (const Eigen::Vector3d &rotation)
	Get Rotation Matrix from YZX RotationType. More...

static Eigen::Matrix3d	GetRotationMatrixFromZXY (const Eigen::Vector3d &rotation)
	Get Rotation Matrix from ZXY RotationType. More...

static Eigen::Matrix3d	GetRotationMatrixFromXZY (const Eigen::Vector3d &rotation)
	Get Rotation Matrix from XZY RotationType. More...

static Eigen::Matrix3d	GetRotationMatrixFromZYX (const Eigen::Vector3d &rotation)
	Get Rotation Matrix from ZYX RotationType. More...

static Eigen::Matrix3d	GetRotationMatrixFromYXZ (const Eigen::Vector3d &rotation)
	Get Rotation Matrix from YXZ RotationType. More...

static Eigen::Matrix3d	GetRotationMatrixFromAxisAngle (const Eigen::Vector3d &rotation)
	Get Rotation Matrix from AxisAngle RotationType. More...

static Eigen::Matrix3d	GetRotationMatrixFromQuaternion (const Eigen::Vector4d &rotation)
	Get Rotation Matrix from Quaternion. More...

Static Public Member Functions inherited from open3d::utility::IJsonConvertible
static bool	EigenVector3dFromJsonArray (Eigen::Vector3d &vec, const Json::Value &value)

static bool	EigenVector3dToJsonArray (const Eigen::Vector3d &vec, Json::Value &value)

static bool	EigenVector4dFromJsonArray (Eigen::Vector4d &vec, const Json::Value &value)

static bool	EigenVector4dToJsonArray (const Eigen::Vector4d &vec, Json::Value &value)

static bool	EigenMatrix3dFromJsonArray (Eigen::Matrix3d &mat, const Json::Value &value)

static bool	EigenMatrix3dToJsonArray (const Eigen::Matrix3d &mat, Json::Value &value)

static bool	EigenMatrix4dFromJsonArray (Eigen::Matrix4d &mat, const Json::Value &value)

static bool	EigenMatrix4dToJsonArray (const Eigen::Matrix4d &mat, Json::Value &value)

static bool	EigenMatrix4dFromJsonArray (Eigen::Matrix4d_u &mat, const Json::Value &value)

static bool	EigenMatrix4dToJsonArray (const Eigen::Matrix4d_u &mat, Json::Value &value)

static bool	EigenMatrix6dFromJsonArray (Eigen::Matrix6d &mat, const Json::Value &value)

static bool	EigenMatrix6dToJsonArray (const Eigen::Matrix6d &mat, Json::Value &value)

static bool	EigenMatrix6dFromJsonArray (Eigen::Matrix6d_u &mat, const Json::Value &value)

static bool	EigenMatrix6dToJsonArray (const Eigen::Matrix6d_u &mat, Json::Value &value)

Data Fields
std::shared_ptr< OctreeNode >	root_node_ = nullptr
	Root of the octree. More...

Eigen::Vector3d	origin_

double	size_

size_t	max_depth_

Additional Inherited Members
Public Types inherited from open3d::geometry::Geometry
enum	GeometryType { GeometryType::Unspecified = 0, GeometryType::PointCloud = 1, GeometryType::VoxelGrid = 2, GeometryType::Octree = 3, GeometryType::LineSet = 4, GeometryType::MeshBase = 5, GeometryType::TriangleMesh = 6, GeometryType::HalfEdgeTriangleMesh = 7, GeometryType::Image = 8, GeometryType::RGBDImage = 9, GeometryType::TetraMesh = 10, GeometryType::OrientedBoundingBox = 11, GeometryType::AxisAlignedBoundingBox = 12 }
	Specifies possible geometry types. More...

Protected Member Functions inherited from open3d::geometry::Geometry3D
	Geometry3D (GeometryType type)
	Parameterized Constructor. More...

Eigen::Vector3d	ComputeMinBound (const std::vector< Eigen::Vector3d > &points) const
	Compute min bound of a list points. More...

Eigen::Vector3d	ComputeMaxBound (const std::vector< Eigen::Vector3d > &points) const
	Compute max bound of a list points. More...

Eigen::Vector3d	ComputeCenter (const std::vector< Eigen::Vector3d > &points) const
	Computer center of a list of points. More...

void	ResizeAndPaintUniformColor (std::vector< Eigen::Vector3d > &colors, const size_t size, const Eigen::Vector3d &color) const
	Resizes the colors vector and paints a uniform color. More...

void	TransformPoints (const Eigen::Matrix4d &transformation, std::vector< Eigen::Vector3d > &points) const
	Transforms all points with the transformation matrix. More...

void	TransformNormals (const Eigen::Matrix4d &transformation, std::vector< Eigen::Vector3d > &normals) const
	Transforms the normals with the transformation matrix. More...

void	TranslatePoints (const Eigen::Vector3d &translation, std::vector< Eigen::Vector3d > &points, bool relative) const
	Apply translation to the geometry coordinates. More...

void	ScalePoints (const double scale, std::vector< Eigen::Vector3d > &points, bool center) const
	Scale the coordinates of all points by the scaling factor `scale`. More...

void	RotatePoints (const Eigen::Matrix3d &R, std::vector< Eigen::Vector3d > &points, bool center) const
	Rotate all points with the rotation matrix `R`. More...

void	RotateNormals (const Eigen::Matrix3d &R, std::vector< Eigen::Vector3d > &normals, bool center) const
	Rotate all normals with the rotation matrix `R`. More...

Protected Member Functions inherited from open3d::geometry::Geometry
	Geometry (GeometryType type, int dimension)
	Parameterized Constructor. More...

Constructor & Destructor Documentation

◆ Octree() [1/4]

open3d::geometry::Octree::Octree ( )

inline

◆ Octree() [2/4]

open3d::geometry::Octree::Octree ( const size_t & max_depth )

inline

◆ Octree() [3/4]

open3d::geometry::Octree::Octree	(	const size_t &	max_depth,
		const Eigen::Vector3d &	origin,
		const double &	size
	)

inline

◆ Octree() [4/4]

open3d::geometry::Octree::Octree ( const Octree & src_octree )

◆ ~Octree()

open3d::geometry::Octree::~Octree ( )

inlineoverride

Member Function Documentation

◆ Clear()

Octree & open3d::geometry::Octree::Clear ( )

overridevirtual

Clear all elements in the geometry.

Implements open3d::geometry::Geometry3D.

◆ ConvertFromJsonValue()

bool open3d::geometry::Octree::ConvertFromJsonValue ( const Json::Value & value )

overridevirtual

Implements open3d::utility::IJsonConvertible.

◆ ConvertFromPointCloud()

void open3d::geometry::Octree::ConvertFromPointCloud	(	const geometry::PointCloud &	point_cloud,
		double	size_expand = `0.01`
	)

◆ ConvertToJsonValue()

bool open3d::geometry::Octree::ConvertToJsonValue ( Json::Value & value ) const

overridevirtual

Implements open3d::utility::IJsonConvertible.

◆ CreateFromVoxelGrid()

void open3d::geometry::Octree::CreateFromVoxelGrid ( const geometry::VoxelGrid & voxel_grid )

Convert from voxel grid.

◆ GetAxisAlignedBoundingBox()

AxisAlignedBoundingBox open3d::geometry::Octree::GetAxisAlignedBoundingBox ( ) const

overridevirtual

Returns an axis-aligned bounding box of the geometry.

Implements open3d::geometry::Geometry3D.

◆ GetCenter()

Eigen::Vector3d open3d::geometry::Octree::GetCenter ( ) const

overridevirtual

Returns the center of the geometry coordinates.

Implements open3d::geometry::Geometry3D.

◆ GetMaxBound()

Eigen::Vector3d open3d::geometry::Octree::GetMaxBound ( ) const

overridevirtual

Returns max bounds for geometry coordinates.

Implements open3d::geometry::Geometry3D.

◆ GetMinBound()

Eigen::Vector3d open3d::geometry::Octree::GetMinBound ( ) const

overridevirtual

Returns min bounds for geometry coordinates.

Implements open3d::geometry::Geometry3D.

◆ GetOrientedBoundingBox()

OrientedBoundingBox open3d::geometry::Octree::GetOrientedBoundingBox ( ) const

overridevirtual

Returns an oriented bounding box of the geometry.

Implements open3d::geometry::Geometry3D.

◆ InsertPoint()

void open3d::geometry::Octree::InsertPoint	(	const Eigen::Vector3d &	point,
		const std::function< std::shared_ptr< OctreeLeafNode >()> &	f_init,
		const std::function< void(std::shared_ptr< OctreeLeafNode >)> &	f_update
	)

Insert point.

◆ IsEmpty()

bool open3d::geometry::Octree::IsEmpty ( ) const

overridevirtual

Returns true iff the geometry is empty.

Implements open3d::geometry::Geometry3D.

◆ IsPointInBound()

bool open3d::geometry::Octree::IsPointInBound	(	const Eigen::Vector3d &	point,
		const Eigen::Vector3d &	origin,
		const double &	size
	)

static

Return true if point within bound, that is, origin <= point < origin + size

◆ LocateLeafNode()

std::pair< std::shared_ptr< OctreeLeafNode >, std::shared_ptr< OctreeNodeInfo > > open3d::geometry::Octree::LocateLeafNode ( const Eigen::Vector3d & point ) const

◆ operator==()

bool open3d::geometry::Octree::operator== ( const Octree & other ) const

Returns true if the Octree is completely the same, used for testing.

◆ Rotate()

Octree & open3d::geometry::Octree::Rotate	(	const Eigen::Matrix3d &	R,
		bool	center = `true`
	)

overridevirtual

Apply rotation to the geometry coordinates and normals.

Parameters

R	A 3D vector that either defines the three angles for Euler rotation, or in the axis-angle representation the normalized vector defines the axis of rotation and the norm the angle around this axis.
center	If `true`, the rotation is applied relative to the center of the geometry. Otherwise, the rotation is directly applied to the geometry, i.e. relative to the origin.

Implements open3d::geometry::Geometry3D.

◆ Scale()

Octree & open3d::geometry::Octree::Scale	(	const double	scale,
		bool	center = `true`
	)

overridevirtual

Apply scaling to the geometry coordinates.

Parameters

scale	The scale parameter that is multiplied to the points/vertices of the geometry.
center	If `true`, the scale is applied relative to the center of the geometry. Otherwise, the scale is directly applied to the geometry, i.e. relative to the origin.

Implements open3d::geometry::Geometry3D.

◆ ToVoxelGrid()

std::shared_ptr< geometry::VoxelGrid > open3d::geometry::Octree::ToVoxelGrid ( ) const

Convert to voxel grid.

◆ Transform()

Octree & open3d::geometry::Octree::Transform ( const Eigen::Matrix4d & transformation )

overridevirtual

Apply transformation (4x4 matrix) to the geometry coordinates.

Implements open3d::geometry::Geometry3D.

◆ Translate()

Octree & open3d::geometry::Octree::Translate	(	const Eigen::Vector3d &	translation,
		bool	relative = `true`
	)

overridevirtual

Apply translation to the geometry coordinates.

Parameters

translation	A 3D vector to transform the geometry.
relative	If `true`, the `translation` is directly applied to the geometry. Otherwise, the geometry center is moved to the `translation`.

Implements open3d::geometry::Geometry3D.

◆ Traverse() [1/2]

void open3d::geometry::Octree::Traverse ( const std::function< void(const std::shared_ptr< OctreeNode > &, const std::shared_ptr< OctreeNodeInfo > &)> & f )

DFS traversal of Octree from the root, with callback function called for each node

◆ Traverse() [2/2]

void open3d::geometry::Octree::Traverse ( const std::function< void(const std::shared_ptr< OctreeNode > &, const std::shared_ptr< OctreeNodeInfo > &)> & f ) const

Const version of Traverse. DFS traversal of Octree from the root, with callback function called for each node

Field Documentation

◆ max_depth_

size_t open3d::geometry::Octree::max_depth_

Max depth of octree. The depth is defined as the distance from the deepest leaf node to root. A tree with only the root node has depth 0.

◆ origin_

Eigen::Vector3d open3d::geometry::Octree::origin_

Global min bound (include). A point is within bound iff origin_ <= point < origin_ + size_

◆ root_node_

std::shared_ptr<OctreeNode> open3d::geometry::Octree::root_node_ = nullptr

Root of the octree.

◆ size_

double open3d::geometry::Octree::size_

Outer bounding box edge size for the whole octree. A point is within bound iff origin_ <= point < origin_ + size_

The documentation for this class was generated from the following files:

/home/yixing/repo/Open3D/src/Open3D/Geometry/Octree.h
/home/yixing/repo/Open3D/src/Open3D/Geometry/Octree.cpp

Public Member Functions

Static Public Member Functions

Data Fields

Additional Inherited Members

Constructor & Destructor Documentation

◆ Octree() [1/4]

◆ Octree() [2/4]

◆ Octree() [3/4]

◆ Octree() [4/4]

◆ ~Octree()

Member Function Documentation

◆ Clear()

◆ ConvertFromJsonValue()

◆ ConvertFromPointCloud()

◆ ConvertToJsonValue()

◆ CreateFromVoxelGrid()

◆ GetAxisAlignedBoundingBox()

◆ GetCenter()

◆ GetMaxBound()

◆ GetMinBound()

◆ GetOrientedBoundingBox()

◆ InsertPoint()

◆ IsEmpty()

◆ IsPointInBound()

◆ LocateLeafNode()

◆ operator==()

◆ Rotate()

◆ Scale()

◆ ToVoxelGrid()

◆ Transform()

◆ Translate()

◆ Traverse() [1/2]

◆ Traverse() [2/2]

Field Documentation

◆ max_depth_

◆ origin_

◆ root_node_

◆ size_
