Voxelization¶
Point clouds and triangle meshes are very flexible, but irregular, geometry types. The voxel grid is another geometry type in 3D that is defined on a regular 3D grid, whereas a voxel can be thought of as the 3D counterpart to the pixel in 2D. Open3D has the geometry type VoxelGrid that can be used to work with voxel grids.
From triangle mesh¶
Open3D provides the method create_from_triangle_mesh that creates a voxel grid from a triangle mesh. It returns a voxel grid where all voxels that are intersected by a triangle are set to 1, all others are set to 0. The argument voxel_size defines the resolution of the voxel grid.
[2]:
print('input')
mesh = o3dtut.get_bunny_mesh()
# fit to unit cube
mesh.scale(1 / np.max(mesh.get_max_bound() - mesh.get_min_bound()),
center=mesh.get_center())
o3d.visualization.draw_geometries([mesh])
print('voxelization')
voxel_grid = o3d.geometry.VoxelGrid.create_from_triangle_mesh(mesh,
voxel_size=0.05)
o3d.visualization.draw_geometries([voxel_grid])

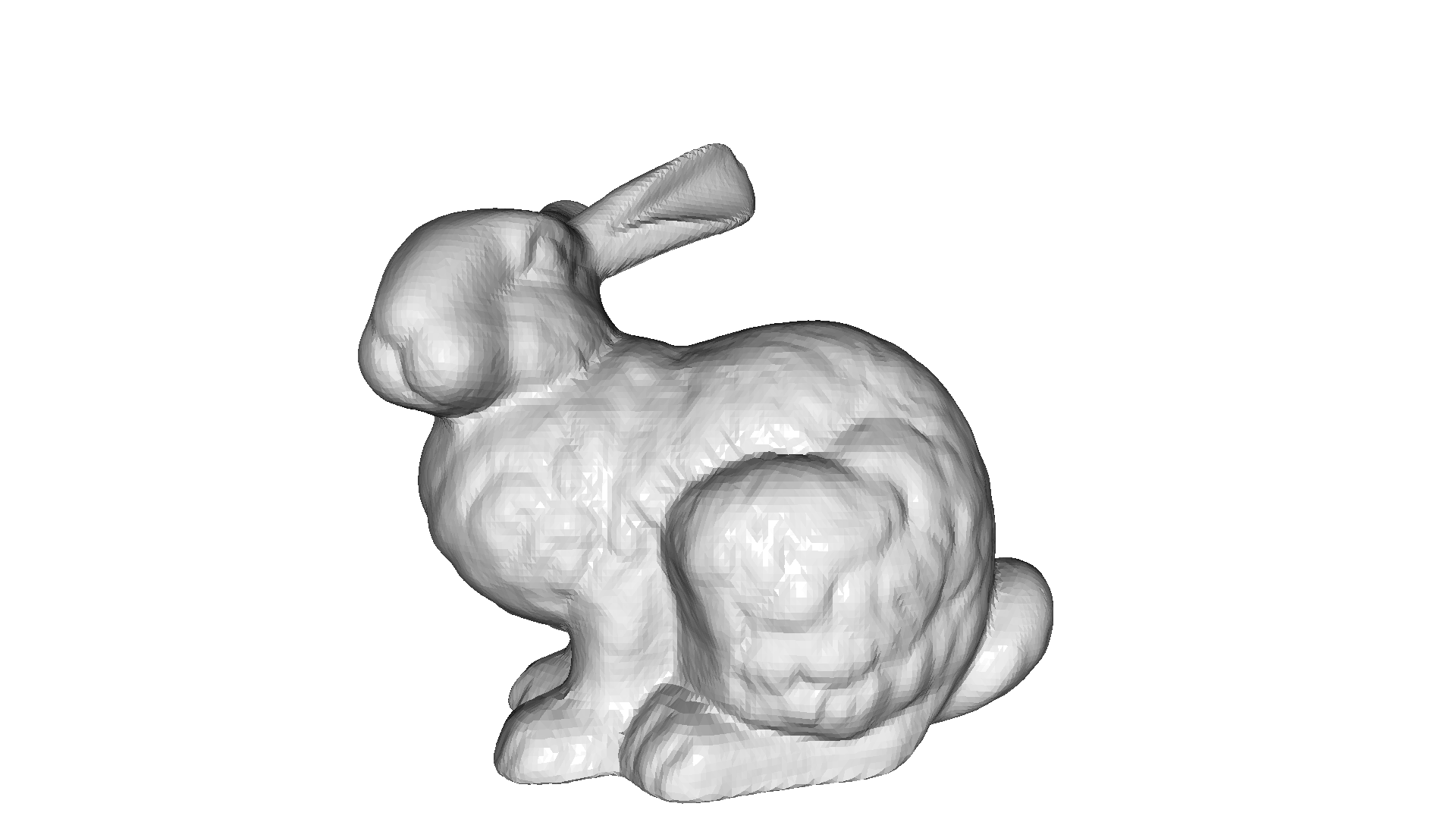

input

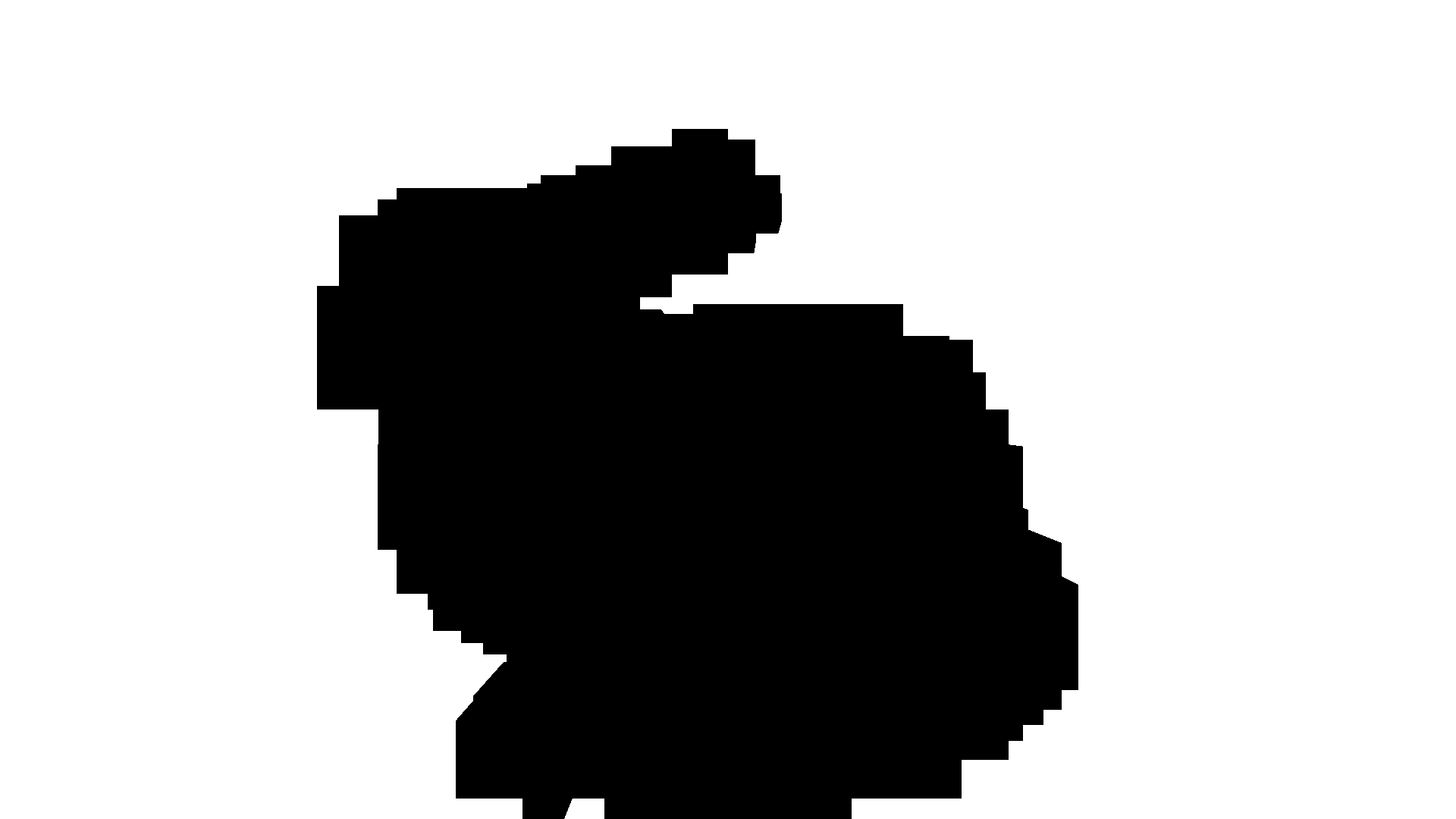

voxelization
From point cloud¶
The voxel grid can also be created from a point cloud using the method create_from_point_cloud. A voxel is occupied if at least one point of the point cloud is within the voxel. The color of the voxel is the average of all the points within the voxel. The argument voxel_size defines the resolution of the voxel grid.
[3]:
print('input')
N = 2000
pcd = o3dtut.get_armadillo_mesh().sample_points_poisson_disk(N)
# fit to unit cube
pcd.scale(1 / np.max(pcd.get_max_bound() - pcd.get_min_bound()),
center=pcd.get_center())
pcd.colors = o3d.utility.Vector3dVector(np.random.uniform(0, 1, size=(N, 3)))
o3d.visualization.draw_geometries([pcd])
print('voxelization')
voxel_grid = o3d.geometry.VoxelGrid.create_from_point_cloud(pcd,
voxel_size=0.05)
o3d.visualization.draw_geometries([voxel_grid])

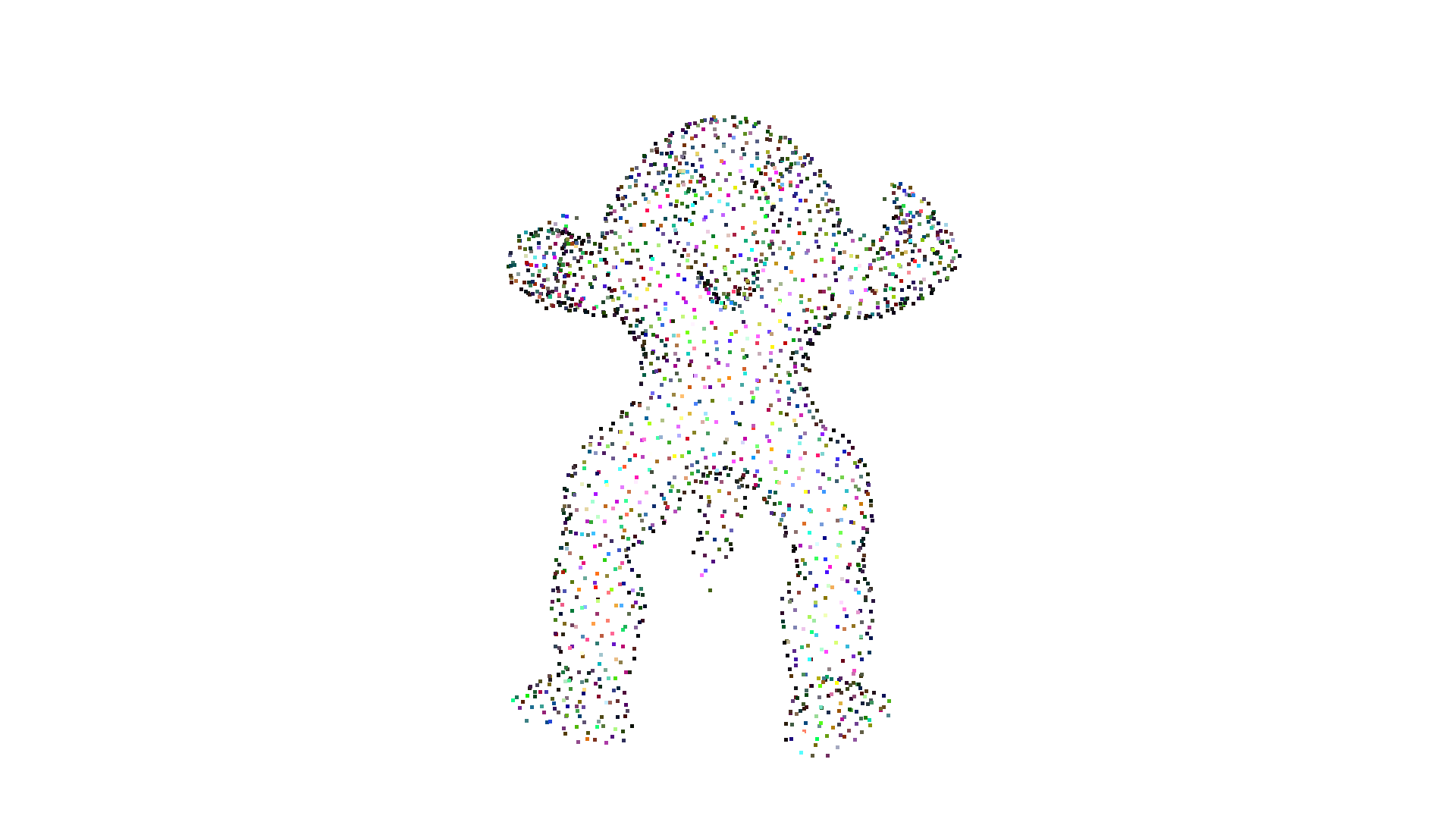

input

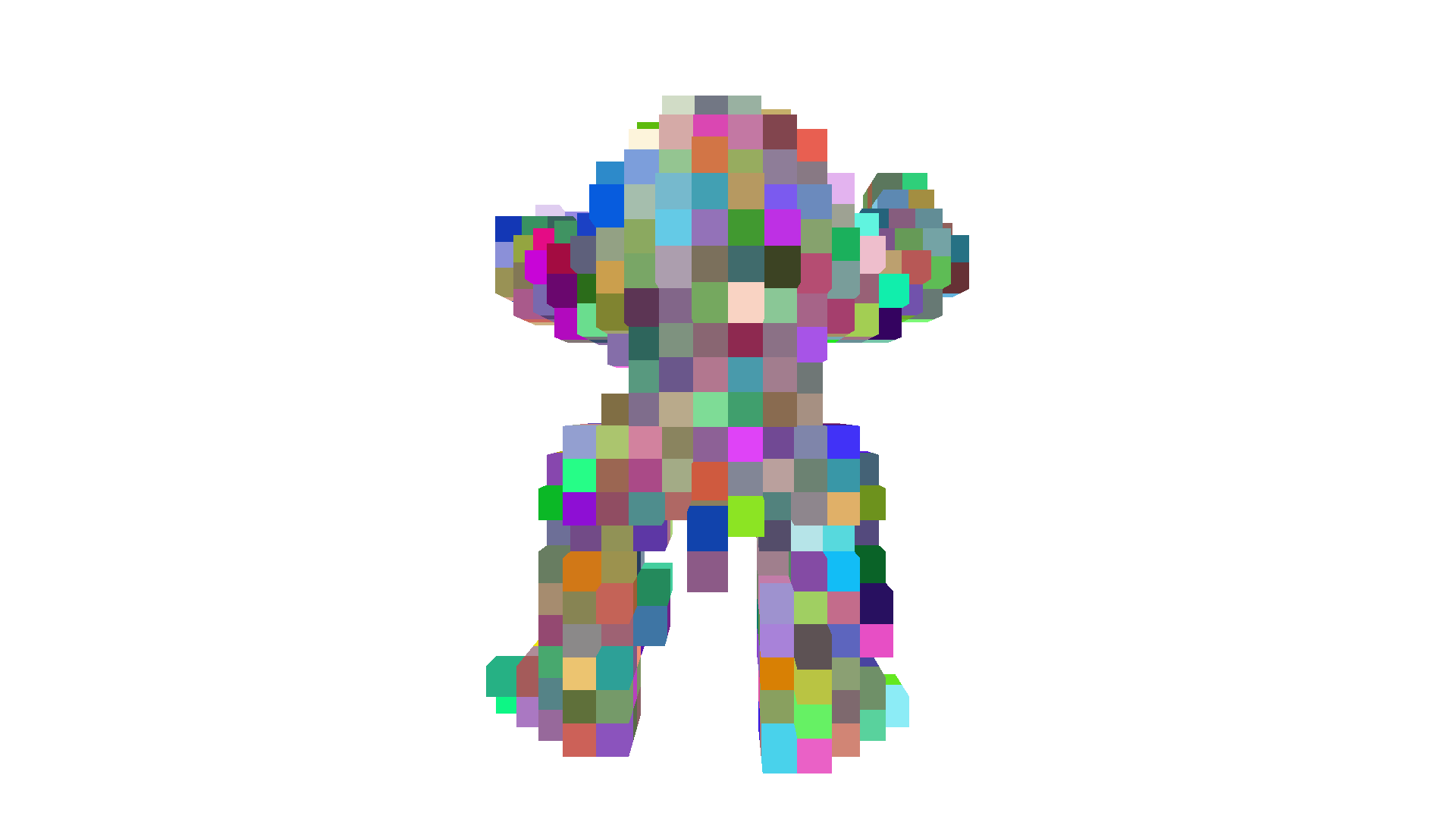

voxelization
Inclusion test¶
The voxel grid can also be used to test if points are within an occupied voxel. The method check_if_included takes a (n,3) array as input and outputs a bool array.
[4]:
queries = np.asarray(pcd.points)
output = voxel_grid.check_if_included(o3d.utility.Vector3dVector(queries))
print(output[:10])
[True, True, True, True, True, True, True, True, True, True]
Voxel carving¶
The methods create_from_point_cloud and create_from_triangle_mesh create occupied voxels only on the surface of the geometry. It is however possible to carve a voxel grid from a number of depth maps or silhouettes. Open3D provides the methods carve_depth_map and carve_silhouette for voxel carving.
The code below demonstrates the usage by first rendering depthmaps from a geometry and using those depthmaps to carve a dense voxel grid. The result is a filled voxel grid of the given shape.
[5]:
def xyz_spherical(xyz):
x = xyz[0]
y = xyz[1]
z = xyz[2]
r = np.sqrt(x * x + y * y + z * z)
r_x = np.arccos(y / r)
r_y = np.arctan2(z, x)
return [r, r_x, r_y]
def get_rotation_matrix(r_x, r_y):
rot_x = np.asarray([[1, 0, 0], [0, np.cos(r_x), -np.sin(r_x)],
[0, np.sin(r_x), np.cos(r_x)]])
rot_y = np.asarray([[np.cos(r_y), 0, np.sin(r_y)], [0, 1, 0],
[-np.sin(r_y), 0, np.cos(r_y)]])
return rot_y.dot(rot_x)
def get_extrinsic(xyz):
rvec = xyz_spherical(xyz)
r = get_rotation_matrix(rvec[1], rvec[2])
t = np.asarray([0, 0, 2]).transpose()
trans = np.eye(4)
trans[:3, :3] = r
trans[:3, 3] = t
return trans
def preprocess(model):
min_bound = model.get_min_bound()
max_bound = model.get_max_bound()
center = min_bound + (max_bound - min_bound) / 2.0
scale = np.linalg.norm(max_bound - min_bound) / 2.0
vertices = np.asarray(model.vertices)
vertices -= center
model.vertices = o3d.utility.Vector3dVector(vertices / scale)
return model
def voxel_carving(mesh,
output_filename,
camera_path,
cubic_size,
voxel_resolution,
w=300,
h=300,
use_depth=True,
surface_method='pointcloud'):
mesh.compute_vertex_normals()
camera_sphere = o3d.io.read_triangle_mesh(camera_path)
# setup dense voxel grid
voxel_carving = o3d.geometry.VoxelGrid.create_dense(
width=cubic_size,
height=cubic_size,
depth=cubic_size,
voxel_size=cubic_size / voxel_resolution,
origin=[-cubic_size / 2.0, -cubic_size / 2.0, -cubic_size / 2.0],
color=[1.0, 0.7, 0.0])
# rescale geometry
camera_sphere = preprocess(camera_sphere)
mesh = preprocess(mesh)
# setup visualizer to render depthmaps
vis = o3d.visualization.Visualizer()
vis.create_window(width=w, height=h, visible=False)
vis.add_geometry(mesh)
vis.get_render_option().mesh_show_back_face = True
ctr = vis.get_view_control()
param = ctr.convert_to_pinhole_camera_parameters()
# carve voxel grid
pcd_agg = o3d.geometry.PointCloud()
centers_pts = np.zeros((len(camera_sphere.vertices), 3))
for cid, xyz in enumerate(camera_sphere.vertices):
# get new camera pose
trans = get_extrinsic(xyz)
param.extrinsic = trans
c = np.linalg.inv(trans).dot(np.asarray([0, 0, 0, 1]).transpose())
centers_pts[cid, :] = c[:3]
ctr.convert_from_pinhole_camera_parameters(param)
# capture depth image and make a point cloud
vis.poll_events()
vis.update_renderer()
depth = vis.capture_depth_float_buffer(False)
pcd_agg += o3d.geometry.PointCloud.create_from_depth_image(
o3d.geometry.Image(depth),
param.intrinsic,
param.extrinsic,
depth_scale=1)
# depth map carving method
if use_depth:
voxel_carving.carve_depth_map(o3d.geometry.Image(depth), param)
else:
voxel_carving.carve_silhouette(o3d.geometry.Image(depth), param)
print("Carve view %03d/%03d" % (cid + 1, len(camera_sphere.vertices)))
vis.destroy_window()
# add voxel grid survace
print('Surface voxel grid from %s' % surface_method)
if surface_method == 'pointcloud':
voxel_surface = o3d.geometry.VoxelGrid.create_from_point_cloud_within_bounds(
pcd_agg,
voxel_size=cubic_size / voxel_resolution,
min_bound=(-cubic_size / 2, -cubic_size / 2, -cubic_size / 2),
max_bound=(cubic_size / 2, cubic_size / 2, cubic_size / 2))
elif surface_method == 'mesh':
voxel_surface = o3d.geometry.VoxelGrid.create_from_triangle_mesh_within_bounds(
mesh,
voxel_size=cubic_size / voxel_resolution,
min_bound=(-cubic_size / 2, -cubic_size / 2, -cubic_size / 2),
max_bound=(cubic_size / 2, cubic_size / 2, cubic_size / 2))
else:
raise Exception('invalid surface method')
voxel_carving_surface = voxel_surface + voxel_carving
return voxel_carving_surface, voxel_carving, voxel_surface
[6]:
mesh = o3dtut.get_armadillo_mesh()
output_filename = os.path.abspath("../../test_data/voxelized.ply")
camera_path = os.path.abspath("../../test_data/sphere.ply")
visualization = True
cubic_size = 2.0
voxel_resolution = 128.0
voxel_grid, voxel_carving, voxel_surface = voxel_carving(
mesh, output_filename, camera_path, cubic_size, voxel_resolution)
Carve view 001/642
Carve view 002/642
Carve view 003/642
Carve view 004/642
Carve view 005/642
Carve view 006/642
Carve view 007/642
Carve view 008/642
Carve view 009/642
Carve view 010/642
Carve view 011/642
Carve view 012/642
Carve view 013/642
Carve view 014/642
Carve view 015/642
Carve view 016/642
Carve view 017/642
Carve view 018/642
Carve view 019/642
Carve view 020/642
Carve view 021/642
Carve view 022/642
Carve view 023/642
Carve view 024/642
Carve view 025/642
Carve view 026/642
Carve view 027/642
Carve view 028/642
Carve view 029/642
Carve view 030/642
Carve view 031/642
Carve view 032/642
Carve view 033/642
Carve view 034/642
Carve view 035/642
Carve view 036/642
Carve view 037/642
Carve view 038/642
Carve view 039/642
Carve view 040/642
Carve view 041/642
Carve view 042/642
Carve view 043/642
Carve view 044/642
Carve view 045/642
Carve view 046/642
Carve view 047/642
Carve view 048/642
Carve view 049/642
Carve view 050/642
Carve view 051/642
Carve view 052/642
Carve view 053/642
Carve view 054/642
Carve view 055/642
Carve view 056/642
Carve view 057/642
Carve view 058/642
Carve view 059/642
Carve view 060/642
Carve view 061/642
Carve view 062/642
Carve view 063/642
Carve view 064/642
Carve view 065/642
Carve view 066/642
Carve view 067/642
Carve view 068/642
Carve view 069/642
Carve view 070/642
Carve view 071/642
Carve view 072/642
Carve view 073/642
Carve view 074/642
Carve view 075/642
Carve view 076/642
Carve view 077/642
Carve view 078/642
Carve view 079/642
Carve view 080/642
Carve view 081/642
Carve view 082/642
Carve view 083/642
Carve view 084/642
Carve view 085/642
Carve view 086/642
Carve view 087/642
Carve view 088/642
Carve view 089/642
Carve view 090/642
Carve view 091/642
Carve view 092/642
Carve view 093/642
Carve view 094/642
Carve view 095/642
Carve view 096/642
Carve view 097/642
Carve view 098/642
Carve view 099/642
Carve view 100/642
Carve view 101/642
Carve view 102/642
Carve view 103/642
Carve view 104/642
Carve view 105/642
Carve view 106/642
Carve view 107/642
Carve view 108/642
Carve view 109/642
Carve view 110/642
Carve view 111/642
Carve view 112/642
Carve view 113/642
Carve view 114/642
Carve view 115/642
Carve view 116/642
Carve view 117/642
Carve view 118/642
Carve view 119/642
Carve view 120/642
Carve view 121/642
Carve view 122/642
Carve view 123/642
Carve view 124/642
Carve view 125/642
Carve view 126/642
Carve view 127/642
Carve view 128/642
Carve view 129/642
Carve view 130/642
Carve view 131/642
Carve view 132/642
Carve view 133/642
Carve view 134/642
Carve view 135/642
Carve view 136/642
Carve view 137/642
Carve view 138/642
Carve view 139/642
Carve view 140/642
Carve view 141/642
Carve view 142/642
Carve view 143/642
Carve view 144/642
Carve view 145/642
Carve view 146/642
Carve view 147/642
Carve view 148/642
Carve view 149/642
Carve view 150/642
Carve view 151/642
Carve view 152/642
Carve view 153/642
Carve view 154/642
Carve view 155/642
Carve view 156/642
Carve view 157/642
Carve view 158/642
Carve view 159/642
Carve view 160/642
Carve view 161/642
Carve view 162/642
Carve view 163/642
Carve view 164/642
Carve view 165/642
Carve view 166/642
Carve view 167/642
Carve view 168/642
Carve view 169/642
Carve view 170/642
Carve view 171/642
Carve view 172/642
Carve view 173/642
Carve view 174/642
Carve view 175/642
Carve view 176/642
Carve view 177/642
Carve view 178/642
Carve view 179/642
Carve view 180/642
Carve view 181/642
Carve view 182/642
Carve view 183/642
Carve view 184/642
Carve view 185/642
Carve view 186/642
Carve view 187/642
Carve view 188/642
Carve view 189/642
Carve view 190/642
Carve view 191/642
Carve view 192/642
Carve view 193/642
Carve view 194/642
Carve view 195/642
Carve view 196/642
Carve view 197/642
Carve view 198/642
Carve view 199/642
Carve view 200/642
Carve view 201/642
Carve view 202/642
Carve view 203/642
Carve view 204/642
Carve view 205/642
Carve view 206/642
Carve view 207/642
Carve view 208/642
Carve view 209/642
Carve view 210/642
Carve view 211/642
Carve view 212/642
Carve view 213/642
Carve view 214/642
Carve view 215/642
Carve view 216/642
Carve view 217/642
Carve view 218/642
Carve view 219/642
Carve view 220/642
Carve view 221/642
Carve view 222/642
Carve view 223/642
Carve view 224/642
Carve view 225/642
Carve view 226/642
Carve view 227/642
Carve view 228/642
Carve view 229/642
Carve view 230/642
Carve view 231/642
Carve view 232/642
Carve view 233/642
Carve view 234/642
Carve view 235/642
Carve view 236/642
Carve view 237/642
Carve view 238/642
Carve view 239/642
Carve view 240/642
Carve view 241/642
Carve view 242/642
Carve view 243/642
Carve view 244/642
Carve view 245/642
Carve view 246/642
Carve view 247/642
Carve view 248/642
Carve view 249/642
Carve view 250/642
Carve view 251/642
Carve view 252/642
Carve view 253/642
Carve view 254/642
Carve view 255/642
Carve view 256/642
Carve view 257/642
Carve view 258/642
Carve view 259/642
Carve view 260/642
Carve view 261/642
Carve view 262/642
Carve view 263/642
Carve view 264/642
Carve view 265/642
Carve view 266/642
Carve view 267/642
Carve view 268/642
Carve view 269/642
Carve view 270/642
Carve view 271/642
Carve view 272/642
Carve view 273/642
Carve view 274/642
Carve view 275/642
Carve view 276/642
Carve view 277/642
Carve view 278/642
Carve view 279/642
Carve view 280/642
Carve view 281/642
Carve view 282/642
Carve view 283/642
Carve view 284/642
Carve view 285/642
Carve view 286/642
Carve view 287/642
Carve view 288/642
Carve view 289/642
Carve view 290/642
Carve view 291/642
Carve view 292/642
Carve view 293/642
Carve view 294/642
Carve view 295/642
Carve view 296/642
Carve view 297/642
Carve view 298/642
Carve view 299/642
Carve view 300/642
Carve view 301/642
Carve view 302/642
Carve view 303/642
Carve view 304/642
Carve view 305/642
Carve view 306/642
Carve view 307/642
Carve view 308/642
Carve view 309/642
Carve view 310/642
Carve view 311/642
Carve view 312/642
Carve view 313/642
Carve view 314/642
Carve view 315/642
Carve view 316/642
Carve view 317/642
Carve view 318/642
Carve view 319/642
Carve view 320/642
Carve view 321/642
Carve view 322/642
Carve view 323/642
Carve view 324/642
Carve view 325/642
Carve view 326/642
Carve view 327/642
Carve view 328/642
Carve view 329/642
Carve view 330/642
Carve view 331/642
Carve view 332/642
Carve view 333/642
Carve view 334/642
Carve view 335/642
Carve view 336/642
Carve view 337/642
Carve view 338/642
Carve view 339/642
Carve view 340/642
Carve view 341/642
Carve view 342/642
Carve view 343/642
Carve view 344/642
Carve view 345/642
Carve view 346/642
Carve view 347/642
Carve view 348/642
Carve view 349/642
Carve view 350/642
Carve view 351/642
Carve view 352/642
Carve view 353/642
Carve view 354/642
Carve view 355/642
Carve view 356/642
Carve view 357/642
Carve view 358/642
Carve view 359/642
Carve view 360/642
Carve view 361/642
Carve view 362/642
Carve view 363/642
Carve view 364/642
Carve view 365/642
Carve view 366/642
Carve view 367/642
Carve view 368/642
Carve view 369/642
Carve view 370/642
Carve view 371/642
Carve view 372/642
Carve view 373/642
Carve view 374/642
Carve view 375/642
Carve view 376/642
Carve view 377/642
Carve view 378/642
Carve view 379/642
Carve view 380/642
Carve view 381/642
Carve view 382/642
Carve view 383/642
Carve view 384/642
Carve view 385/642
Carve view 386/642
Carve view 387/642
Carve view 388/642
Carve view 389/642
Carve view 390/642
Carve view 391/642
Carve view 392/642
Carve view 393/642
Carve view 394/642
Carve view 395/642
Carve view 396/642
Carve view 397/642
Carve view 398/642
Carve view 399/642
Carve view 400/642
Carve view 401/642
Carve view 402/642
Carve view 403/642
Carve view 404/642
Carve view 405/642
Carve view 406/642
Carve view 407/642
Carve view 408/642
Carve view 409/642
Carve view 410/642
Carve view 411/642
Carve view 412/642
Carve view 413/642
Carve view 414/642
Carve view 415/642
Carve view 416/642
Carve view 417/642
Carve view 418/642
Carve view 419/642
Carve view 420/642
Carve view 421/642
Carve view 422/642
Carve view 423/642
Carve view 424/642
Carve view 425/642
Carve view 426/642
Carve view 427/642
Carve view 428/642
Carve view 429/642
Carve view 430/642
Carve view 431/642
Carve view 432/642
Carve view 433/642
Carve view 434/642
Carve view 435/642
Carve view 436/642
Carve view 437/642
Carve view 438/642
Carve view 439/642
Carve view 440/642
Carve view 441/642
Carve view 442/642
Carve view 443/642
Carve view 444/642
Carve view 445/642
Carve view 446/642
Carve view 447/642
Carve view 448/642
Carve view 449/642
Carve view 450/642
Carve view 451/642
Carve view 452/642
Carve view 453/642
Carve view 454/642
Carve view 455/642
Carve view 456/642
Carve view 457/642
Carve view 458/642
Carve view 459/642
Carve view 460/642
Carve view 461/642
Carve view 462/642
Carve view 463/642
Carve view 464/642
Carve view 465/642
Carve view 466/642
Carve view 467/642
Carve view 468/642
Carve view 469/642
Carve view 470/642
Carve view 471/642
Carve view 472/642
Carve view 473/642
Carve view 474/642
Carve view 475/642
Carve view 476/642
Carve view 477/642
Carve view 478/642
Carve view 479/642
Carve view 480/642
Carve view 481/642
Carve view 482/642
Carve view 483/642
Carve view 484/642
Carve view 485/642
Carve view 486/642
Carve view 487/642
Carve view 488/642
Carve view 489/642
Carve view 490/642
Carve view 491/642
Carve view 492/642
Carve view 493/642
Carve view 494/642
Carve view 495/642
Carve view 496/642
Carve view 497/642
Carve view 498/642
Carve view 499/642
Carve view 500/642
Carve view 501/642
Carve view 502/642
Carve view 503/642
Carve view 504/642
Carve view 505/642
Carve view 506/642
Carve view 507/642
Carve view 508/642
Carve view 509/642
Carve view 510/642
Carve view 511/642
Carve view 512/642
Carve view 513/642
Carve view 514/642
Carve view 515/642
Carve view 516/642
Carve view 517/642
Carve view 518/642
Carve view 519/642
Carve view 520/642
Carve view 521/642
Carve view 522/642
Carve view 523/642
Carve view 524/642
Carve view 525/642
Carve view 526/642
Carve view 527/642
Carve view 528/642
Carve view 529/642
Carve view 530/642
Carve view 531/642
Carve view 532/642
Carve view 533/642
Carve view 534/642
Carve view 535/642
Carve view 536/642
Carve view 537/642
Carve view 538/642
Carve view 539/642
Carve view 540/642
Carve view 541/642
Carve view 542/642
Carve view 543/642
Carve view 544/642
Carve view 545/642
Carve view 546/642
Carve view 547/642
Carve view 548/642
Carve view 549/642
Carve view 550/642
Carve view 551/642
Carve view 552/642
Carve view 553/642
Carve view 554/642
Carve view 555/642
Carve view 556/642
Carve view 557/642
Carve view 558/642
Carve view 559/642
Carve view 560/642
Carve view 561/642
Carve view 562/642
Carve view 563/642
Carve view 564/642
Carve view 565/642
Carve view 566/642
Carve view 567/642
Carve view 568/642
Carve view 569/642
Carve view 570/642
Carve view 571/642
Carve view 572/642
Carve view 573/642
Carve view 574/642
Carve view 575/642
Carve view 576/642
Carve view 577/642
Carve view 578/642
Carve view 579/642
Carve view 580/642
Carve view 581/642
Carve view 582/642
Carve view 583/642
Carve view 584/642
Carve view 585/642
Carve view 586/642
Carve view 587/642
Carve view 588/642
Carve view 589/642
Carve view 590/642
Carve view 591/642
Carve view 592/642
Carve view 593/642
Carve view 594/642
Carve view 595/642
Carve view 596/642
Carve view 597/642
Carve view 598/642
Carve view 599/642
Carve view 600/642
Carve view 601/642
Carve view 602/642
Carve view 603/642
Carve view 604/642
Carve view 605/642
Carve view 606/642
Carve view 607/642
Carve view 608/642
Carve view 609/642
Carve view 610/642
Carve view 611/642
Carve view 612/642
Carve view 613/642
Carve view 614/642
Carve view 615/642
Carve view 616/642
Carve view 617/642
Carve view 618/642
Carve view 619/642
Carve view 620/642
Carve view 621/642
Carve view 622/642
Carve view 623/642
Carve view 624/642
Carve view 625/642
Carve view 626/642
Carve view 627/642
Carve view 628/642
Carve view 629/642
Carve view 630/642
Carve view 631/642
Carve view 632/642
Carve view 633/642
Carve view 634/642
Carve view 635/642
Carve view 636/642
Carve view 637/642
Carve view 638/642
Carve view 639/642
Carve view 640/642
Carve view 641/642
Carve view 642/642
Surface voxel grid from pointcloud
[7]:

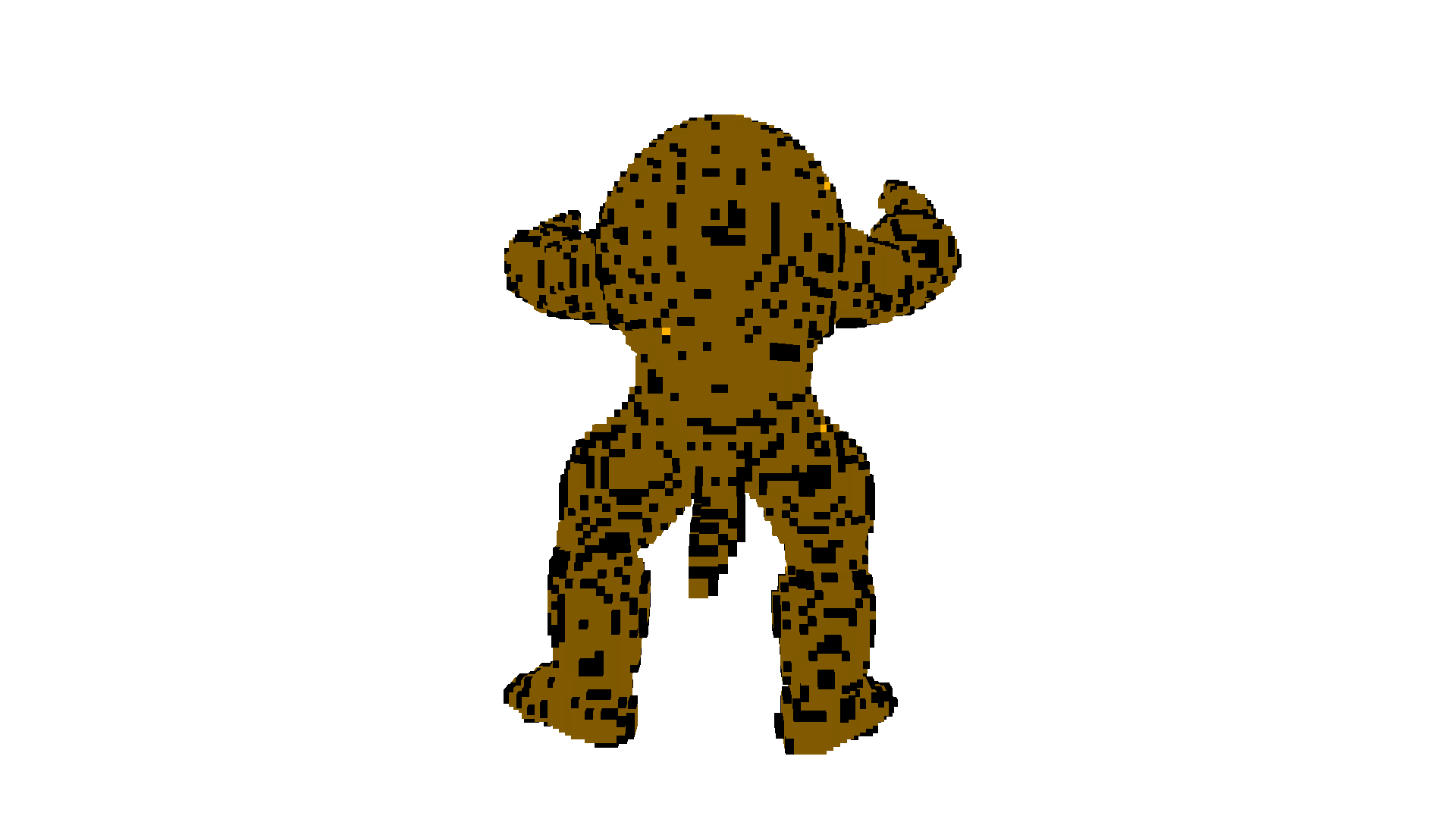

print("surface voxels")
print(voxel_surface)
o3d.visualization.draw_geometries([voxel_surface])

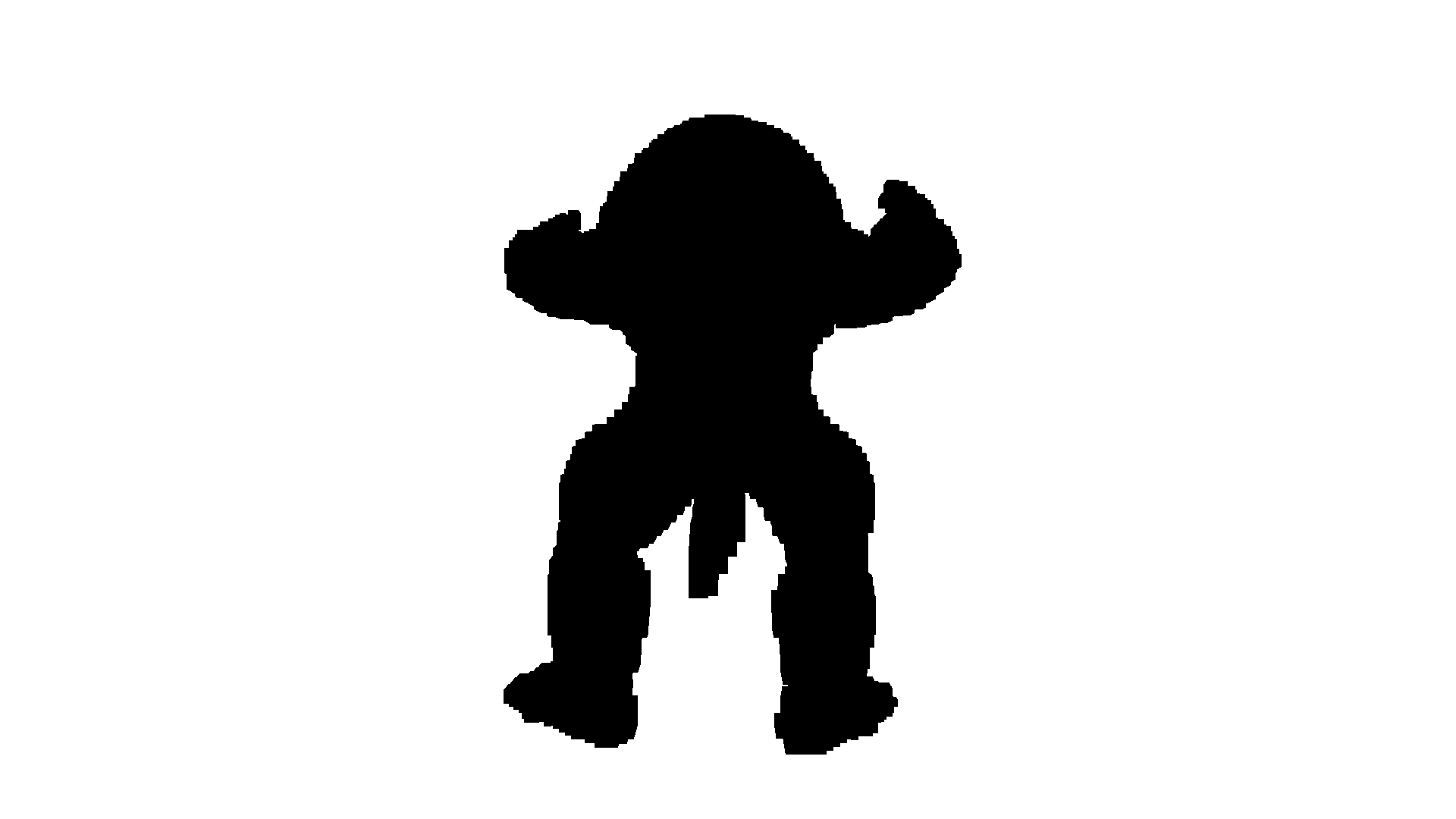

print("carved voxels")
print(voxel_carving)
o3d.visualization.draw_geometries([voxel_carving])

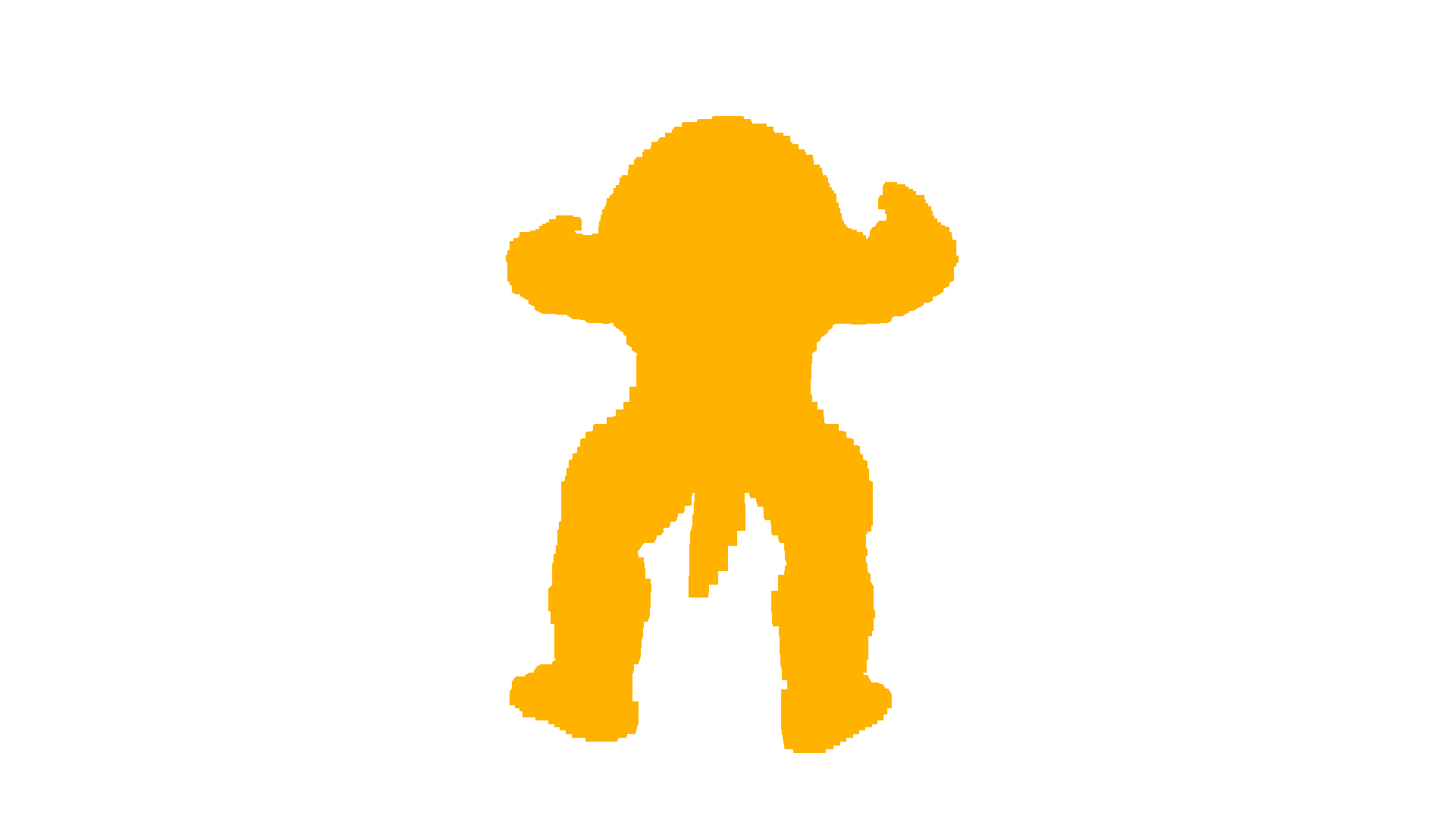

print("combined voxels (carved + surface)")
print(voxel_grid)
o3d.visualization.draw_geometries([voxel_grid])
surface voxels
VoxelGrid with 17219 voxels.
carved voxels
VoxelGrid with 48370 voxels.
combined voxels (carved + surface)
VoxelGrid with 50788 voxels.
