Getting Started

Installing from PyPI or Conda

Open3D Python packages are distributed via PyPI and Conda.

Supported Python versions:

  • 2.7

  • 3.5

  • 3.6

Supported operating systems:

  • Ubuntu (tested on 16.04, should work on other modern versions)

  • MacOS

  • Windows 10 (32-bit and 64-bit)

PyPI

pip install open3d

Note: In general, we recommend using a virtual environment for containerization. Otherwise, depending on the configurations, pip3 may be needed for Python 3, or the --user option may need to be used to avoid permission issues. For example:

pip3 install open3d
# or
pip install --user open3d
# or
python3 -m pip install --user open3d

Conda

conda install -c open3d-admin open3d

Note: Open3D prebuilt binaries for Conda (Anaconda/Miniconda) can be found at open3d. Currently, the open3d package is distributed under the open3d-admin channel. To setup Conda, please see the official documentations.

Try it

Now, try importing Open3D.

python -c "import open3d"

If this works, congratulations, now Open3D has been successfully installed!

Running Open3D tutorials

A complete set of Python tutorials and testing data will also be copied to demonstrate the usage of Open3D Python interface. For example, tutorial Basic/rgbd_redwood.py can be run with:

cd lib/Tutorial/Basic
python rgbd_redwood.py

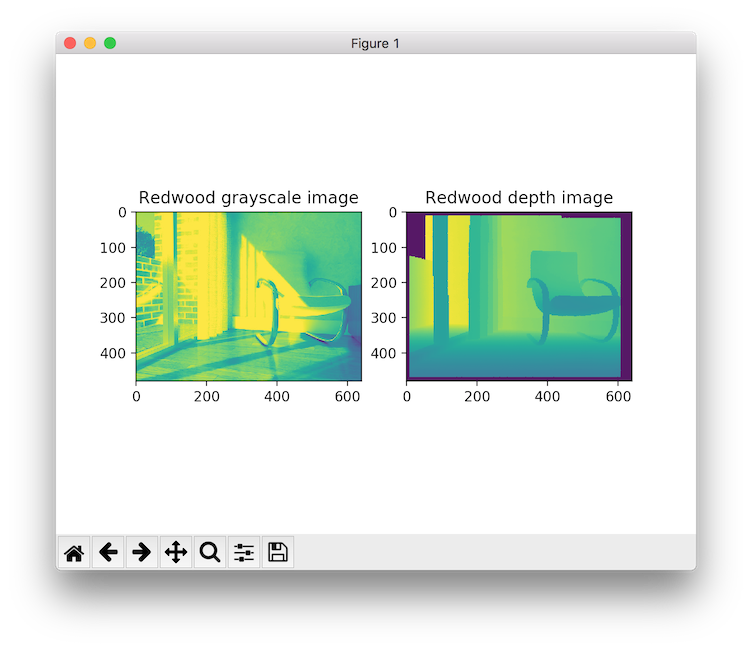

It reads a pair of RGB-D images and visualizes them.

_images/redwood_rgbd.png

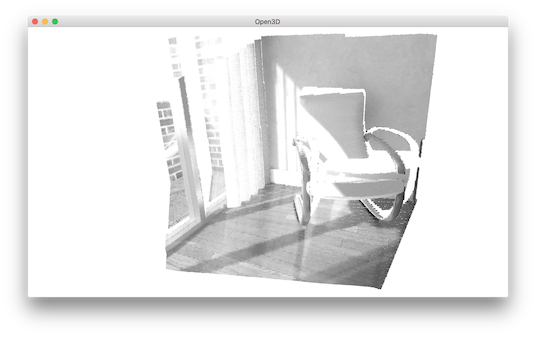

It then transforms the RGB-D image into a point cloud, then renders the point cloud using Open3D visualizer.

_images/redwood_pcd.png

The Python code is quite straightforward, and the detailed explanation can be found in Redwood dataset. You may further experiment with different tutorials or check out the complete tutorial list in the Tutorial page.

Note

Open3D’s Python tutorial utilizes some external packages: numpy, matplotlib, opencv-python. OpenCV is only used for reconstruction system. Please read util/scripts/install-deps-python.sh for installing these packages.
