open3d::visualization::MatrixInteractorLogic Class Reference

#include <MatrixInteractorLogic.h>

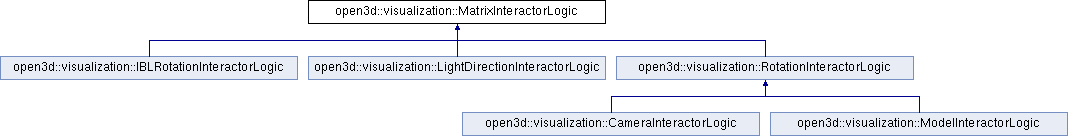

Inheritance diagram for open3d::visualization::MatrixInteractorLogic:

Public Types
enum	DragType { DragType::MOUSE, DragType::WHEEL, DragType::TWO_FINGER }

Public Member Functions
virtual	~MatrixInteractorLogic ()
void	SetViewSize (int width, int height)
const geometry::AxisAlignedBoundingBox &	GetBoundingBox () const
virtual void	SetBoundingBox (const geometry::AxisAlignedBoundingBox &bounds)
void	SetMouseDownInfo (const Camera::Transform &matrix, const Eigen::Vector3f &center_of_rotation)
const Camera::Transform &	GetMatrix () const
virtual void	Rotate (int dx, int dy)
virtual void	RotateWorld (int dx, int dy, const Eigen::Vector3f &x_axis, const Eigen::Vector3f &y_axis)
virtual void	RotateZ (int dx, int dy)
	Rotates about the forward axis of the matrix. More...
virtual void	RotateZWorld (int dx, int dy, const Eigen::Vector3f &forward)
virtual void	Dolly (int dy, DragType drag_type)
virtual void	Dolly (float z_dist, Camera::Transform matrix)

Protected Member Functions
void	SetMatrix (const Camera::Transform &matrix)
double	CalcRotateRadians (int dx, int dy)
double	CalcRotateZRadians (int dx, int dy)
float	CalcDollyDist (int dy, DragType drag_type)

Protected Attributes
int	view_width_ = 1
int	view_height_ = 1
double	model_size_ = 20.0
geometry::AxisAlignedBoundingBox	model_bounds_
Eigen::Vector3f	center_of_rotation_
Camera::Transform	matrix_at_mouse_down_
Eigen::Vector3f	center_of_rotation_at_mouse_down_

Detailed Description

Base class for rotating and dollying (translating along forward axis). Could be used for a camera, or also something else, like a the direction of a directional light.

Member Enumeration Documentation

DragType

enum open3d::visualization::MatrixInteractorLogic::DragType

strong

Enumerator
MOUSE
WHEEL
TWO_FINGER

Constructor & Destructor Documentation

~MatrixInteractorLogic()

open3d::visualization::MatrixInteractorLogic::~MatrixInteractorLogic ( )

virtual

Member Function Documentation

CalcDollyDist()

float open3d::visualization::MatrixInteractorLogic::CalcDollyDist ( int  dy, DragType  drag_type  )

protected

CalcRotateRadians()

double open3d::visualization::MatrixInteractorLogic::CalcRotateRadians ( int  dx, int  dy  )

protected

CalcRotateZRadians()

double open3d::visualization::MatrixInteractorLogic::CalcRotateZRadians ( int  dx, int  dy  )

protected

Dolly() [1/2]

void open3d::visualization::MatrixInteractorLogic::Dolly ( int  dy, DragType  drag_type  )

virtual

Moves the matrix along the forward axis. (This is one type of zoom.)

Reimplemented in open3d::visualization::ModelInteractorLogic, and open3d::visualization::CameraInteractorLogic.

Dolly() [2/2]

void open3d::visualization::MatrixInteractorLogic::Dolly ( float  z_dist, Camera::Transform  matrix  )

virtual

Reimplemented in open3d::visualization::CameraInteractorLogic.

GetBoundingBox()

const geometry::AxisAlignedBoundingBox & open3d::visualization::MatrixInteractorLogic::GetBoundingBox

(

)

const

GetMatrix()

const Camera::Transform & open3d::visualization::MatrixInteractorLogic::GetMatrix

(

)

const

Rotate()

void open3d::visualization::MatrixInteractorLogic::Rotate ( int  dx, int  dy  )

virtual

Rotates about an axis defined by dx * matrixLeft, dy * matrixUp. dy is assumed to be in window-style coordinates, that is, going up produces a negative dy. The axis goes through the center of rotation.

Reimplemented in open3d::visualization::ModelInteractorLogic, open3d::visualization::LightDirectionInteractorLogic, open3d::visualization::IBLRotationInteractorLogic, and open3d::visualization::CameraInteractorLogic.

RotateWorld()

void open3d::visualization::MatrixInteractorLogic::RotateWorld ( int  dx, int  dy, const Eigen::Vector3f &  x_axis, const Eigen::Vector3f &  y_axis  )

virtual

Same as Rotate() except that the dx-axis and the dy-axis are specified

RotateZ()

void open3d::visualization::MatrixInteractorLogic::RotateZ ( int  dx, int  dy  )

virtual

Rotates about the forward axis of the matrix.

Reimplemented in open3d::visualization::ModelInteractorLogic, open3d::visualization::IBLRotationInteractorLogic, and open3d::visualization::CameraInteractorLogic.

RotateZWorld()

void open3d::visualization::MatrixInteractorLogic::RotateZWorld ( int  dx, int  dy, const Eigen::Vector3f &  forward  )

virtual

SetBoundingBox()

void open3d::visualization::MatrixInteractorLogic::SetBoundingBox ( const geometry::AxisAlignedBoundingBox &  bounds )

virtual

Reimplemented in open3d::visualization::ModelInteractorLogic, and open3d::visualization::CameraInteractorLogic.

SetMatrix()

void open3d::visualization::MatrixInteractorLogic::SetMatrix ( const Camera::Transform &  matrix )

protected

SetMouseDownInfo()

void open3d::visualization::MatrixInteractorLogic::SetMouseDownInfo	(	const Camera::Transform &	matrix,
		const Eigen::Vector3f &	center_of_rotation
	)

SetViewSize()

void open3d::visualization::MatrixInteractorLogic::SetViewSize	(	int	width,
		int	height
	)

Field Documentation

center_of_rotation_

Eigen::Vector3f open3d::visualization::MatrixInteractorLogic::center_of_rotation_

protected

center_of_rotation_at_mouse_down_

Eigen::Vector3f open3d::visualization::MatrixInteractorLogic::center_of_rotation_at_mouse_down_

protected

matrix_at_mouse_down_

Camera::Transform open3d::visualization::MatrixInteractorLogic::matrix_at_mouse_down_

protected

model_bounds_

geometry::AxisAlignedBoundingBox open3d::visualization::MatrixInteractorLogic::model_bounds_

protected

model_size_

double open3d::visualization::MatrixInteractorLogic::model_size_ = 20.0

protected

view_height_

int open3d::visualization::MatrixInteractorLogic::view_height_ = 1

protected

view_width_

int open3d::visualization::MatrixInteractorLogic::view_width_ = 1

protected

---

The documentation for this class was generated from the following files:

• /home/yixing/repo/Open3D/src/Open3D/Visualization/Rendering/MatrixInteractorLogic.h
• /home/yixing/repo/Open3D/src/Open3D/Visualization/Rendering/MatrixInteractorLogic.cpp
