Make fragments#

The first step of the scene reconstruction system is to create fragments from short RGBD sequences.

Input arguments#

The script runs with python run_system.py [config] --make. In [config], ["path_dataset"] should have subfolders image and depth to store the color images and depth images respectively. We assume the color images and the depth images are synchronized and registered. In [config], the optional argument ["path_intrinsic"] specifies the path to a json file that stores the camera intrinsic matrix (See Read camera intrinsic for details). If it is not given, the PrimeSense factory setting is used instead.

Register RGBD image pairs#

30def register_one_rgbd_pair(s, t, color_files, depth_files, intrinsic,
31                           with_opencv, config):
32    source_rgbd_image = read_rgbd_image(color_files[s], depth_files[s], True,
33                                        config)
34    target_rgbd_image = read_rgbd_image(color_files[t], depth_files[t], True,
35                                        config)
36
37    option = o3d.pipelines.odometry.OdometryOption()
38    option.depth_diff_max = config["depth_diff_max"]
39    if abs(s - t) != 1:
40        if with_opencv:
41            success_5pt, odo_init = pose_estimation(source_rgbd_image,
42                                                    target_rgbd_image,
43                                                    intrinsic, False)
44            if success_5pt:
45                [success, trans, info
46                ] = o3d.pipelines.odometry.compute_rgbd_odometry(
47                    source_rgbd_image, target_rgbd_image, intrinsic, odo_init,
48                    o3d.pipelines.odometry.RGBDOdometryJacobianFromHybridTerm(),
49                    option)
50                return [success, trans, info]
51        return [False, np.identity(4), np.identity(6)]
52    else:
53        odo_init = np.identity(4)
54        [success, trans, info] = o3d.pipelines.odometry.compute_rgbd_odometry(
55            source_rgbd_image, target_rgbd_image, intrinsic, odo_init,
56            o3d.pipelines.odometry.RGBDOdometryJacobianFromHybridTerm(), option)
57        return [success, trans, info]

The function reads a pair of RGBD images and registers the source_rgbd_image to the target_rgbd_image. The Open3D function compute_rgbd_odometry is called to align the RGBD images. For adjacent RGBD images, an identity matrix is used as the initialization. For non-adjacent RGBD images, wide baseline matching is used as the initialization. In particular, the function pose_estimation computes OpenCV ORB feature to match sparse features over wide baseline images, then performs 5-point RANSAC to estimate a rough alignment, which is used as the initialization of compute_rgbd_odometry.

Multiway registration#

 60def make_posegraph_for_fragment(path_dataset, sid, eid, color_files,
 61                                depth_files, fragment_id, n_fragments,
 62                                intrinsic, with_opencv, config):
 63    o3d.utility.set_verbosity_level(o3d.utility.VerbosityLevel.Error)
 64    pose_graph = o3d.pipelines.registration.PoseGraph()
 65    trans_odometry = np.identity(4)
 66    pose_graph.nodes.append(
 67        o3d.pipelines.registration.PoseGraphNode(trans_odometry))
 68    for s in range(sid, eid):
 69        for t in range(s + 1, eid):
 70            # odometry
 71            if t == s + 1:
 72                print(
 73                    "Fragment %03d / %03d :: RGBD matching between frame : %d and %d"
 74                    % (fragment_id, n_fragments - 1, s, t))
 75                [success, trans,
 76                 info] = register_one_rgbd_pair(s, t, color_files, depth_files,
 77                                                intrinsic, with_opencv, config)
 78                trans_odometry = np.dot(trans, trans_odometry)
 79                trans_odometry_inv = np.linalg.inv(trans_odometry)
 80                pose_graph.nodes.append(
 81                    o3d.pipelines.registration.PoseGraphNode(
 82                        trans_odometry_inv))
 83                pose_graph.edges.append(
 84                    o3d.pipelines.registration.PoseGraphEdge(s - sid,
 85                                                             t - sid,
 86                                                             trans,
 87                                                             info,
 88                                                             uncertain=False))
 89
 90            # keyframe loop closure
 91            if s % config['n_keyframes_per_n_frame'] == 0 \
 92                    and t % config['n_keyframes_per_n_frame'] == 0:
 93                print(
 94                    "Fragment %03d / %03d :: RGBD matching between frame : %d and %d"
 95                    % (fragment_id, n_fragments - 1, s, t))
 96                [success, trans,
 97                 info] = register_one_rgbd_pair(s, t, color_files, depth_files,
 98                                                intrinsic, with_opencv, config)
 99                if success:
100                    pose_graph.edges.append(
101                        o3d.pipelines.registration.PoseGraphEdge(
102                            s - sid, t - sid, trans, info, uncertain=True))
103    o3d.io.write_pose_graph(
104        join(path_dataset, config["template_fragment_posegraph"] % fragment_id),
105        pose_graph)

This script uses the technique demonstrated in Multiway registration. The function make_posegraph_for_fragment builds a pose graph for multiway registration of all RGBD images in this sequence. Each graph node represents an RGBD image and its pose which transforms the geometry to the global fragment space. For efficiency, only key frames are used.

Once a pose graph is created, multiway registration is performed by calling the function optimize_posegraph_for_fragment.

34def optimize_posegraph_for_fragment(path_dataset, fragment_id, config):
35    pose_graph_name = join(path_dataset,
36                           config["template_fragment_posegraph"] % fragment_id)
37    pose_graph_optimized_name = join(
38        path_dataset,
39        config["template_fragment_posegraph_optimized"] % fragment_id)
40    run_posegraph_optimization(pose_graph_name, pose_graph_optimized_name,
41            max_correspondence_distance = config["depth_diff_max"],
42            preference_loop_closure = \
43            config["preference_loop_closure_odometry"])

This function calls global_optimization to estimate poses of the RGBD images.

Make a fragment#

108def integrate_rgb_frames_for_fragment(color_files, depth_files, fragment_id,
109                                      n_fragments, pose_graph_name, intrinsic,
110                                      config):
111    pose_graph = o3d.io.read_pose_graph(pose_graph_name)
112    volume = o3d.pipelines.integration.ScalableTSDFVolume(
113        voxel_length=config["tsdf_cubic_size"] / 512.0,
114        sdf_trunc=0.04,
115        color_type=o3d.pipelines.integration.TSDFVolumeColorType.RGB8)
116    for i in range(len(pose_graph.nodes)):
117        i_abs = fragment_id * config['n_frames_per_fragment'] + i
118        print(
119            "Fragment %03d / %03d :: integrate rgbd frame %d (%d of %d)." %
120            (fragment_id, n_fragments - 1, i_abs, i + 1, len(pose_graph.nodes)))
121        rgbd = read_rgbd_image(color_files[i_abs], depth_files[i_abs], False,
122                               config)
123        pose = pose_graph.nodes[i].pose
124        volume.integrate(rgbd, intrinsic, np.linalg.inv(pose))
125    mesh = volume.extract_triangle_mesh()
126    mesh.compute_vertex_normals()
127    return mesh

Once the poses are estimated, RGBD integration is used to reconstruct a colored fragment from each RGBD sequence.

Batch processing#

149def process_single_fragment(fragment_id, color_files, depth_files, n_files,
150                            n_fragments, config):
151    if config["path_intrinsic"]:
152        intrinsic = o3d.io.read_pinhole_camera_intrinsic(
153            config["path_intrinsic"])
154    else:
155        intrinsic = o3d.camera.PinholeCameraIntrinsic(
156            o3d.camera.PinholeCameraIntrinsicParameters.PrimeSenseDefault)
157    sid = fragment_id * config['n_frames_per_fragment']
158    eid = min(sid + config['n_frames_per_fragment'], n_files)
159
160    make_posegraph_for_fragment(config["path_dataset"], sid, eid, color_files,
161                                depth_files, fragment_id, n_fragments,
162                                intrinsic, with_opencv, config)
163    optimize_posegraph_for_fragment(config["path_dataset"], fragment_id, config)
164    make_pointcloud_for_fragment(config["path_dataset"], color_files,
165                                 depth_files, fragment_id, n_fragments,
166                                 intrinsic, config)
167
168
169def run(config):
170
171    print("making fragments from RGBD sequence.")
172    make_clean_folder(join(config["path_dataset"], config["folder_fragment"]))
173
174    [color_files, depth_files] = get_rgbd_file_lists(config["path_dataset"])
175    n_files = len(color_files)
176    n_fragments = int(
177        math.ceil(float(n_files) / config['n_frames_per_fragment']))
178
179    if config["python_multi_threading"] is True:
180        max_workers = min(max(1, multiprocessing.cpu_count() - 1), n_fragments)
181        # Prevent over allocation of open mp threads in child processes
182        os.environ['OMP_NUM_THREADS'] = '1'
183        mp_context = multiprocessing.get_context('spawn')
184        with mp_context.Pool(processes=max_workers) as pool:
185            args = [(fragment_id, color_files, depth_files, n_files,
186                     n_fragments, config) for fragment_id in range(n_fragments)]
187            pool.starmap(process_single_fragment, args)
188    else:
189        for fragment_id in range(n_fragments):
190            process_single_fragment(fragment_id, color_files, depth_files,
191                                    n_files, n_fragments, config)

The process_single_fragment function calls each individual function explained above. The run function determines the number of fragments to generate based on the number of images in the dataset and the configuration value n_frames_per_fragment. Subsequently, it invokes process_single_fragment for each of these fragments. Furthermore, it leverages multiprocessing to speed up computation of all fragments.

Results#

Fragment 000 / 013 :: RGBD matching between frame : 0 and 1
Fragment 000 / 013 :: RGBD matching between frame : 0 and 5
Fragment 000 / 013 :: RGBD matching between frame : 0 and 10
Fragment 000 / 013 :: RGBD matching between frame : 0 and 15
Fragment 000 / 013 :: RGBD matching between frame : 0 and 20
:
Fragment 000 / 013 :: RGBD matching between frame : 95 and 96
Fragment 000 / 013 :: RGBD matching between frame : 96 and 97
Fragment 000 / 013 :: RGBD matching between frame : 97 and 98
Fragment 000 / 013 :: RGBD matching between frame : 98 and 99

The following is a log from optimize_posegraph_for_fragment.

[GlobalOptimizationLM] Optimizing PoseGraph having 100 nodes and 195 edges.
Line process weight : 389.309502
[Initial     ] residual : 3.223357e+05, lambda : 1.771814e+02
[Iteration 00] residual : 1.721845e+04, valid edges : 157, time : 0.022 sec.
[Iteration 01] residual : 1.350251e+04, valid edges : 168, time : 0.017 sec.
:
[Iteration 32] residual : 9.779118e+03, valid edges : 179, time : 0.013 sec.
Current_residual - new_residual < 1.000000e-06 * current_residual
[GlobalOptimizationLM] total time : 0.519 sec.
[GlobalOptimizationLM] Optimizing PoseGraph having 100 nodes and 179 edges.
Line process weight : 398.292104
[Initial     ] residual : 5.120047e+03, lambda : 2.565362e+02
[Iteration 00] residual : 5.064539e+03, valid edges : 179, time : 0.014 sec.
[Iteration 01] residual : 5.037665e+03, valid edges : 178, time : 0.015 sec.
:
[Iteration 11] residual : 5.017307e+03, valid edges : 177, time : 0.013 sec.
Current_residual - new_residual < 1.000000e-06 * current_residual
[GlobalOptimizationLM] total time : 0.197 sec.
CompensateReferencePoseGraphNode : reference : 0

The following is a log from integrate_rgb_frames_for_fragment.

Fragment 000 / 013 :: integrate rgbd frame 0 (1 of 100).
Fragment 000 / 013 :: integrate rgbd frame 1 (2 of 100).
Fragment 000 / 013 :: integrate rgbd frame 2 (3 of 100).
:
Fragment 000 / 013 :: integrate rgbd frame 97 (98 of 100).
Fragment 000 / 013 :: integrate rgbd frame 98 (99 of 100).
Fragment 000 / 013 :: integrate rgbd frame 99 (100 of 100).

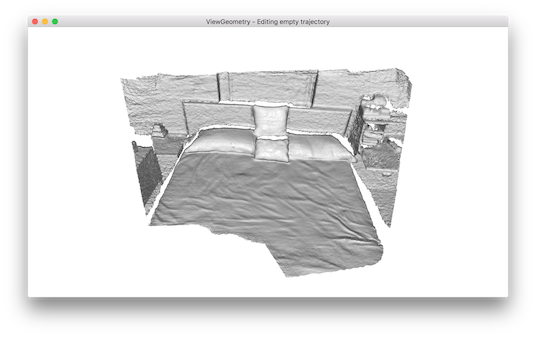

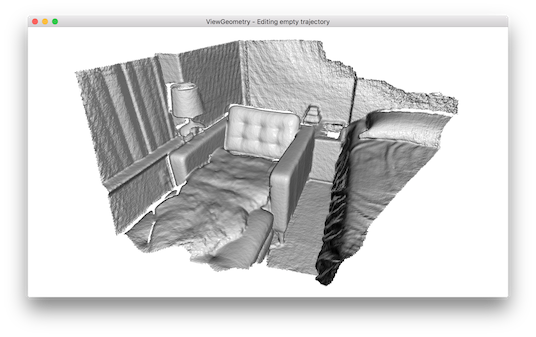

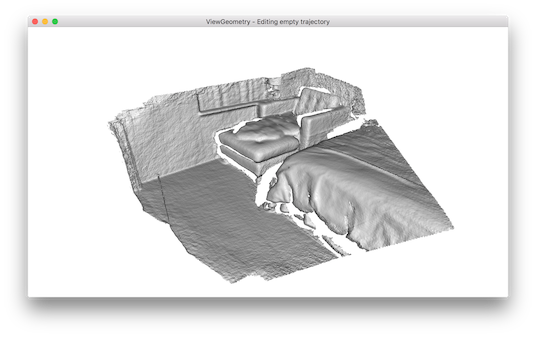

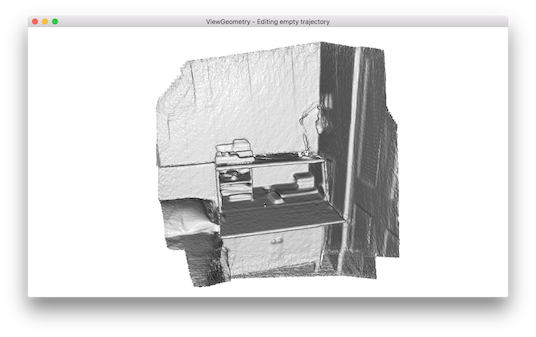

The following images show some of the fragments made by this script.

../../_images/fragment_0.png ../../_images/fragment_1.png ../../_images/fragment_2.png ../../_images/fragment_3.png
